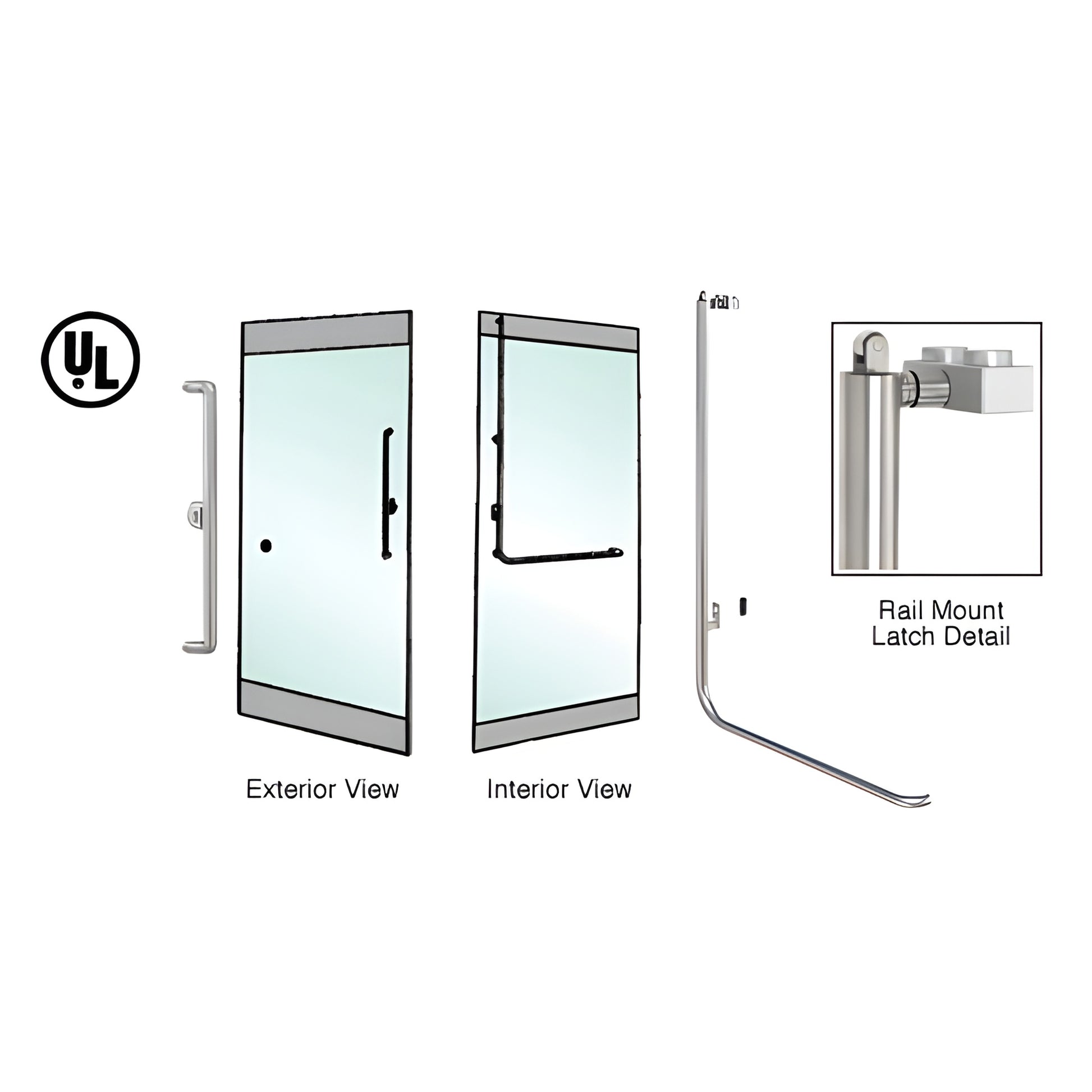

• Brushed stainless tubular panic handle PA100X4RKBS for tempered glass doors, 1-1/4 dia, left-hand reverse, exterior keyed op
1 1

CRL

CRL-Blumcraft® Brushed SS Left-Hand Reverse Rail Keyed Panic Handle

CRL-Blumcraft® Brushed SS Left-Hand Reverse Rail Keyed Panic Handle

$10,872.61 CAD
$10,872.61 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PA100X4RKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (13 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • UL, ULC, and ANSI/BHMA Certified
  • Elegant tubular design
  • Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
  • Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
  • Custom finishes available by special order
  • Custom sizes ship within one to two weeks

CRL-Blumcraft® PA100 Series — SKU: PA100X4RKBS
CRL-Blumcraft® manufactures a complete line of access control handles and panic devices designed specifically for all-glass doors. The PA100 Series panic handle is an ADA-compliant tubular panic handle for tempered glass doors that maximizes viewing area with a sleek, contemporary profile while meeting strict accessibility codes.

The interior operating mechanism is concealed within the vertical tubing and retracts the latch bolt when the interior actuation bar is pushed. Optional keyed exterior access, a dogging feature for daytime operation, and compatibility with electric strikes provide flexible secured-entry options for commercial glass doors. Custom headers with strike hardware installed are available for easier installation.

Key differentiators:
  • ADA-compliant tubular panic handle for 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors
  • Concealed vertical-tube mechanism for a clean glass-door appearance
  • Dogging feature for locking in the open position during business hours
  • Compatible with optional keyed access devices and electric strikes for remote/keyless entry
  • Multiple factory finishes plus custom finishes and sizes by special order
For complete product details and the latest catalog pages, see our CRL-Blumcraft Access Handle catalog here or contact CRL Technical Sales from the Contact Us page.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
