CRL-Blumcraft Brushed Stainless Left-Hand Keyed Panic Handle Glass
CRL-Blumcraft Brushed Stainless Left-Hand Keyed Panic Handle Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PA320JS4GKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Application
All-Glass Door Mount
Diameter
1-1/4 in. (32 mm)
Door Thickness
1/2 in. (13 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Material
Stainless Steel (Alloy 304)
Overview
- Features curved crash bar ends
- Eliminates alignment issues
- Simplifies and expedites installation
- Mounts onto monolithic and 1" insulating glass
- Tested to ANSI/BHMA Grade 1 standards

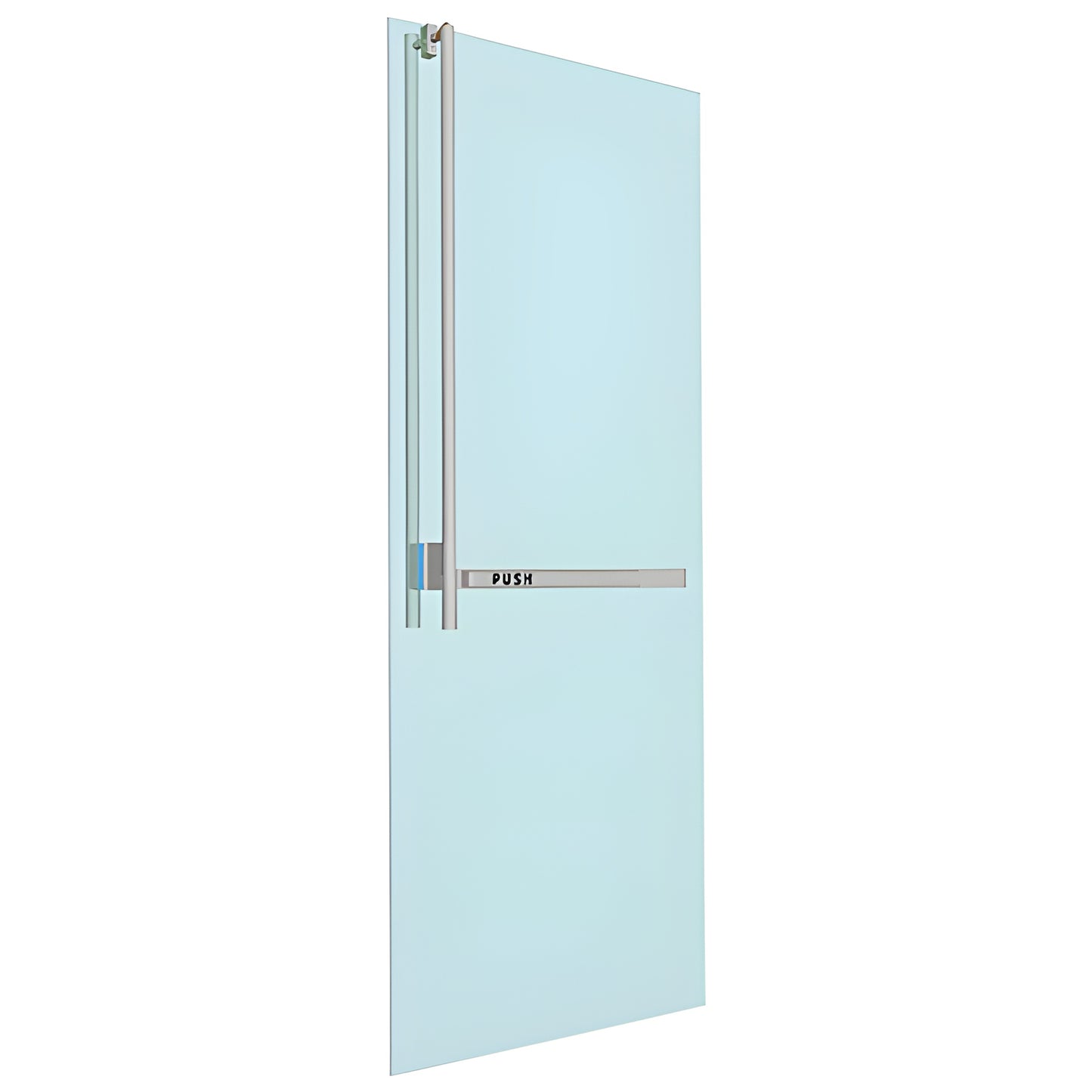

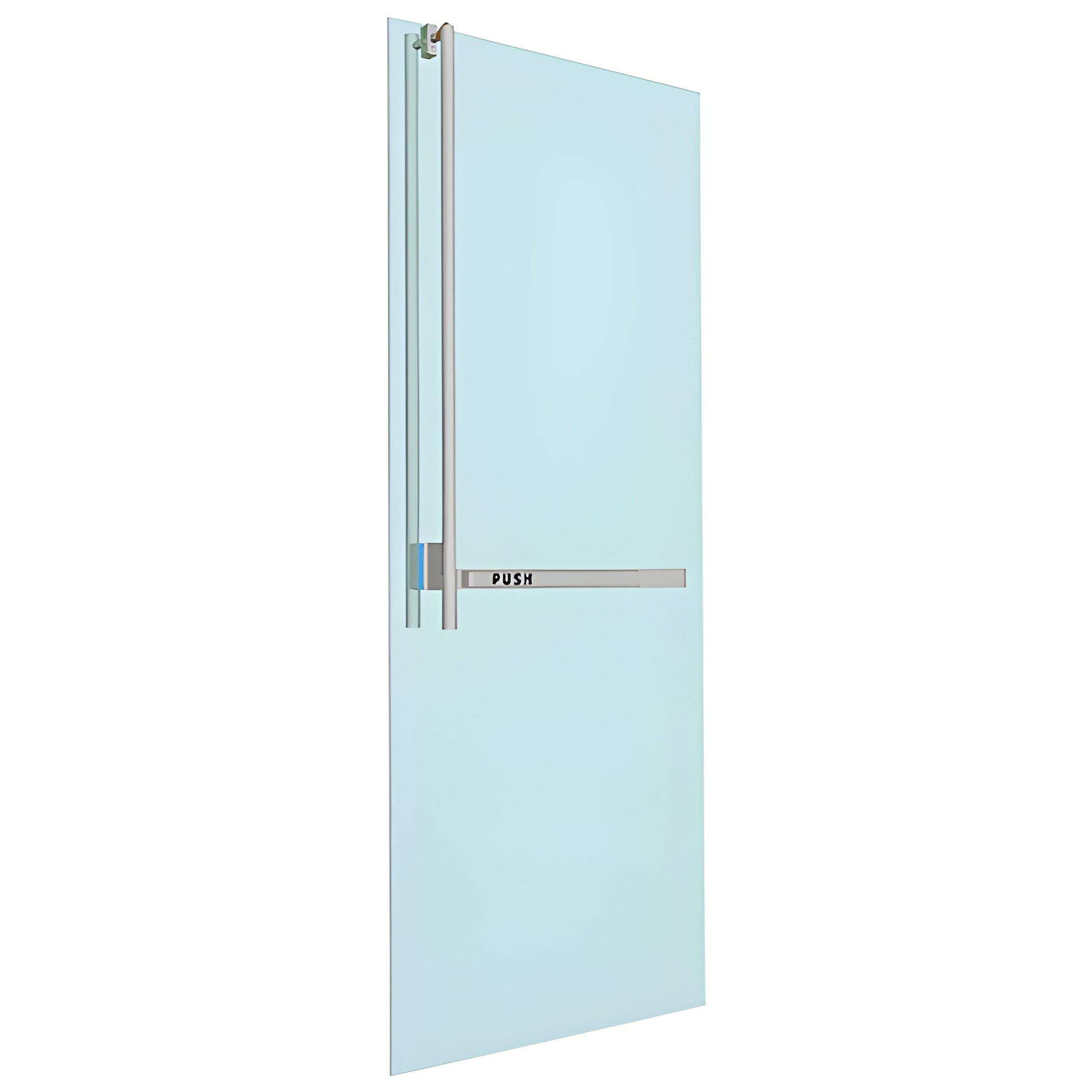

The Blumcraft PA-320 Panic Device (SKU: PA320JS4GKBS) is a 2-piece panic handle system designed for glass doors and thermal doors. Its independent, ultra-narrow crash bar securely attaches to a slim vertical panic component to achieve short ladder pull aesthetics on both interior and exterior glass doors. Ideal as a panic device for glass doors and a 2-piece panic handle for insulating glass, the PA-320 combines sleek appearance with high-performance security.
The operating mechanism is concealed within the vertical tubing and retracts the latch bolt when the interior actuation bar is pressed. Optional features include an exterior keyed access device, a special dogging feature to keep doors unlocked during business hours, and compatibility with electronic strikes for multiple secured-entry configurations.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the PA-320 Panic Device (SKU: PA320JS4GKBS) today for a Grade 1 panic solution for glass and insulating glass doors.
Specifications
CAD Drawings - pdf
