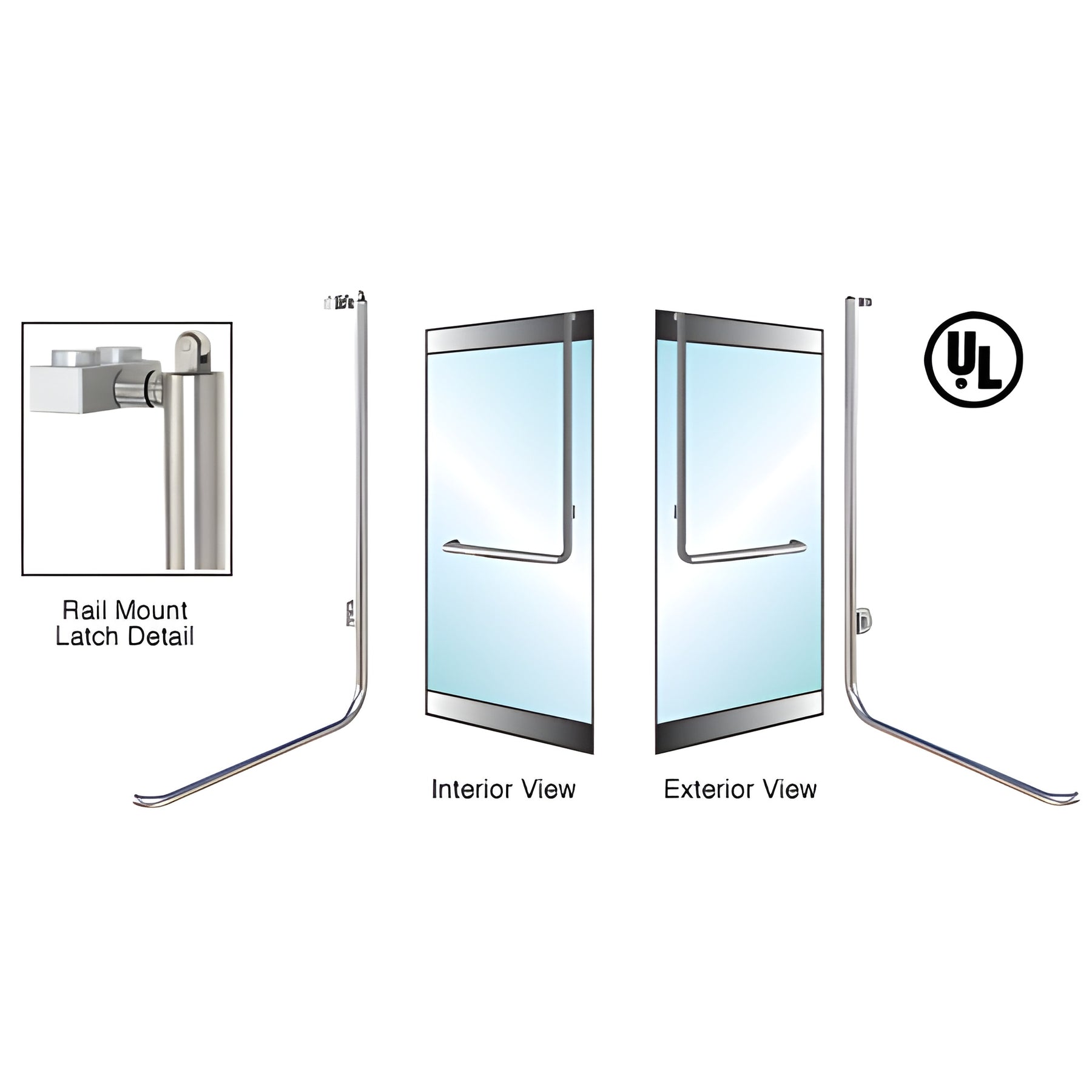

CRL-Blumcraft Keyed D-Pull Panic Handle RH Rail-Mount 3/4in Glass

• For 3/4" (19 mm) tempered glass doors — ideal replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and compatible with electric strike
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle delivers a contemporary, maximum-view design for 3/4" (19 mm) tempered glass doors. Suitable for single or double door installations, these panic handles are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device in the open position) is simple with a slide knob. A door stop/strike must be ordered separately. Threshold strike plate available for PA110 Series. Custom header available with your choice of pre-installed hardware.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 3/4" (19 mm)

Glass Fabrication:

• Varies — please contact CRL Technical Sales for fabrication details

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.
