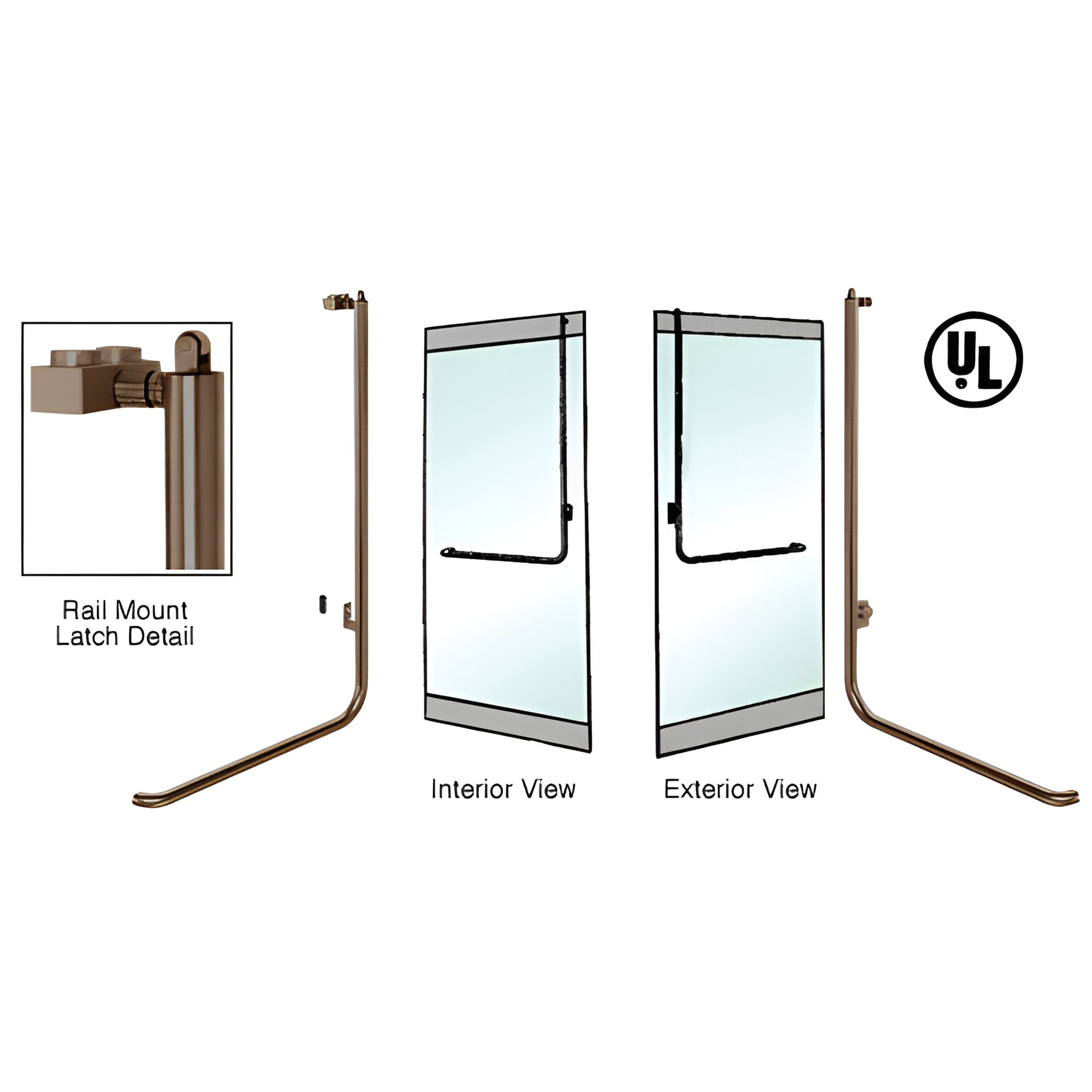

CRL-Blumcraft® Oil-Rubbed Bronze Keyed D Panic Handle 3/4" Glass RH

• For 3/4" (19 mm) tempered glass doors — also fits 1/2" (12 mm) glass; ideal as a replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: UL305

This CRL-Blumcraft® Glass Door Panic Handle is engineered for maximum view and a contemporary appearance on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Install on single or double doors; handles are ready-to-install for 36" to 48" (914 mm to 1.22 m) wide doors and 90" to 102" (2.29 to 2.59 m) high without modification. "Dogging" (locking the device open) operates with an easy slide knob. A separate Door Stop/Strike must be ordered. Threshold Strike Plate available for PA110 Series. Custom header options include pre-installed hardware. SKU: 3P100D3RK0RB.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 1/2" or 3/4" (12 or 19 mm)

Glass Fabrication:

• Varies — please contact CRL Technical Sales for project-specific glass fabrication guidance

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 Series
• Exterior handle option
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

Contact CRL Technical Sales Department for specification details and pricing on these handles for all-glass entrance doors.

Product Warning:

Products manufactured by CRL with an oil rubbed bronze finish are inspected prior to packaging and shipping. Within two days of receipt, open the package, remove protective wrap, and inspect the finish. Report any damage or irregularity to CRL immediately — damages reported later
