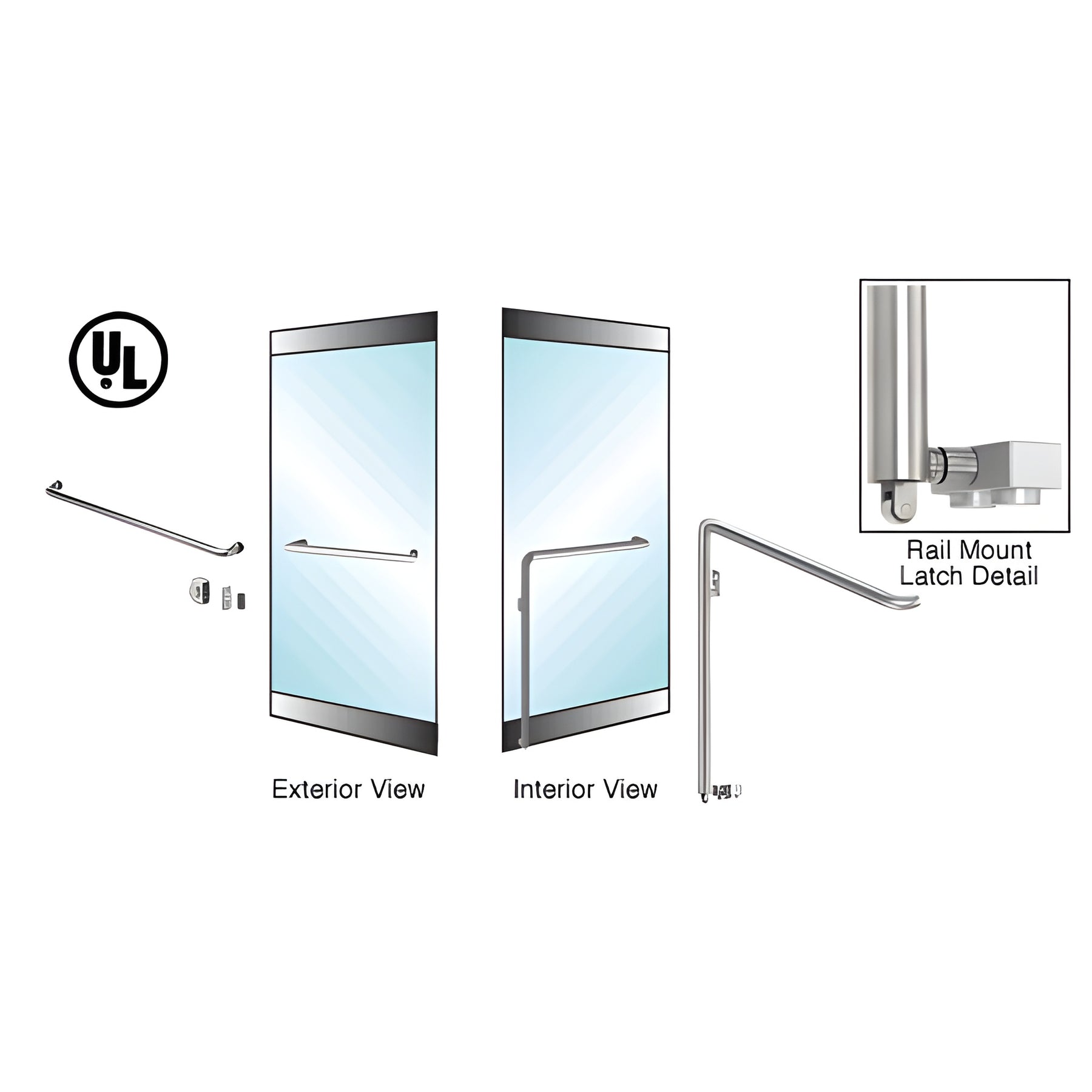

CRL-Blumcraft LH Keyed Rail-Mount Panic Handle Brushed SS 3/4" Glass

• For 3/4" (19 mm) tempered glass doors — ideal glass door panic handle and replacement panic hardware for commercial storefronts
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL Glass Door Panic Handle (SKU: 3P110A4RKBS) is engineered to maximize view and provide a contemporary aesthetic for 3/4" (19 mm) tempered glass doors. Suitable for single or double doors, the handle is ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device in the open position) is simple with a slide knob. A door stop/strike must be ordered separately; a threshold strike plate is available for the PA110 Series. Custom headers can be supplied with pre-installed hardware upon request.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 3/4" (19 mm)

Glass Fabrication:

• Varies — please contact CRL Technical Sales

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.

Stainless Steel Advisory:
