CRL-Blumcraft LH Rail-Mount Keyed Panic Handle 5/8in Glass Brushed SS

• For 5/8" (16 mm) tempered glass doors — replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: UL305

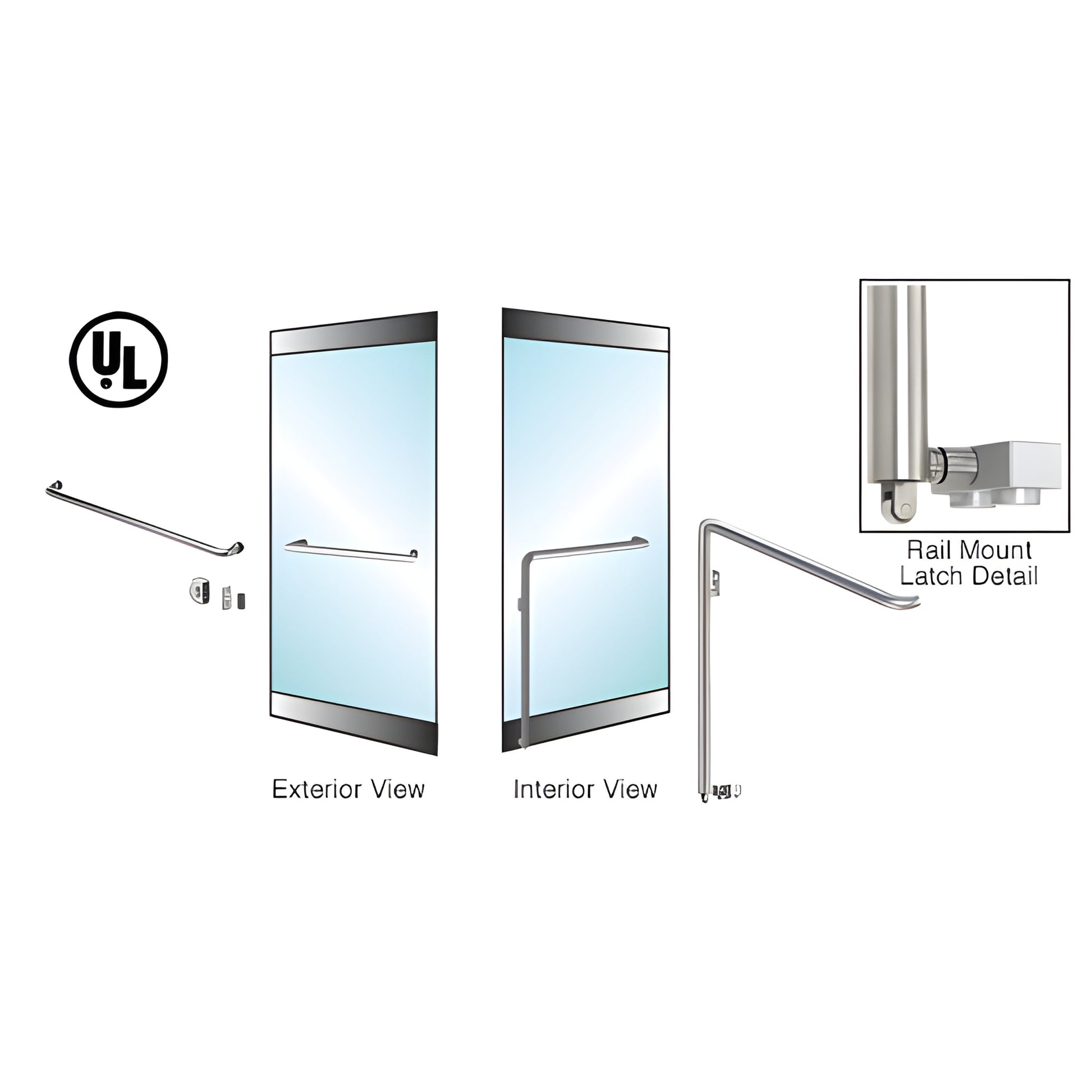

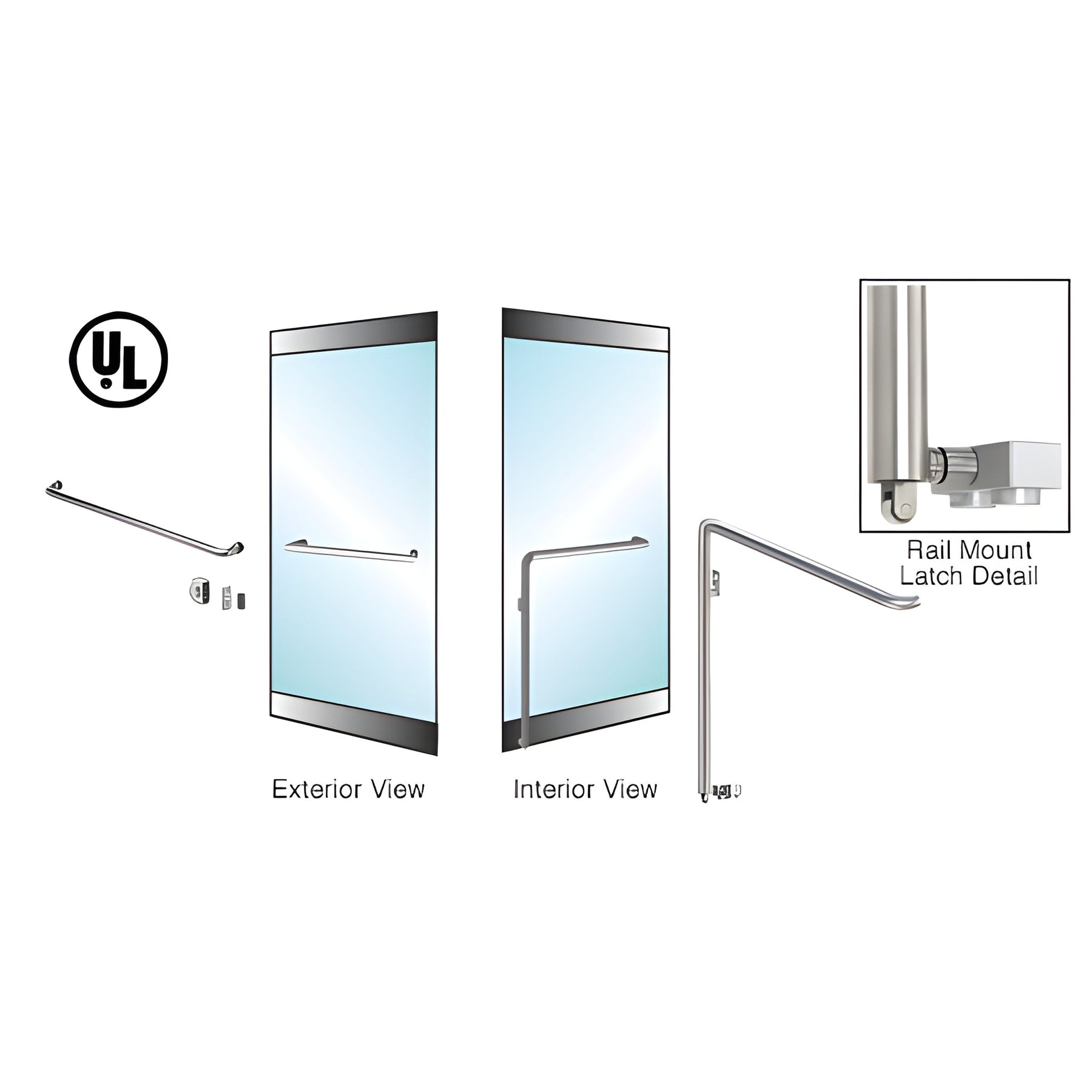

This CRL Glass Door Panic Handle (SKU: 5P110A4RKBS) is engineered to maximize sightlines and deliver a contemporary aesthetic for 5/8" (16 mm) tempered glass doors. Suitable for single or double door installations, the ready-to-install handle fits 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device open) is simple with a slide knob. A separate Door Stop/Strike is required; a Threshold Strike Plate is available for the PA110 Series. Custom headers can be supplied with pre-installed hardware.

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

• 5/8" (16 mm)

• Please contact CRL Technical Sales for glass fabrication options

• PA100 or PA110 Series
• Right or Left hand (as viewed from the outside)
• Rail Mount (for doors with full-length rails) or Glass Mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to packaging and shipping. Open the package and remove protective wrap within two days of receipt to inspect the finish and report any damage or irregularity to CRL immediately. CRL is not liable for finish damage reported after this period.
