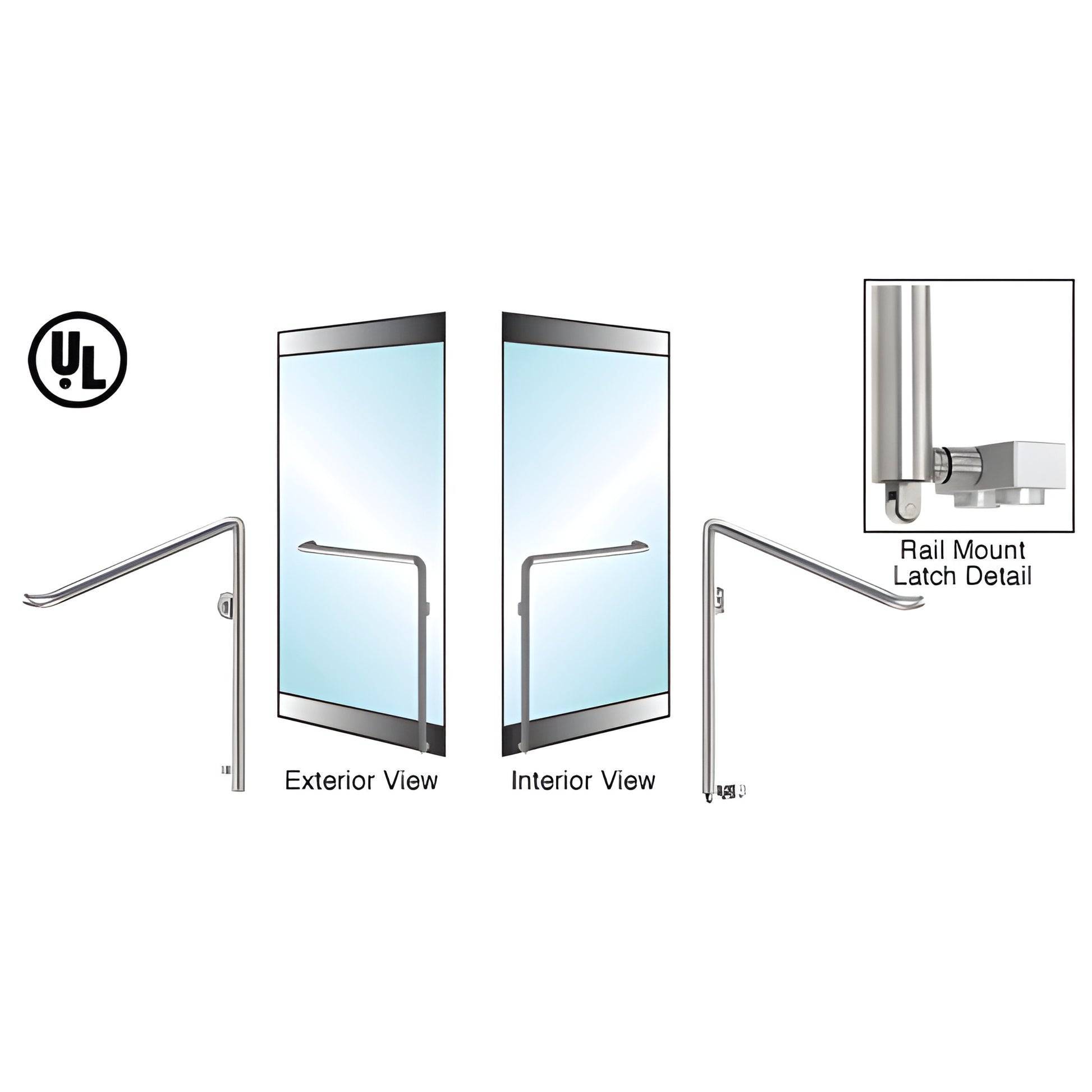

CRL-Blumcraft® Brushed SS LH Rail-Mount Keyed Panic Handle 3/4" Glass

• For 3/4" (19 mm) tempered glass doors — ideal as a replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P110C4RKBS) is engineered for maximum view and a contemporary aesthetic on 3/4" (19 mm) tempered glass doors. Suitable for single or double door installations, the handles are ready-to-install for door widths 36" to 48" (914 mm to 1.22 m) and heights 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device in the open position) is simple with a slide knob. A separate Door Stop/Strike is required. Threshold strike plate available for PA110 series. Custom header options are available with your choice of pre-installed hardware. These panic handles are a top choice for commercial glass door panic hardware and replacement panic devices.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 3/4" (19 mm)

Glass Fabrication:

• Varies — please contact CRL Technical Sales for fabrication options

ORDERING OPTIONS
When ordering panic handles you must specify:

• PA100 or PA110 series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 series only)

For more information contact CRL Commercial Products Technical Sales Department.
