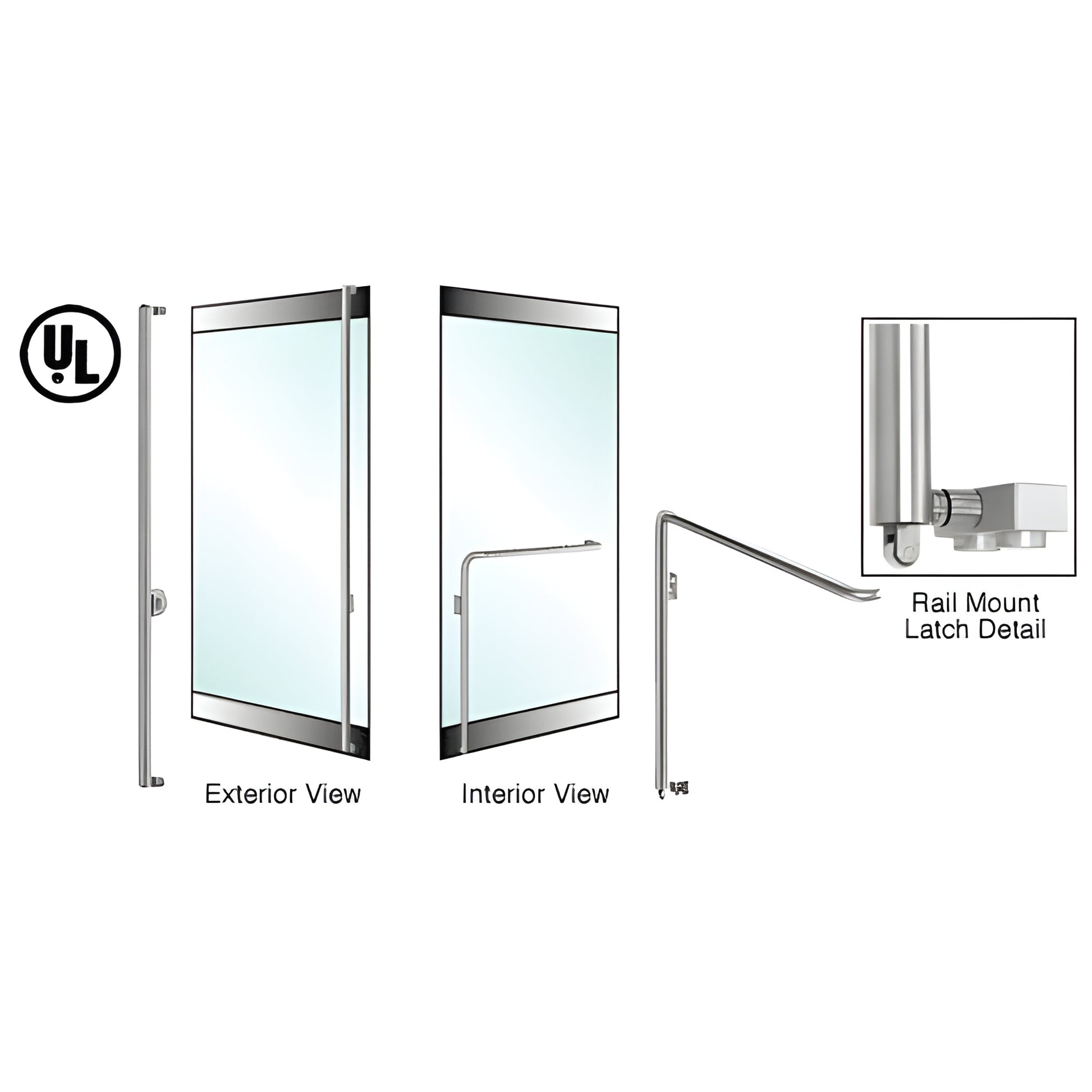

• Brushed stainless 1-1/4 in rail-mount panic handle for 3/4 in tempered glass doors, exterior and interior views.
1 1

CRL

CRL-Blumcraft® Brushed SS LH Keyed Panic Handle Rail Mount 3/4" Glass

CRL-Blumcraft® Brushed SS LH Keyed Panic Handle Rail Mount 3/4" Glass

$12,062.36 CAD
$12,062.36 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P110F4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)

Overview

  • Fits 3/4" (19 mm) tempered glass doors — ideal glass door panic handle and replacement panic hardware
  • Custom sizes ship within 1–2 weeks
  • Optional keyed access and electric strike available
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

CRL-Blumcraft® Glass Door Panic Handle — contemporary, low-profile panic handle engineered for maximum view on 3/4" (19 mm) tempered glass doors. Suitable for single or double doors and designed for ready installation on 36"–48" (914–1,220 mm) wide doors with heights from 90"–102" (2.29–2.59 m) without modification. Easy dogging (locking open) via a slide knob. Threshold Strike Plate available for PA110 series. Door Stop/Strike ordered separately. Custom headers available with pre-installed hardware.

SKU: 3P110F4RKBS


SPECIFICATIONS
  • Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
  • Glass Thickness: 3/4" (19 mm)
  • Glass Fabrication: Varies — please contact CRL Technical Sales

ORDERING OPTIONS

When ordering, specify:

  • PA100 or PA110 Series
  • Right or Left hand (as viewed from the outside)
  • Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Brushed or polished stainless, satin or polished brass finish
  • Optional threshold strike plate (PA110 series only)

For detailed assistance and custom glass door panic handle configurations, contact the CRL Commercial Products Technical Sales Department.

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, please request this from CRL Customer Service. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

Why choose this panic handle: ANSI/BHMA Grade 1 certified, heavy-duty 304 stainless or 385 bronze tubing, easy dogging for emergency egress, and multiple
