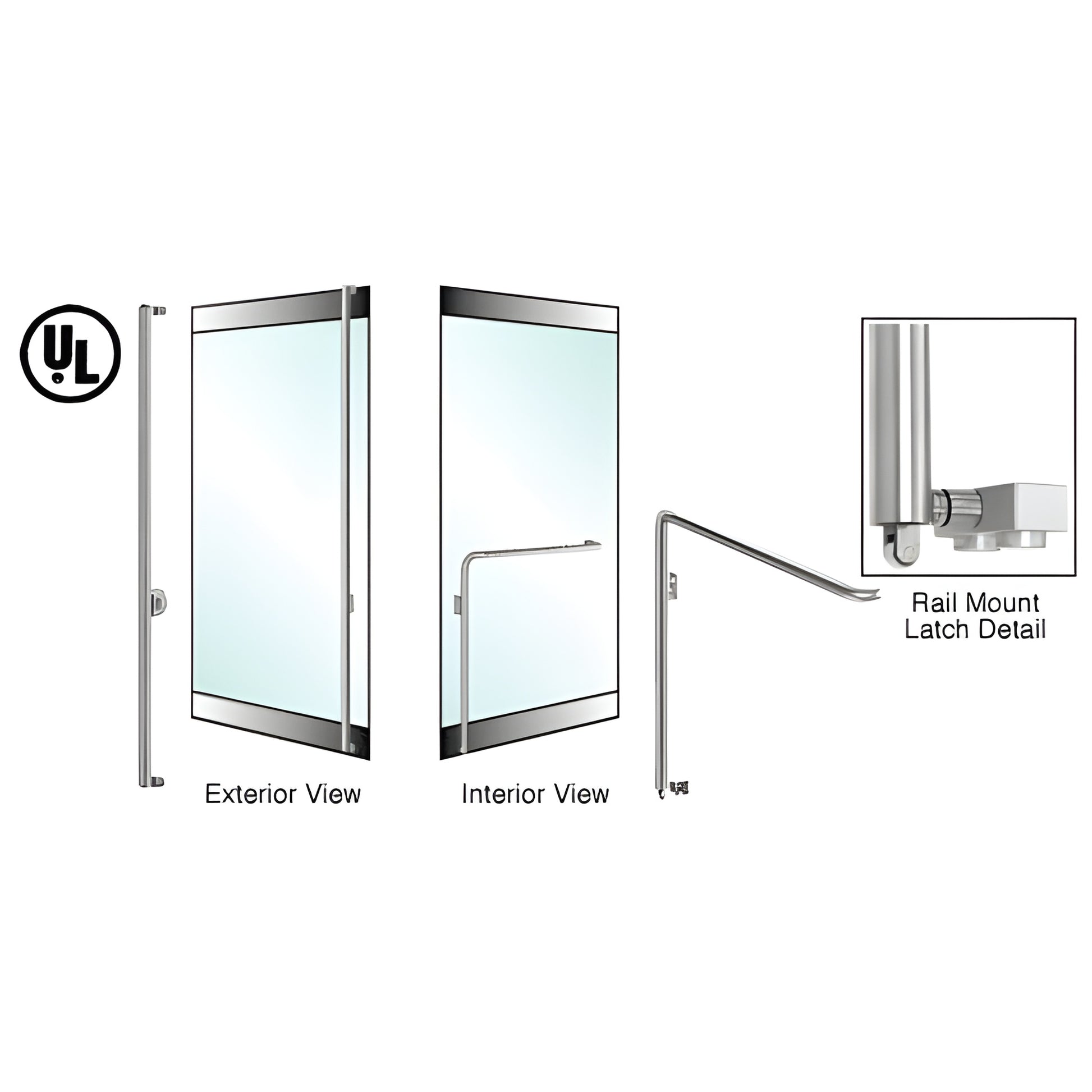

CRL-Blumcraft® Left-Hand Keyed Panic Handle Brushed SS for 5/8" Glass
CRL-Blumcraft® Left-Hand Keyed Panic Handle Brushed SS for 5/8" Glass
Regular price
$12,397.97 CAD
Regular price
Sale price
$12,397.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 5P110F4RKBS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Brushed Stainless Steel
Glazing Thickness
5/8 in. (16 mm)
Handing
Left Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)
Overview
- UL305, ULC/5132-93 and ANSI/BHMA A156.3-2001, Grade 1 certified panic hardware
- Elegant tubular design for commercial tempered glass doors
- Wide selection of exterior fixed handles for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
- Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
- Custom finishes available by special order; custom sizes ship within one to two weeks
CRL-Blumcraft® manufactures a complete line of access control handles and panic devices engineered for all-glass door applications. Our product family includes Panic Devices, Deadbolt Handles, Electronic Egress Control Handles, and matching Dummy Handles to maintain a consistent appearance without extra cost. SKU: 5P110F4RKBS.
The operating mechanism is concealed within the vertical tubing of our panic handles and retracts the latch bolt when the interior actuation bar is pushed. Optional keyed exterior access devices, a special dogging feature for maintaining unlocked entry during business hours, and electronic strikes provide flexible, secure entry options for storefronts and commercial glass door installations.
When ADA codes are not a concern, the PA110 Series offers the same sleek styling as the PA100 Series but extends across the door and latches at the floor or threshold. Both series feature the dogging option and strikes for threshold or no-threshold applications, ensuring accurate, secure latching every time.
All PA100 and PA110 Panic Handles undergo rigorous testing at our manufacturing facility to ensure long-term dependability. Most importantly, no other panic hardware of this type can claim UL305, ULC/5132-93, and ANSI/BHMA A156.3-2001, Grade 1 certification—making CRL panic handles a top choice for high-security commercial glass doors. For additional information, contact our Technical Sales Department.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Shop now for certified panic hardware for tempered glass doors or contact us for custom finishes and sizing.
