Product Details
- For 3/4" (19 mm) Tempered Glass Doors
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB130 Series Can Be Used With an Electric Strike
- Custom Sizes Ship Within One to Two Weeks
- Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order Certification: ANSI/BHMA A156.16 Grade 1
- Certification: ANSI/BHMA A156.16 Grade 1
- Custom Finishes Available by Special Order
- Custom Sizes Ship within One to Two Weeks
- 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick) Glass Thickness:
- 3/4" (19 mm) Glass Fabrication: Varies
- Please contact CRL Technical Sales ORDERING OPTIONS When ordering Deadbolt Handles you must specify:
- Exterior Handle Option (
- Right or Left Hand (as Viewed from the Outside)
- Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
- Single or Double Door Strike (for Single Acting Doors)
- Brushed or Polished Stainless, Satin or Polished Brass Finish For more information contact CRL Commercial Products Technical Sales Department. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

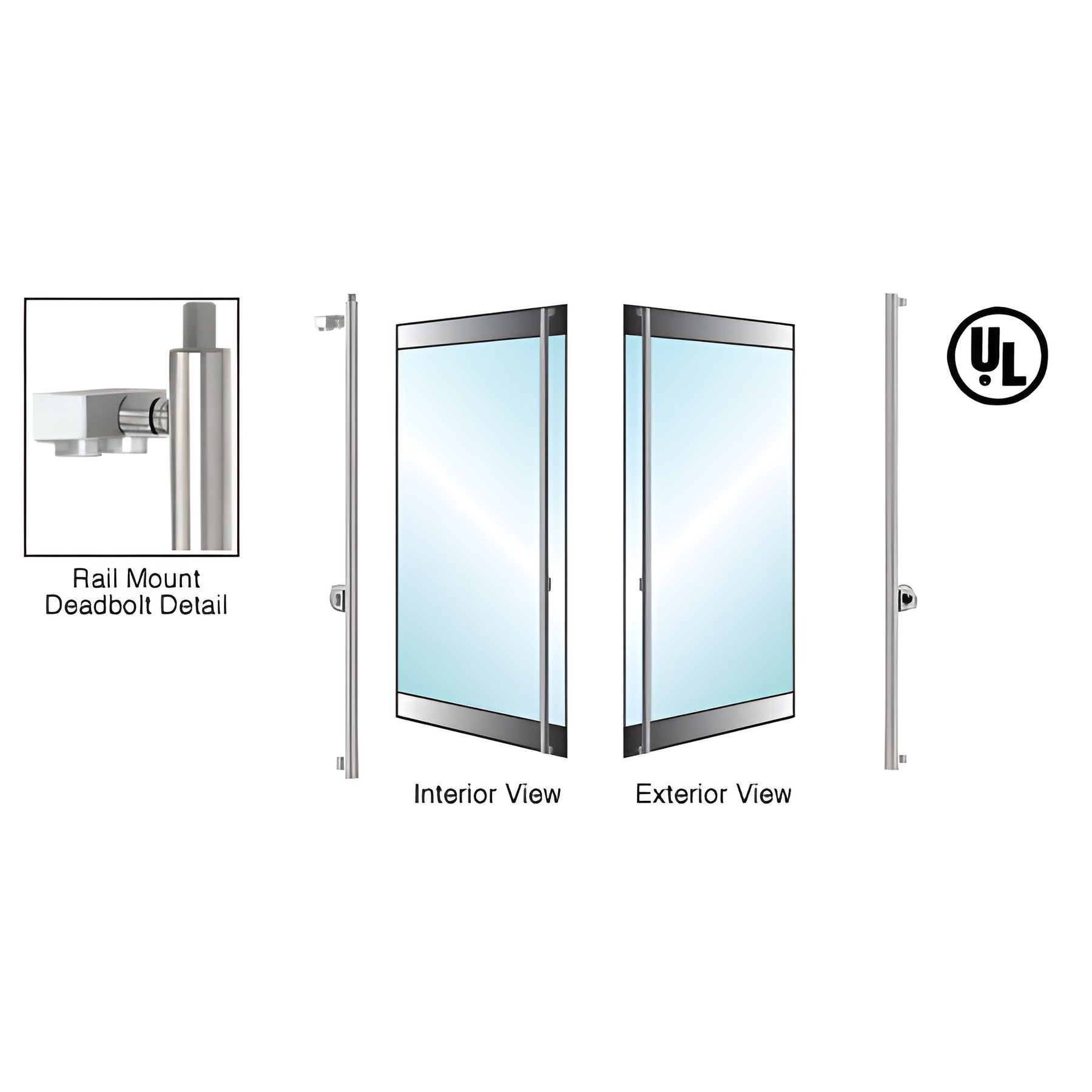

This CRL-Blumcraft® Glass Door Deadbolt Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. Keyed Lock standard on interior and exterior side of handle. Optional thumbturn to replace keyed lock. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Deadbolt Handles you must specify:
Exterior Handle Option (Right or Left Hand (as Viewed from the Outside)
Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
Single or Double Door Strike (for Single Acting Doors)
Brushed or Polished Stainless, Satin or Polished Brass Finish
For more information contact CRL Commercial Products Technical Sales Department.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
