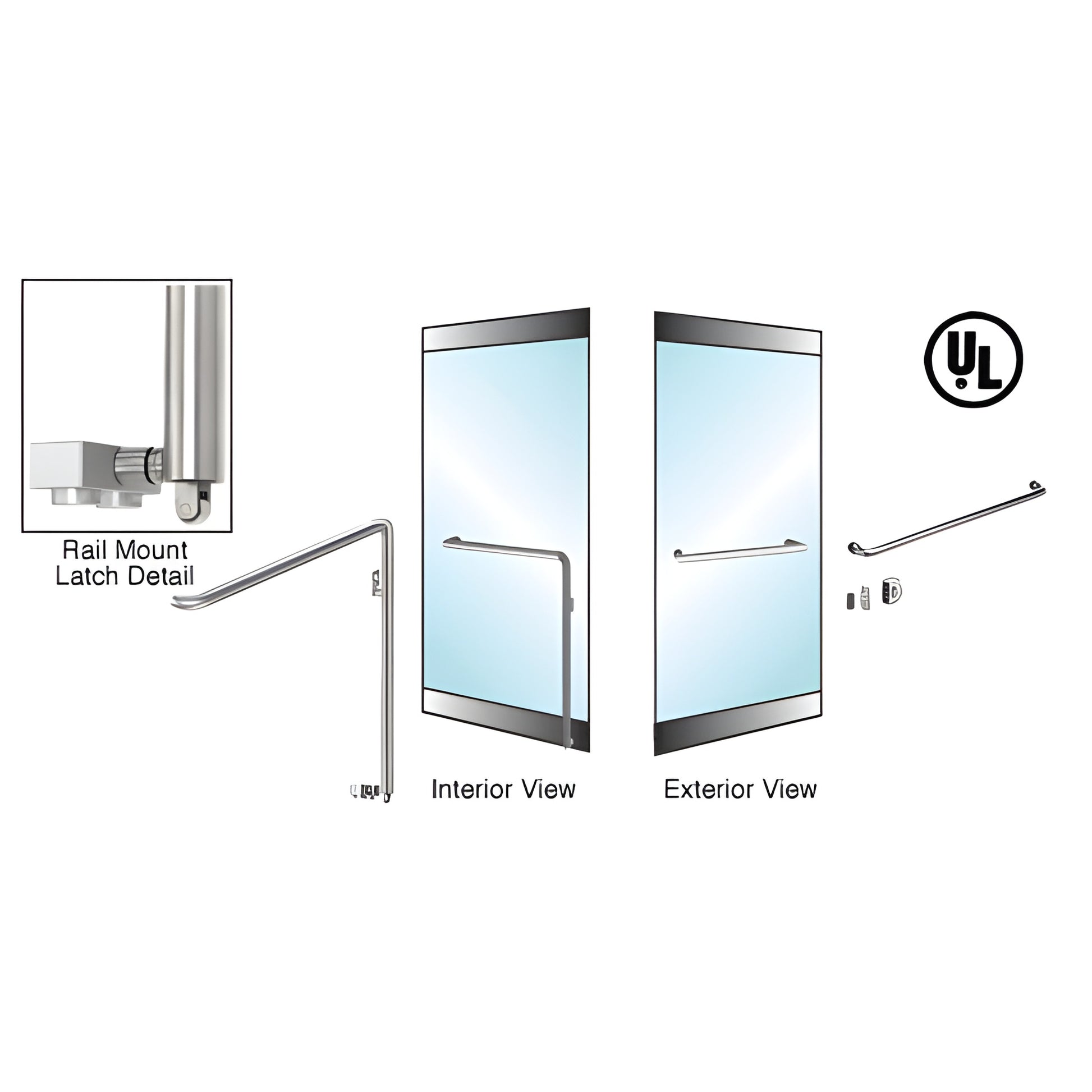

CRL-Blumcraft Brushed SS Keyed Panic Handle RH Rail-Mt 3/4-in Glass

• For 3/4" (19 mm) tempered glass doors; fits single or double commercial glass doors
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

This CRL Glass Door Panic Handle (SKU: 3P110A3RKBS) provides maximum view and a contemporary appearance for 3/4" (19 mm) tempered glass doors. Ready-to-install for 36" to 48" (914 mm to 1.22 m) wide doors and 90" to 102" (2.29 to 2.59 m) high without modification. Install on single or double doors. "Dogging" (locking the device open) is simple with a slide knob. A door stop/strike is sold separately. Threshold strike plate available for PA110 Series. Custom header options with pre-installed hardware are available.


SPECIFICATIONS
Material:

• 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)

Glass Thickness:

• 3/4" (19 mm)

Glass Fabrication: Varies — please contact CRL Technical Sales for glass fabrication options and templates.

ORDERING OPTIONS
When ordering panic handles specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Brushed or polished stainless, satin or polished brass finish
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.

Stainless Steel Advisory:

Why choose this panic handle: ANSI/BHMA Grade 1 certified
