CRL-Blumcraft Stainless Right Rail-Mount Keyed Panic Handle 3/4 Glass

• UL, ULC, and ANSI/BHMA Certified
• Elegant tubular design for contemporary glass doors
• Fits 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors
• Finishes: Polished and Brushed Stainless, Satin and Polished Brass, Oil Rubbed Bronze
• Optional keyed access and electric strike
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

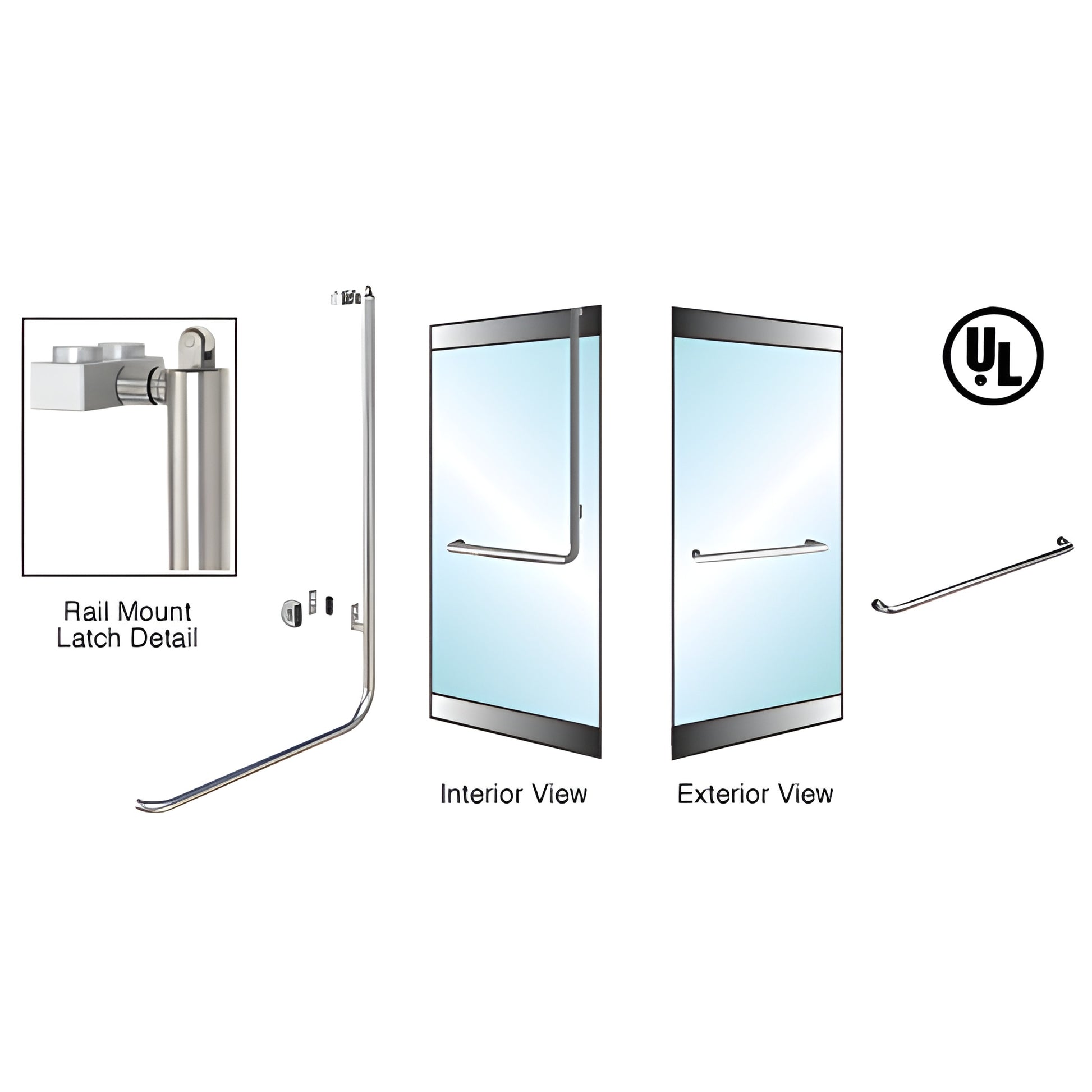

This CRL-Blumcraft® Glass Door Panic Handle is engineered for maximum view and a clean contemporary look on 3/4" (19 mm) tempered glass doors. Suitable for single or double doors, the handles are ready-to-install for door widths 36" to 48" (914 mm to 1.22 m) and heights 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device in the open position) operates with a simple slide knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom header options available with pre-installed hardware.

SPECIFICATIONS

• Material: 1-1/4" (32 mm) diameter 385 Bronze or 304 Stainless Steel tubing (2 mm wall)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales

ORDERING OPTIONS
When ordering panic handles specify:

• PA100 or PA110 Series
• Right or Left hand (as viewed from the outside)
• Rail Mount (for doors with full-length rails) or Glass Mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Finish: Brushed or Polished Stainless, Satin or Polished Brass
• Optional Threshold Strike Plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.
