CRL-Blumcraft Brushed SS RH Rail-Mount Keyed Panic Handle 5/8" Glass

• UL, ULC, and ANSI/BHMA Certified
• Elegant tubular design
• Fits 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
• Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for "all-glass" doors. Our product family includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across a project while reducing costs.

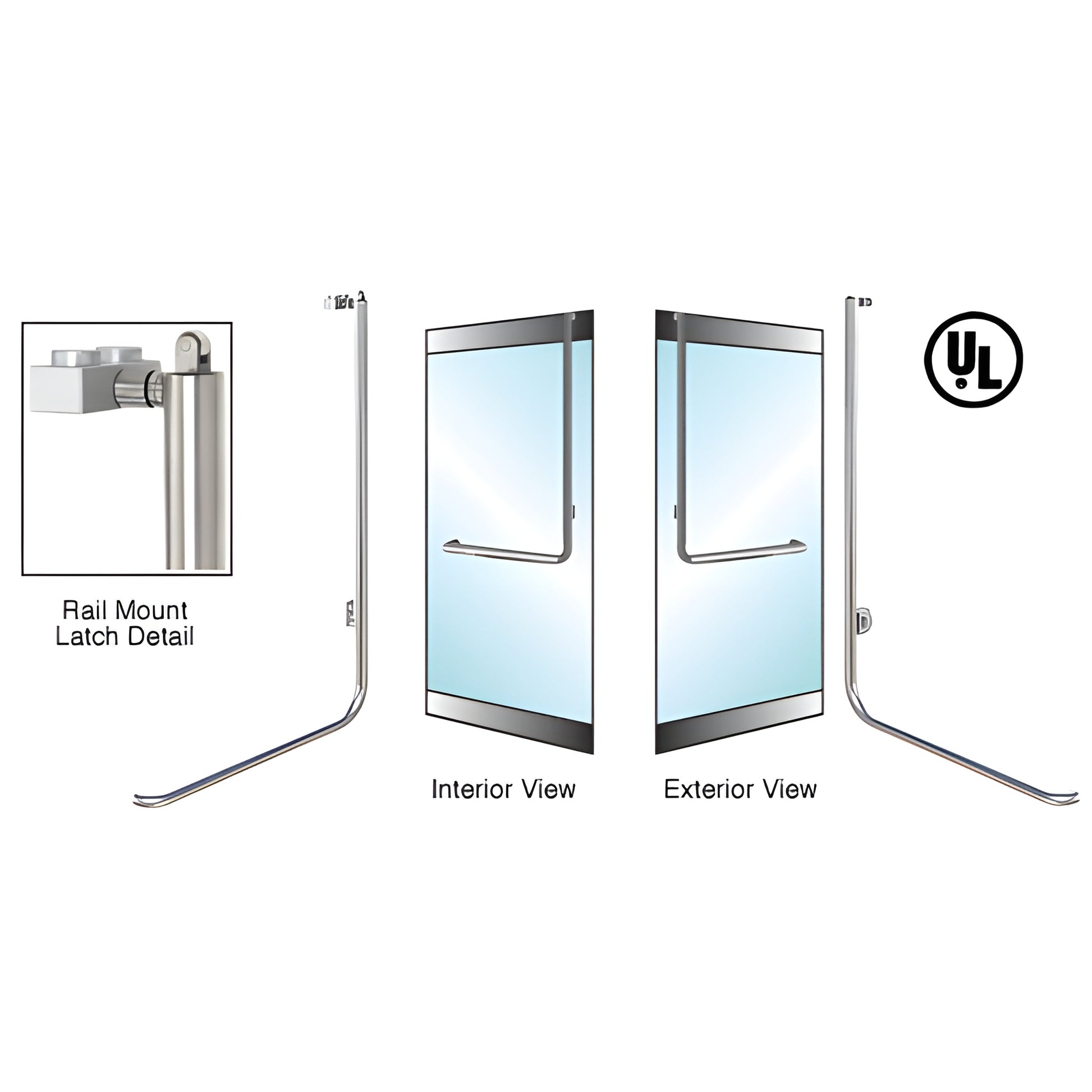

The PA100 Series panic handles are a popular ADA-compliant solution for glass door panic hardware. Their slender 1-1/4" (32 mm) interior tube runs across the door and turns upward to the top rail, keeping the lower door area clear to satisfy ADA requirements while maximizing viewing area and a contemporary aesthetic.

Key features and options:

• Concealed operating mechanism within the vertical tubing retracts the latch when the interior actuation bar is pushed
• Optional exterior keyed access device for controlled entry
• Dogging feature locks the device in the open position for business hours
• Compatible with electric strikes for remote keyless entry; custom headers available with strike hardware pre-installed

This product fits tempered glass doors from 1/2" to 3/4" (12–19 mm) and is offered in multiple finishes. SKU: 5P100D3RKBS.

Stainless Steel Advisory:

For technical details, custom finish inquiries, or to order the PA100 Series panic handle for tempered glass doors (SKU 5P100D3RKBS), contact CRL Technical Sales or place your order today.
