CRL-Blumcraft® Brushed SS RH Reverse-Rail Keyed Panic Exit 3/4" Glass

• Fits 3/4" (19 mm) tempered glass doors — ideal glass door panic handle and replacement panic hardware for commercial entrances
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

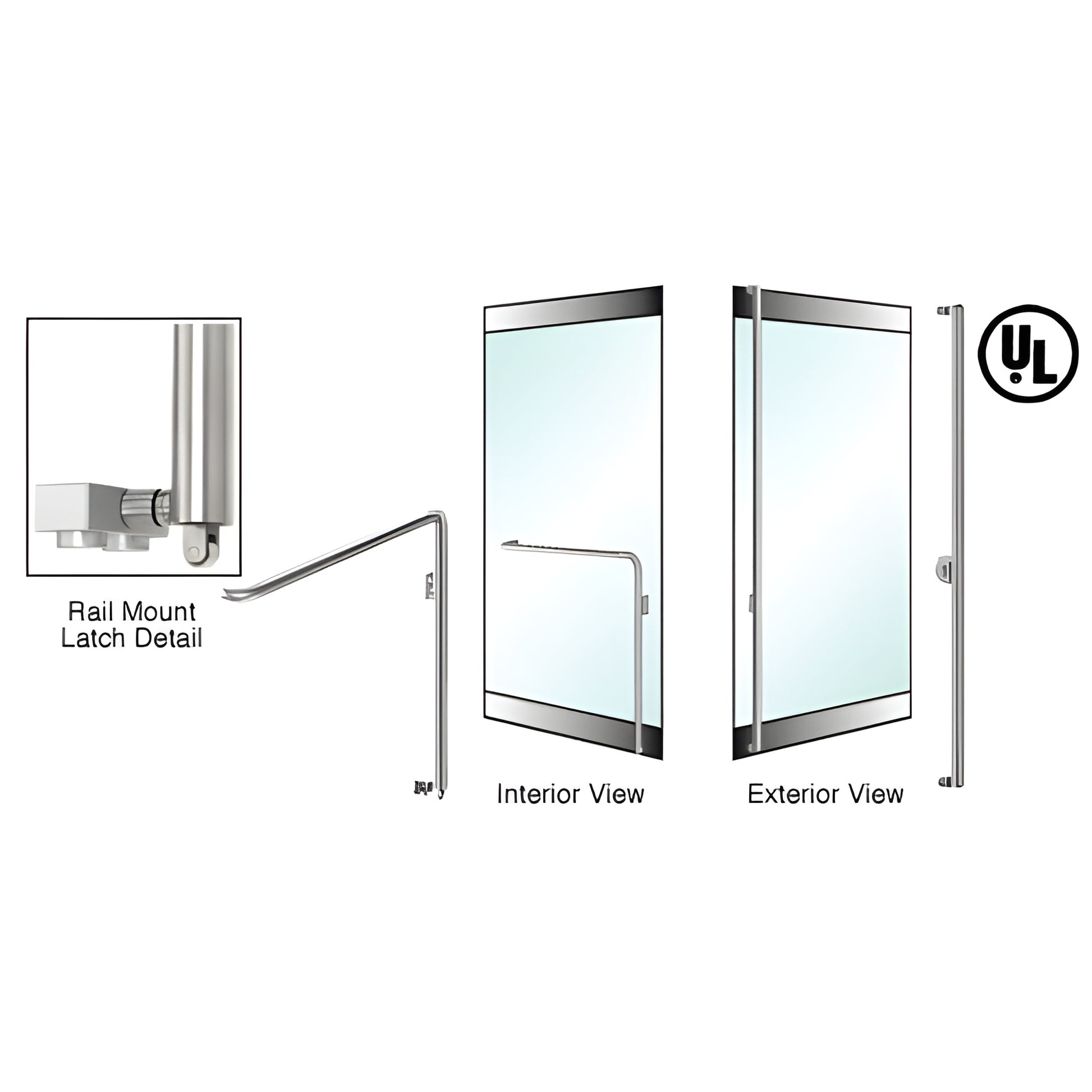

This CRL-Blumcraft® Glass Door Panic Handle provides a contemporary, maximum-view design for 3/4" (19 mm) tempered glass doors. Suitable for single or double doors, the handles ship ready-to-install for 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. Dogging (locking the device in the open position) is simple with a slide knob. A door stop/strike must be ordered separately. Threshold strike plate available for PA110 Series. Custom header available with pre-installed hardware.

SKU: 3P110F3RKBS

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales for details

When ordering panic handles specify:

• PA100 or PA110 Series
• Right or Left hand (as viewed from the outside)
• Rail mount (for doors with full length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Finishes: brushed or polished stainless, satin or polished brass
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.

Stainless Steel Advisory:
