Product Details
- For 3/4" (19 mm) Interior and Exterior Tempered Glass Doors
- Custom Sizes Ship within One to Two Weeks Certification: UL Recognized Component UL294
- Certification: UL Recognized Component UL294
- 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick) Glass Thickness:
- 1/2" or 3/4" (12 or 19 mm) Glass Fabrication: Varies
- Please contact CRL Technical Sales ORDERING OPTIONS When ordering Electronic Egress Control Handles you must specify:
- EG100 or EG110 Series
- Exterior Handle Option
- Right or Left Hand (as Viewed from the Outside)
- Standard Retainer Plate or Optional Keyed Access Device
- Brushed or Polished Stainless, Satin or Polished Brass Finish Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors. Product Warning: Comes standard without Keyed Access Device. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

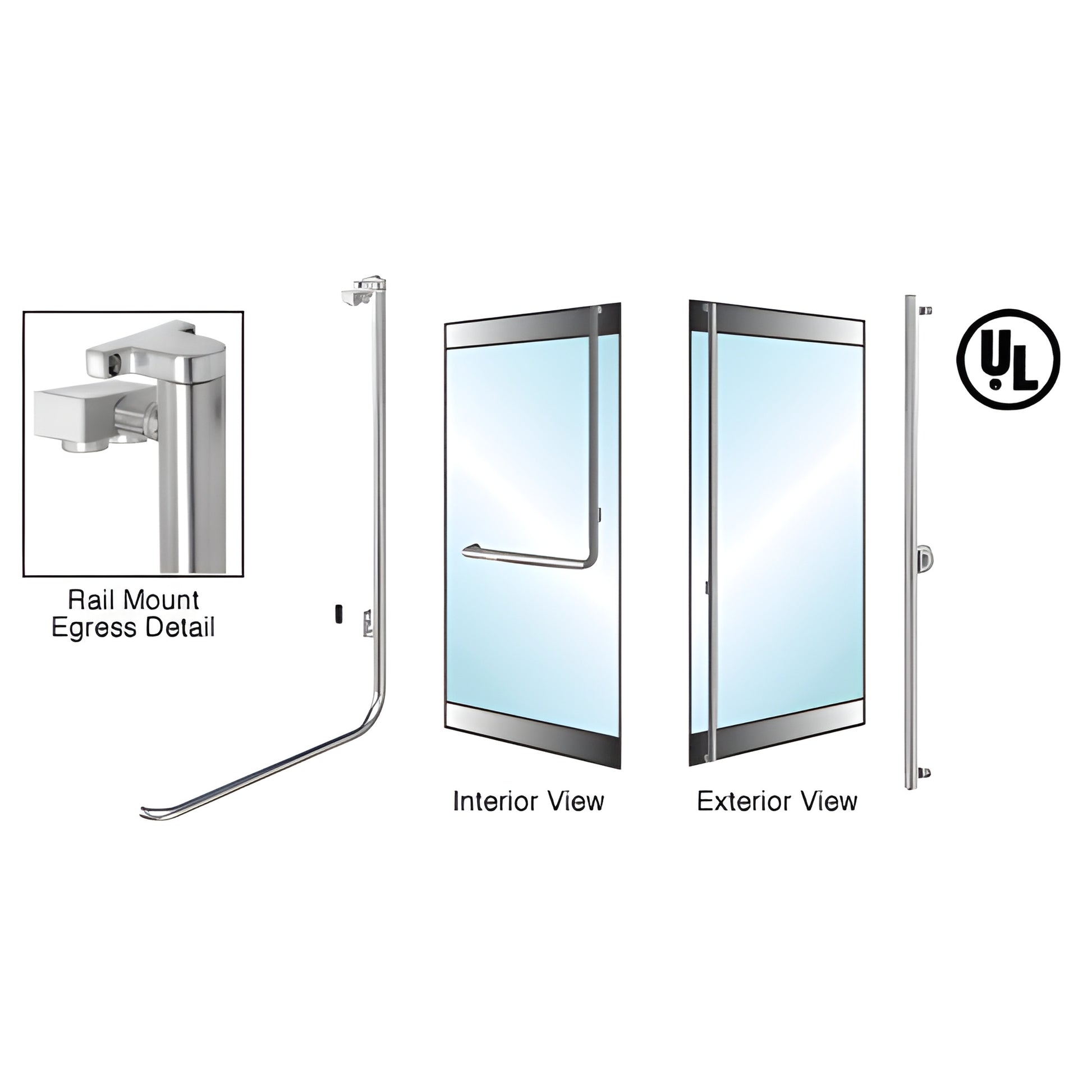

Our CRL-Blumcraft® Electronic Egress Control Handles are a more economical method to control access into and safe exit from areas that call for security, and still maintain the beauty and view of an 'all-glass' door. When the handle is pushed an electronic switch releases the magnetic lock at the top or bottom of the door. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90 to 102" (2.29 to 2.59 m) tall without any modification. Installations can be made on single and double doors. Please consult your local building codes as they relate to electromagnetic locking hardware and applicability.
Stock Electronic Egress Control Handles are manufactured so the horizontal bar will be centered 42" (1.07 m) from the bottom of a 96" (2.44 m) door. When using the Stock Handles on shorter or taller doors the horizontal location will change accordingly, not to exceed 48" (1.22 m) or lower than 36" (914 mm) from the floor, which conforms with current Uniform Building Code requirements for hardware location. Please check local codes for additional requirements.
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
Glass Thickness:
1/2" or 3/4" (12 or 19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Electronic Egress Control Handles you must specify:
EG100 or EG110 Series
Exterior Handle Option
Right or Left Hand (as Viewed from the Outside)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.
Product Warning:
Comes standard without Keyed Access Device.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
