CRL-Blumcraft Brushed SS Right-Hand Z Panic Handle 3/4" Glass Keyed

• For 3/4" (19 mm) tempered glass doors — fits single or double glass doors and serves as a replacement for older panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

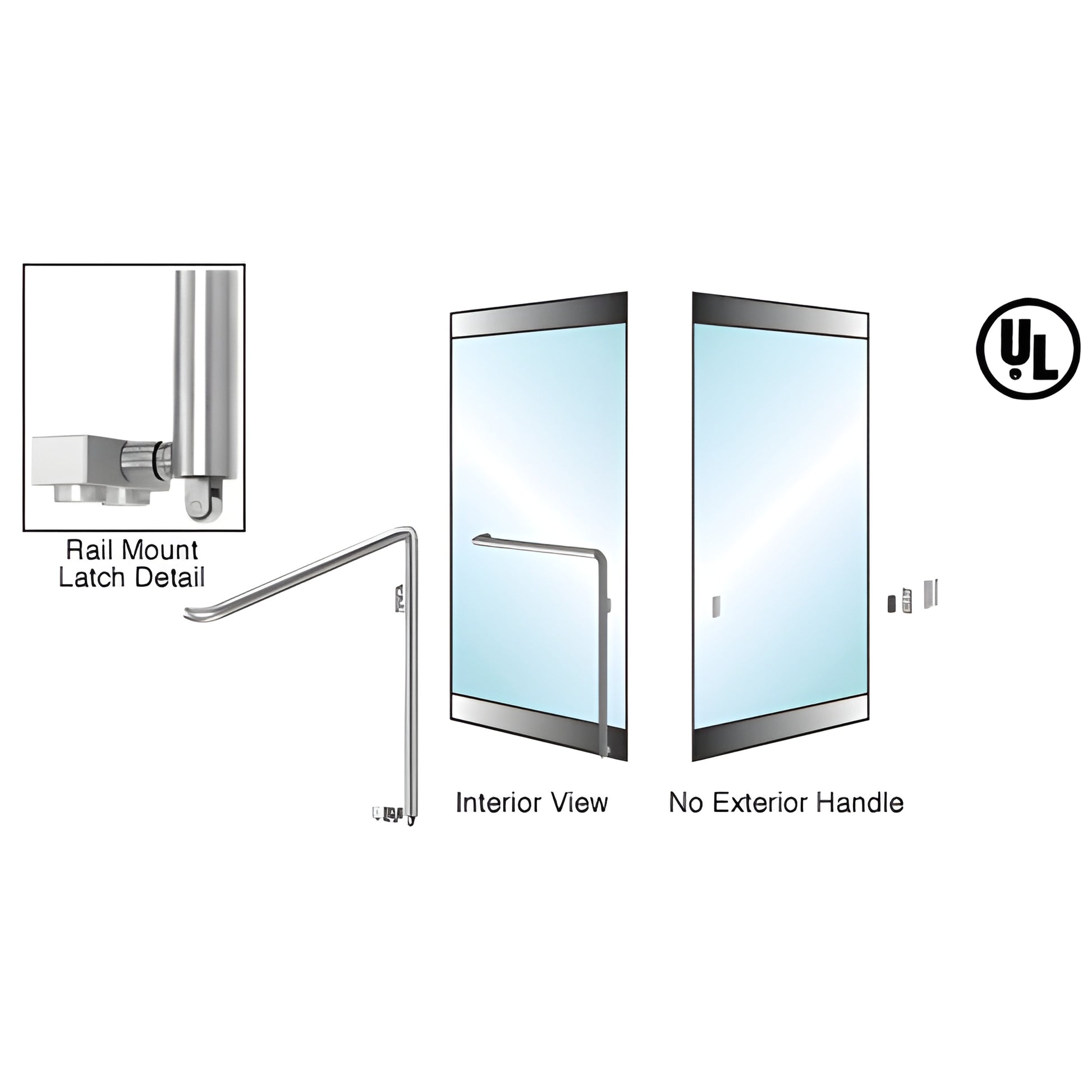

This CRL-Blumcraft® Glass Door Panic Handle provides a contemporary, high-visibility design for 3/4" (19 mm) tempered glass doors. Ready-to-install for 36" to 48" (914 mm to 1.22 m) door widths and 90" to 102" (2.29 to 2.59 m) heights without modification. "Dogging" (locking the device in the open position) is accomplished with a simple slide knob. A door stop and strike must be ordered separately; a threshold strike plate is available for the PA110 series. Custom headers can be supplied with pre-installed hardware. SKU: 3P110Z3RKBS

SPECIFICATIONS

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales

ORDERING OPTIONS
When ordering panic handles specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Finish: brushed or polished stainless, satin or polished brass
• Optional threshold strike plate (PA110 series only)

For additional technical help, contact CRL Commercial Products Technical Department.

Stainless Steel Advisory:
