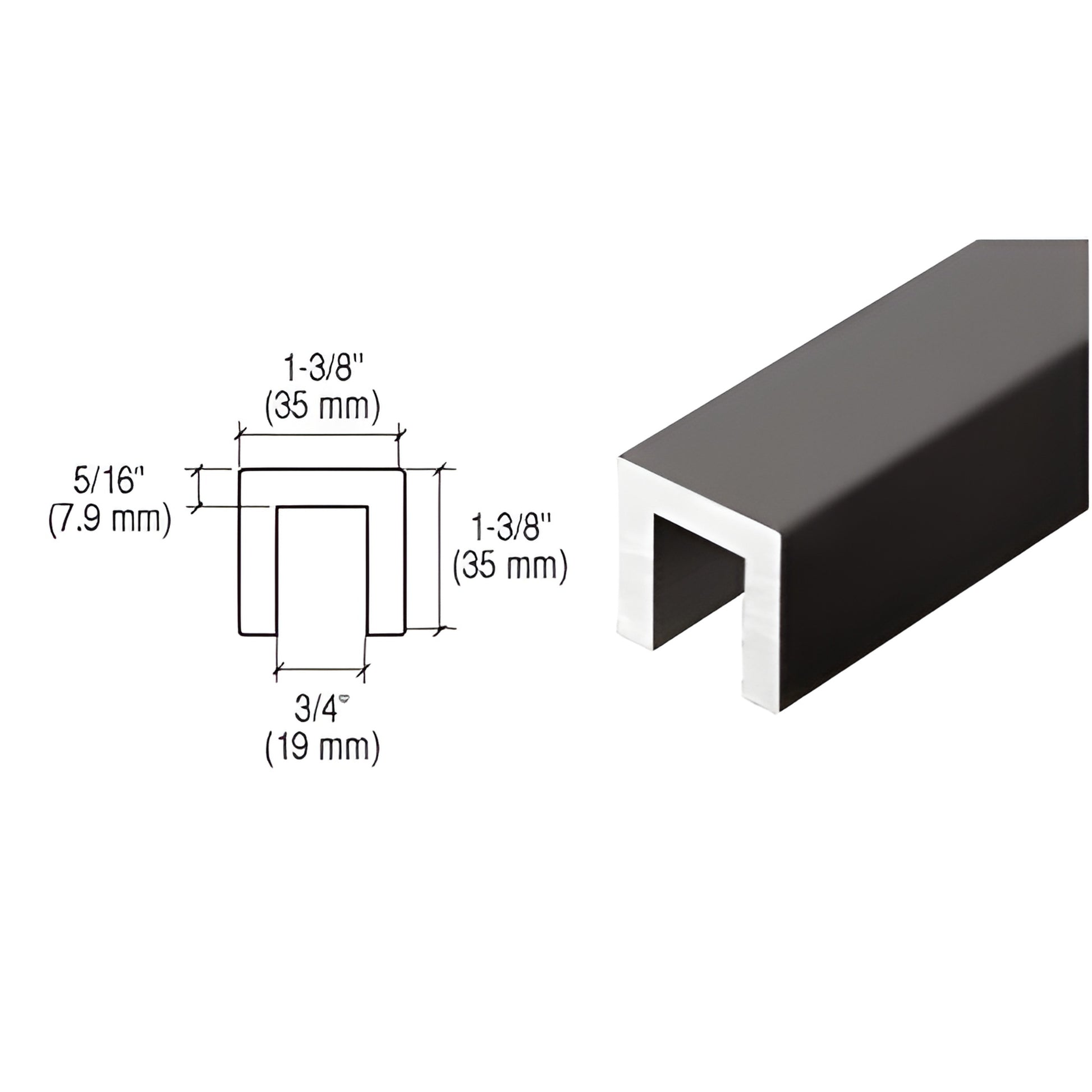

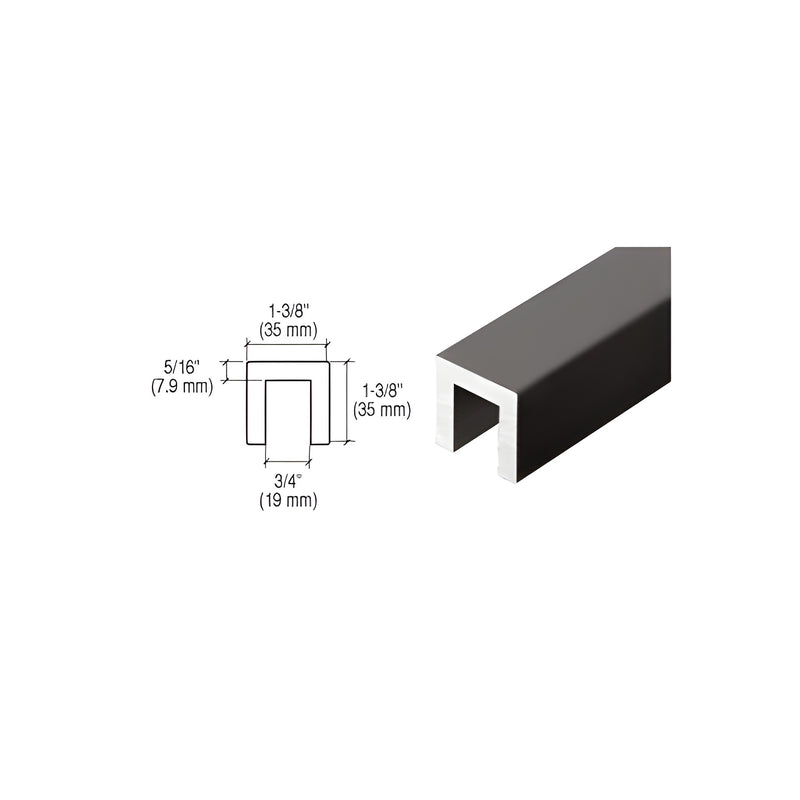

• 324DU black bronze anodized aluminum U cap rail for 1/2" (12 mm) glass, 1-3/8" wide, illustrated cross-section and profile.
1 1

CRL

CRL-Blumcraft 324 Dark Bronze 1-3/8in Extruded Aluminum Cap Rail

CRL-Blumcraft 324 Dark Bronze 1-3/8in Extruded Aluminum Cap Rail

$943.00 CAD
$943.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 324DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized
Glass Pocket Width
3/4 in. (19 mm)
Glazing Insert
ST302
Glazing Thickness
9/16 in. (14 mm)
Height
1-3/8 in. (35 mm)
ICC ESR Number
ESR 3842
Length
120 in. (3048 mm)
Material
6063-T5 Aluminum
Top of Rail to Top of Glass Pocket
5/16
Width
1-3/8 in. (35 mm)

Overview

  • For 1/2" (12 mm) glass
  • Ready-to-install
  • Extruded heavy-duty solid aluminum construction (6063‑T5)
  • Two architectural finishes; mill aluminum available from stock
  • Stainless steel adapter strips sold separately
  • Sold in 120" (3.05 m) stock lengths or custom fabricated to size

CRL‑Blumcraft® Top Quality Extruded Cap Rails — SKU 324DU are precision extruded from 6063‑T5 aluminum for durability and a clean architectural finish. These aluminum cap rails are designed for 1/2" (12 mm) glass and available in two architectural finishes plus mill aluminum. Cap rails ship in 120" stock lengths or can be custom fabricated to your specified size.

When installing CRL‑Blumcraft® 324 and 339 Series cap rails, install stainless steel adapter strips onto the glass edge with Very High Bond cladding tape before fitting the cap rail. Adapter strips are required and sold separately.

Note: Each cap rail includes pre‑drilled holes 24" (610 mm) on center and set screws along one side for secure attachment to the adapter strips.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order SKU 324DU today for a durable aluminum cap rail solution — contact CRL for custom sizing and installation accessories.
