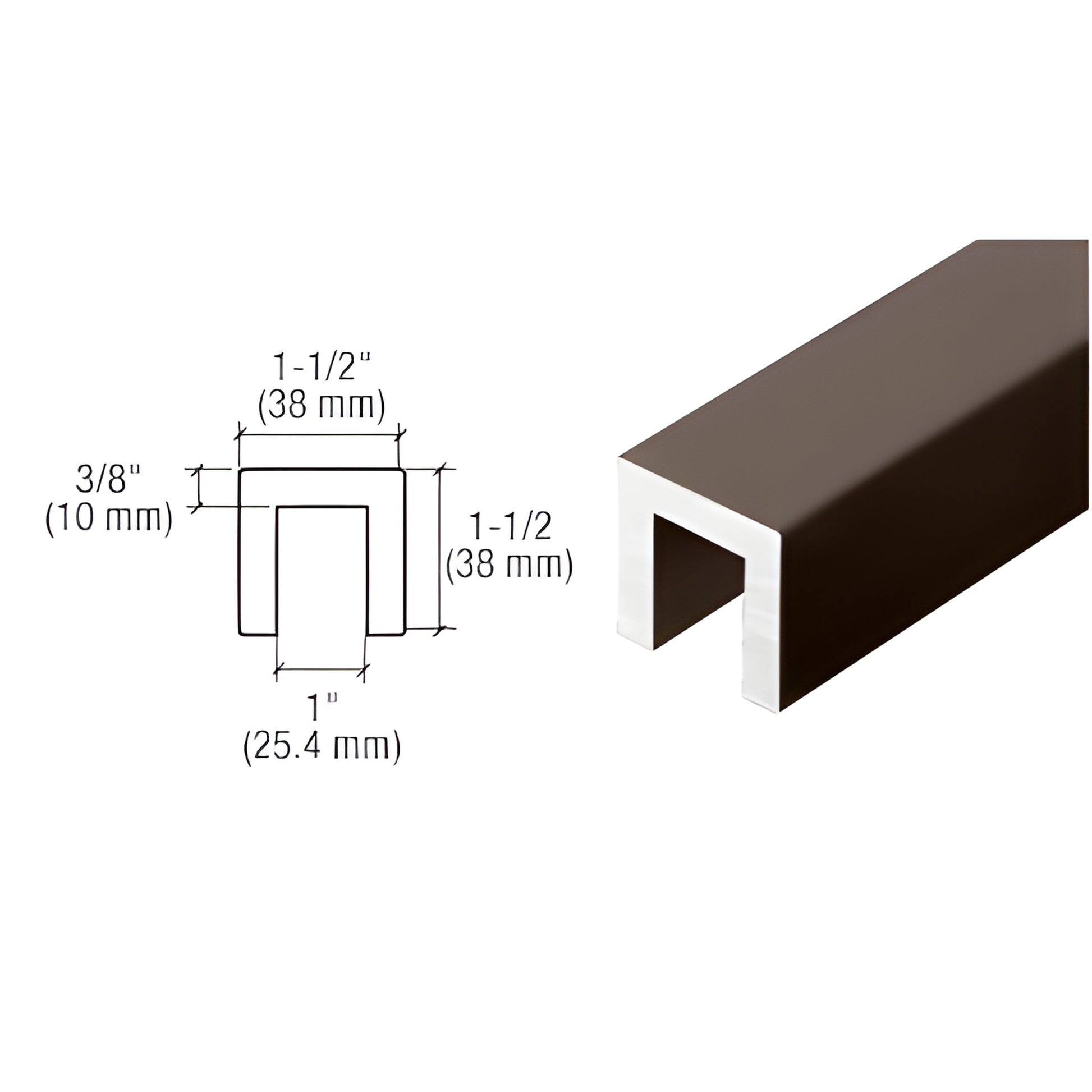

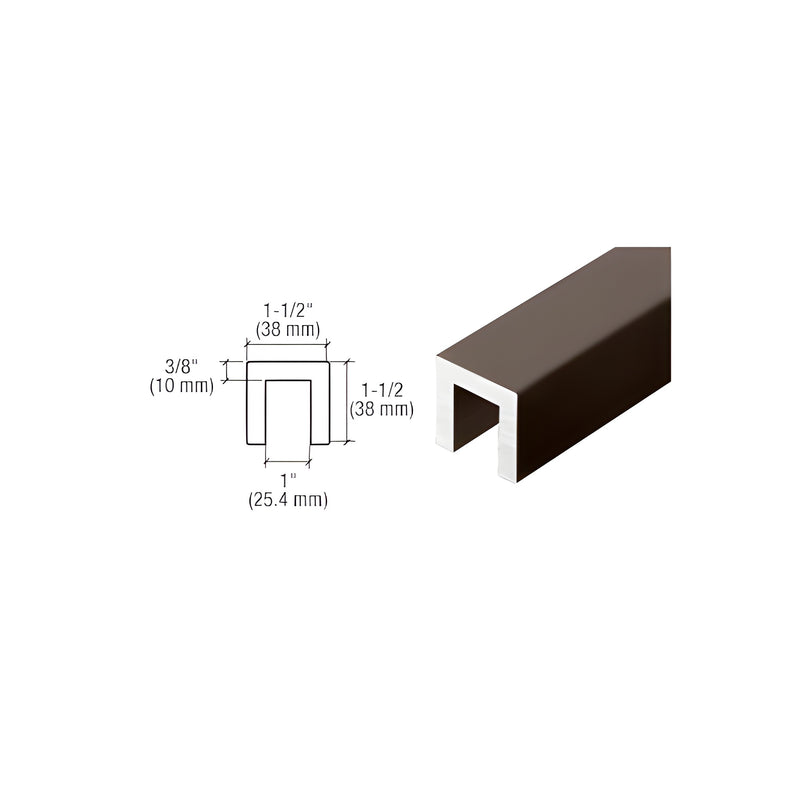

CRL-Blumcraft® Dark Bronze 3243 Series 1-1/2" x 1-1/2" Extruded Aluminum Cap Rail

• Designed for 3/4" (19 mm) tempered glass — cap rail for 3/4 inch tempered glass
• Ready-to-install extruded heavy-duty solid aluminum construction (6063-T5)
• Available in two architectural finishes; mill aluminum available from stock
• Stainless steel adapter strips sold separately (required for installation)
• Sold in 120" (3.05 m) stock lengths or custom fabricated to size

CRL-Blumcraft® Top Quality Extruded Cap Rails (SKU: 3243DU) are precision-extruded from 6063-T5 aluminum and engineered for secure, decorative edge protection on 3/4" tempered glass. Available in two architectural finishes plus mill aluminum, these cap rails are finished to architectural standards and offered in stock lengths or custom-fabricated to your size requirements.

For correct installation of the 3243 series cap rail, first apply stainless steel adapter strips to the glass edge using Very High Bond cladding tape, then install the cap rail over the adapter strip. Adapter strips, Very High Bond tape, and splice pins are required and sold separately.

Key features:

• Pre-drilled holes 24" (610 mm) on center for fast mounting
• Set screws along one side for secure attachment to adapter strips
• Durable extruded aluminum construction for long-term performance
• Custom fabrication available to fit non-standard lengths

Order SKU 3243DU now or contact CRL for custom fabrication and installation accessories.
