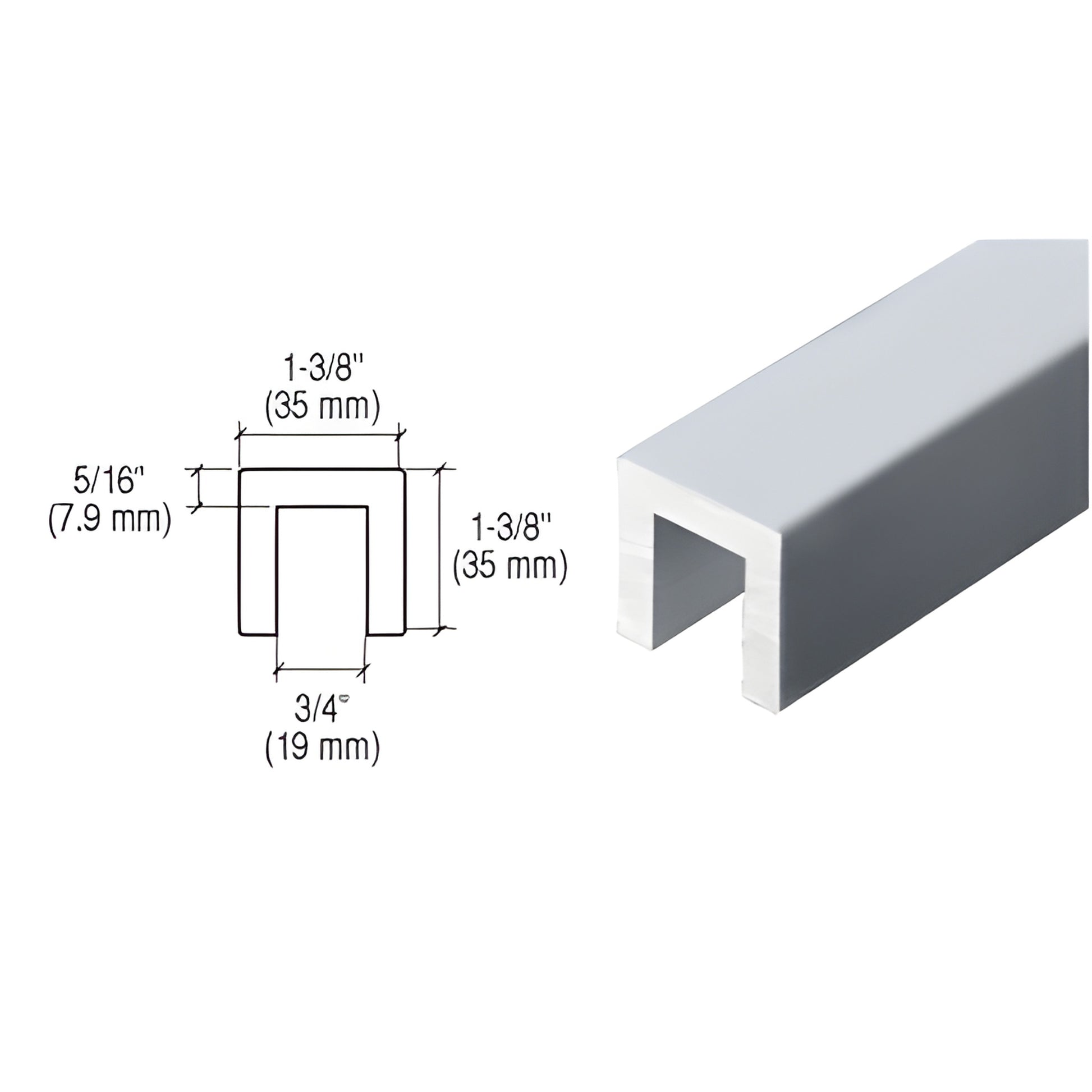

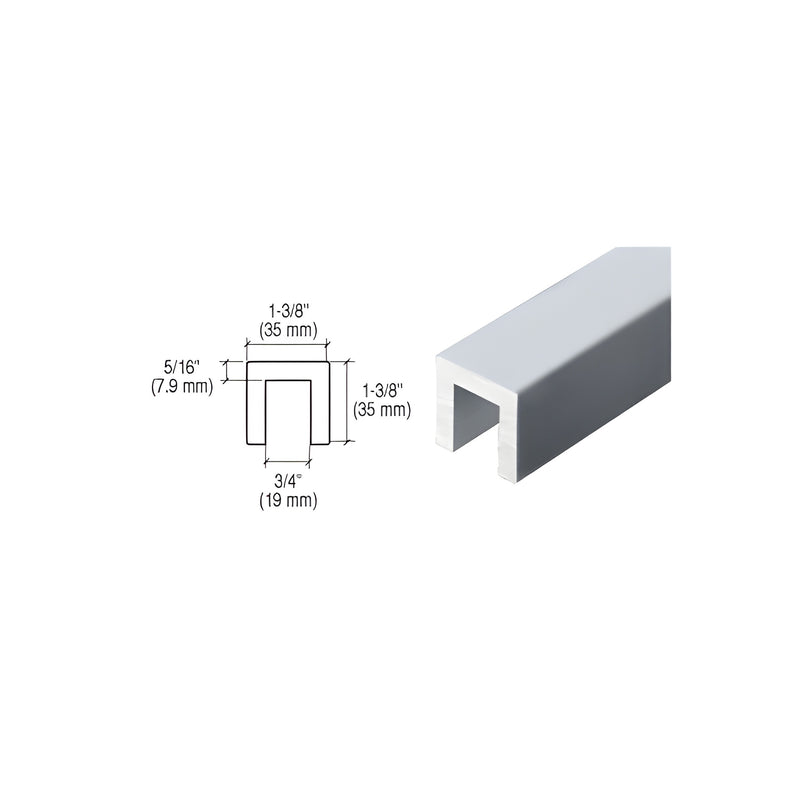

CRL-Blumcraft® 324 1-3/8" Extruded Aluminum Cap Rail, Mill Finish
CRL-Blumcraft® 324 1-3/8" Extruded Aluminum Cap Rail, Mill Finish
Regular price
$505.60 CAD
Regular price
Sale price
$505.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 324M
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Mill
Glass Pocket Width
3/4 in. (19 mm)
Glazing Insert
ST302
Glazing Thickness
9/16 in. (14 mm)
Height
1-3/8 in. (35 mm)
ICC ESR Number
ESR 3842
Material
6063-T5 Aluminum
Top of Rail to Top of Glass Pocket
5/16
Width
1-3/8 in. (35 mm)
Overview
- For 1/2" (12 mm) glass
- Ready-to-install
- Extruded heavy-duty solid aluminum construction (6063-T5)
- Two architectural finishes plus mill aluminum available from stock
- Stainless steel adapter strips sold separately
- Sold in 120" (3.05 m) stock lengths or custom fabricated to size
CRL-Blumcraft® Top Quality Extruded Cap Rails (SKU 324M) are precision-extruded from 6063-T5 aluminum and supplied in two architectural finishes plus mill aluminum. Designed for 1/2" (12 mm) glass, these heavy-duty cap rails ship in 120" (3.05 m) stock lengths or can be custom fabricated to your specified size. Use stainless steel adapter strips, Very High Bond cladding tape, and splice pins (all sold separately) for a secure, long-lasting installation—differentiators that ensure reliable attachment and a clean architectural appearance.
When installing CRL-Blumcraft® 324 and 339 Series cap rails, first apply the stainless steel adapter strips to the glass edge using Very High Bond tape, then install the cap rail over the adapter strip for correct fit and finish.
NOTE: Each cap rail includes pre-drilled holes 24" (610 mm) on center and set screws along one side for proper attachment to the adapter strips.
Order SKU 324M today or contact CRL Customer Service for custom fabrication and shipping details.
