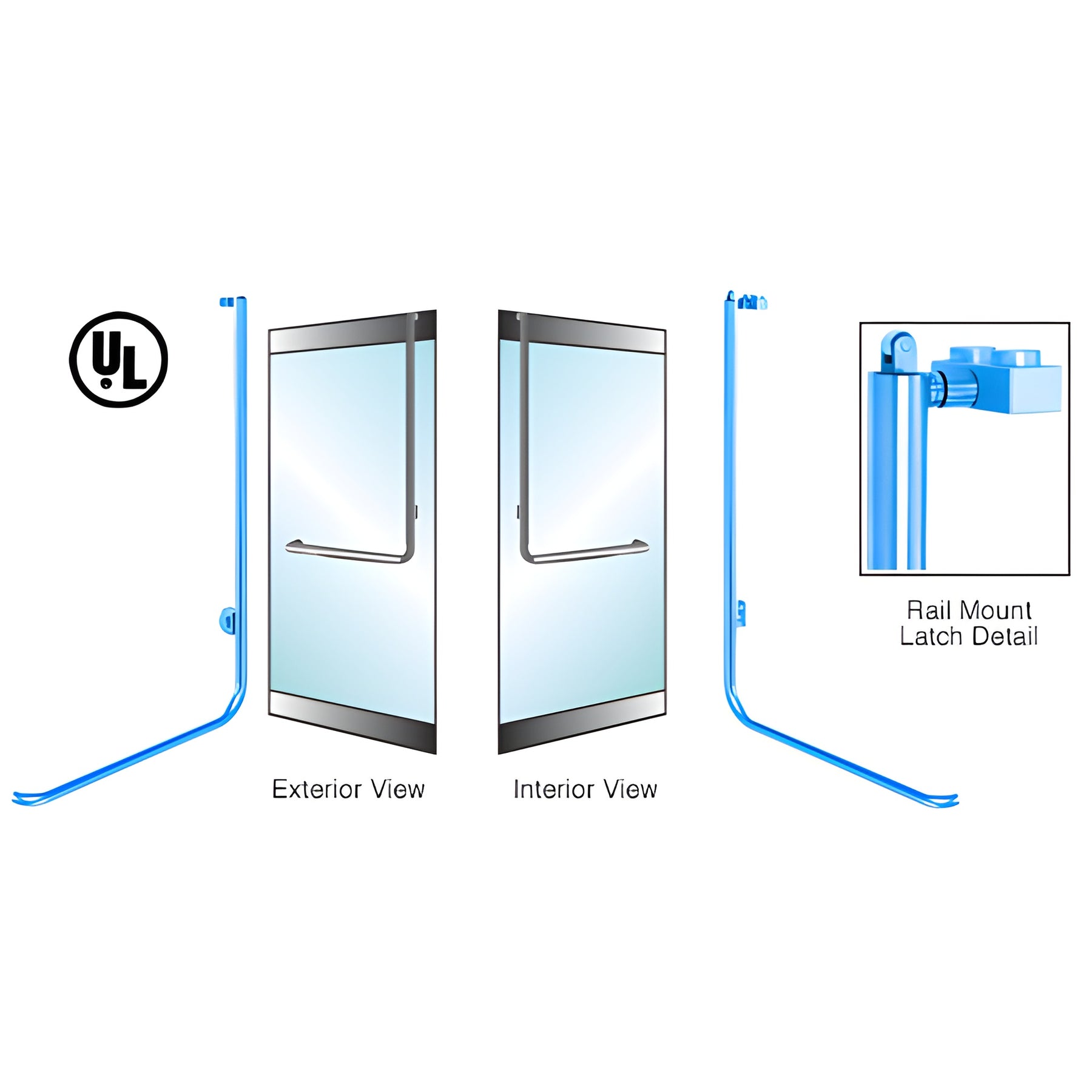

CRL-Blumcraft® Left-Hand Keyed D Panic Handle Rail-Mount 5/8in Glass

• UL, ULC, and ANSI/BHMA certified panic hardware
• Elegant tubular design for all-glass doors
• Fits 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
• Available finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass door applications. Our product lineup includes panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a uniform appearance without the extra cost.

The PA100 Series panic handle (SKU: 5P100D4RKPT) features a concealed operating mechanism within the vertical tube that retracts the latch bolt when the interior actuation bar is pushed—providing reliable, ADA-compliant glass door panic hardware. An optional exterior keyed access device and a special dogging feature allow doors to remain unlocked during business hours. Electronic strikes and custom headers with preinstalled strike hardware are available for remote, keyless entry solutions.

Designed for maximum viewing area and a contemporary look, the slender 1-1/4" (32 mm) interior tube stretches across the door and turns upward to the door top, keeping the lower half clear of obstructions to meet ADA requirements. All PA100 Series panic handles include a sliding dogging lever for daytime free access and are compatible with electric strikes for secure after-hours control.

Key differentiators: UL/ULC/ANSI-BHMA certification, ADA-compliant design for 1/2"–3/4" tempered glass, multiple factory and custom finish options, fast custom-size lead times, and available electronic strike integration.


Order the PA100 Series panic handle (SKU: 5P100D4RKPT) or contact our Technical Sales Department for custom finishes, sizes, and electronic strike solutions.
