CRL-Blumcraft Polished SS Left-Hand Keyed Panic Handle 3/4in Glass

• Fits 3/4" (19 mm) tempered glass doors — ideal replacement for older panic devices
• Custom sizes ship within one to two weeks
• Optional keyed access and compatible with electric strike
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

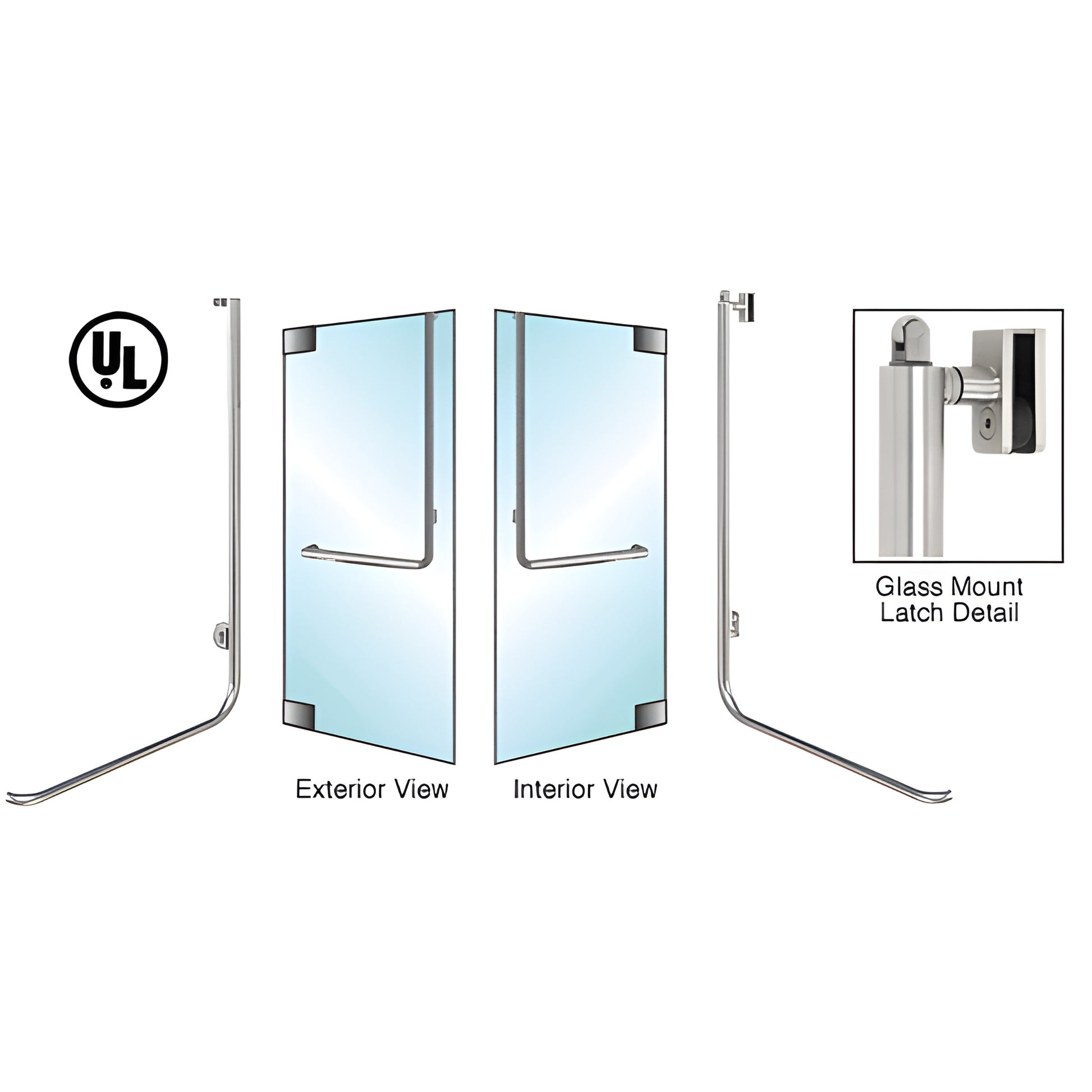

CRL Glass Door Panic Handle (SKU: 3P100D4GKPS) — Contemporary, maximum-view panic handle designed for 3/4" (19 mm) tempered glass doors. Supports single or double door installations and ships ready to install for doors 36"–48" (914–1,220 mm) wide and 90"–102" (2.29–2.59 m) high without modification. Easy dogging (locking open) with a slide knob. Door stop/strike ordered separately. Threshold strike plate available for PA110 series. Custom header available with pre-installed hardware.

SPECIFICATIONS

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales for details

ORDERING OPTIONS
When ordering panic handles specify:

• PA100 or PA110 series
• Right or Left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Finish: brushed or polished stainless, satin or polished brass
• Optional threshold strike plate (PA110 series only)

For technical assistance or to confirm custom glass fabrication and shipping weight, contact CRL Commercial Products Technical Sales or CRL Customer Service. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:

Ready to order or need a custom size? Contact CRL Technical Sales or place your order for SKU 3P100D4GKPS today.
