CRL Blumcraft Stainless Left-Hand Keyed Panic Handle for 3/4" Glass

• Fits 3/4" (19 mm) tempered glass doors — ideal glass door panic handle and replacement panic hardware
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike available
• Certification: ANSI/BHMA A156.3 - 2001 Grade 1

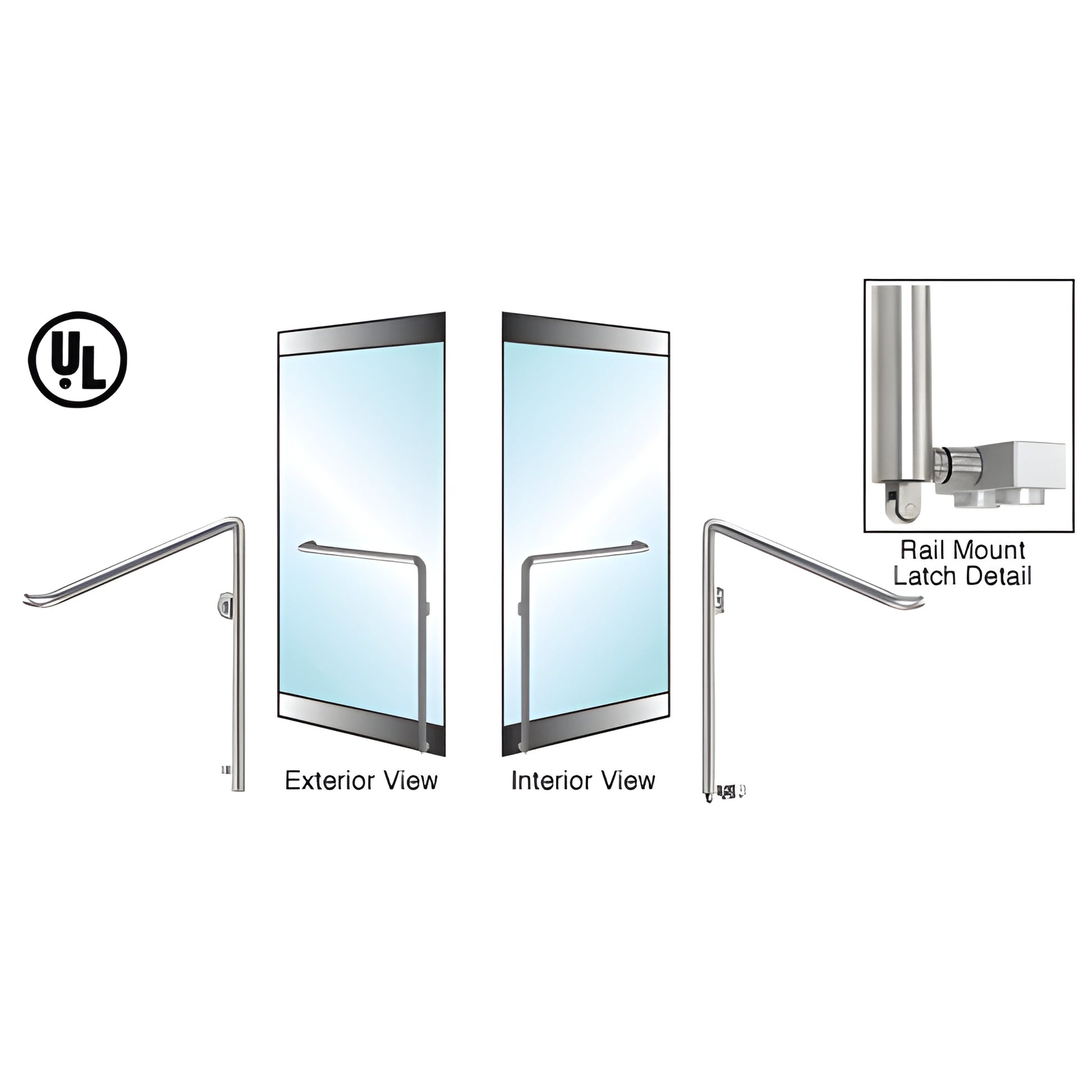

CRL-Blumcraft® Glass Door Panic Handle (SKU: 3P110C4RKPS) is engineered for maximum visibility and a contemporary aesthetic on 3/4" (19 mm) tempered glass doors. Suitable for single or double door installations, these panic handles install on 36" to 48" (914 mm to 1.22 m) wide doors with heights from 90" to 102" (2.29 to 2.59 m) without modification. "Dogging" (locking the device open) is simple with a sliding knob. Use with a separately ordered Door Stop/Strike; a Threshold Strike Plate is available for the PA110 Series. Custom headers can be supplied with pre-installed hardware.

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 3/4" (19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales

When ordering panic handles, specify:

• PA100 or PA110 Series
• Right or left hand (as viewed from the outside)
• Rail mount (for doors with full-length rails) or glass mount (for doors with patch rails)
• Standard retainer plate or optional keyed access device
• Finish: brushed or polished stainless; satin or polished brass
• Optional threshold strike plate (PA110 Series only)

For more information contact CRL Commercial Products Technical Sales Department.
