CRL-Blumcraft® Polished SS LH Rail-Mount Keyed Panic Handle 5/8in

• UL, ULC, and ANSI/BHMA Certified
• Elegant tubular design
• Wide selection of exterior fixed handles for 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles for 'all-glass' door systems, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance without added cost.

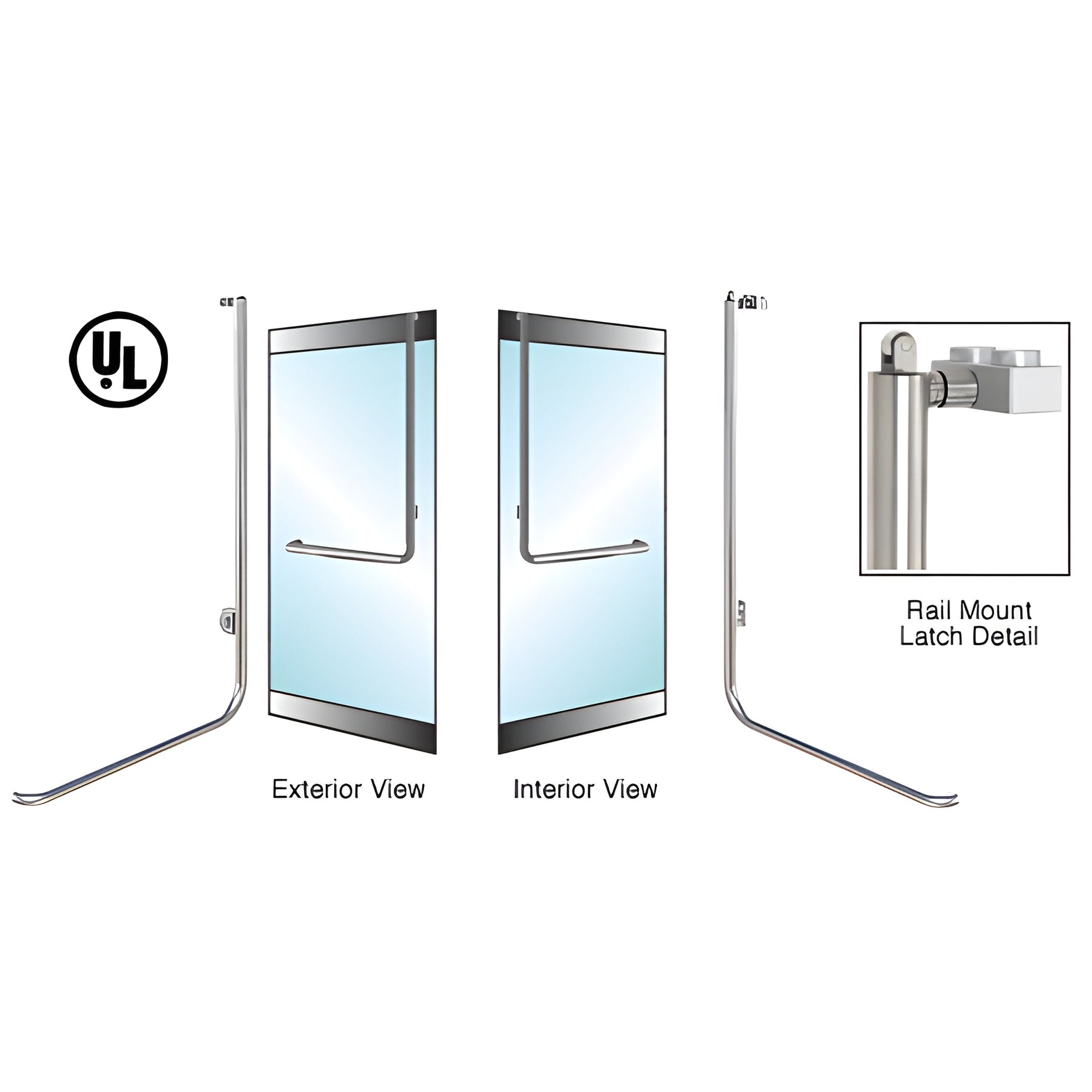

The PA100 Series panic handles are engineered for 1/2" to 3/4" (12–19 mm) tempered glass doors and meet Americans with Disabilities Act (A.D.A.) requirements. The slim 1-1/4" (32 mm) interior tube runs across the door and turns upward to the header, keeping the lower door area clear of obstructions to comply with ADA clear-path regulations.

The concealed operating mechanism in the vertical tubing retracts the latch bolt when the interior actuation bar is pushed. Key features include a sliding dogging feature for propping the device open during business hours, optional exterior keyed access devices, and compatibility with electric strikes for remote keyless entry—ideal for secure commercial glass door installations.

Available finish options and special-order custom finishes, plus custom headers with strike hardware preinstalled, make the PA100 Series a versatile choice for storefronts, office entrances, and other commercial tempered glass door applications.

Stainless Steel Advisory:

SKU: 5P100D4RKPS — Contact CRL Technical Sales for custom configurations or to order this PA100 Series panic handle for tempered glass doors.
