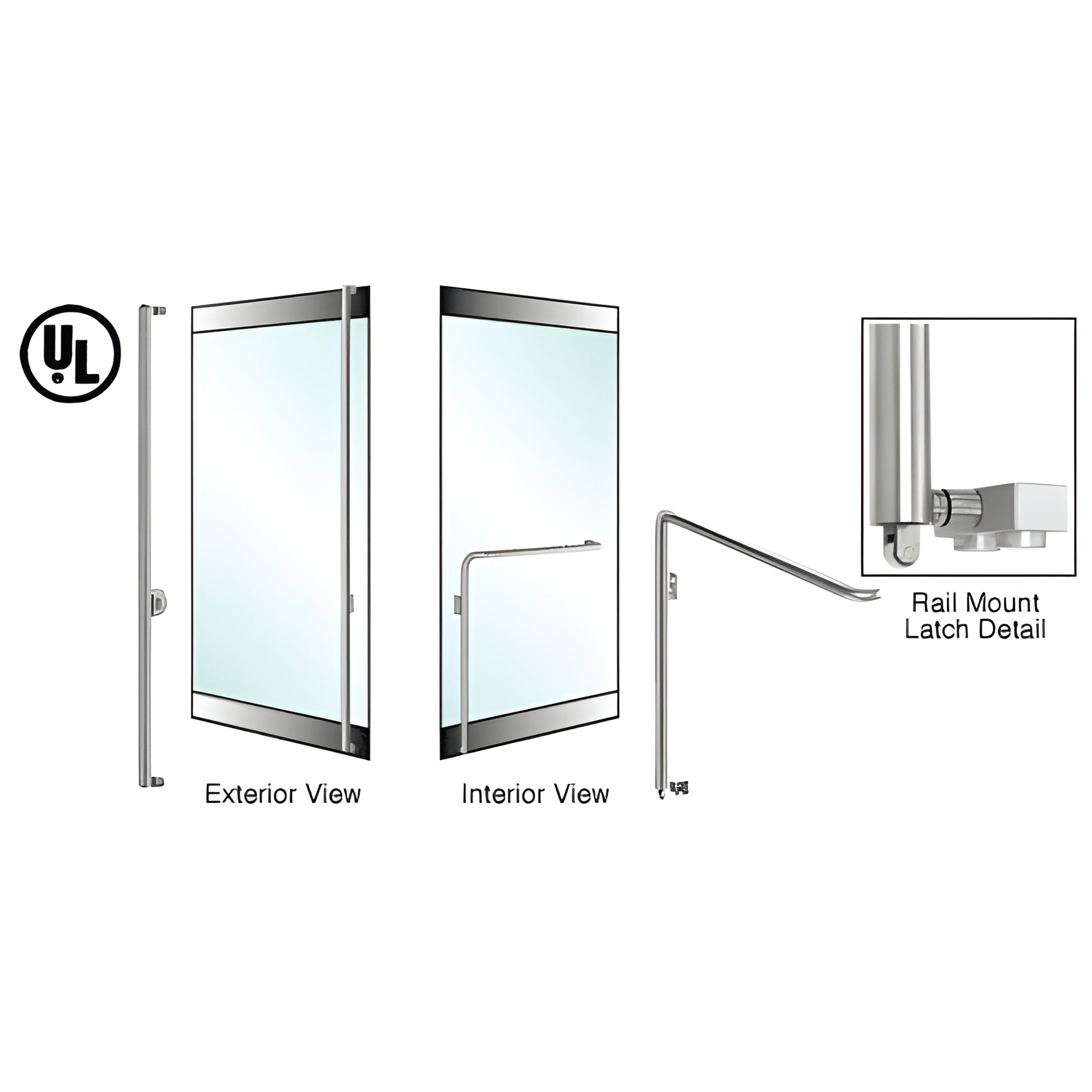

CRL-Blumcraft® Polished SS Left Keyed Rail Panic Handle 3/4" Glass

• For 3/4" (19 mm) tempered glass doors — can be used as a replacement for older panic devices
• Also available for 3/4" (19 mm) thick glass
• Custom sizes ship within one to two weeks
• Optional keyed access and electric strike
• Certification: ANSI/UL305

This CRL-Blumcraft® Glass Door Panic Handle is engineered for maximum view and a contemporary appearance on 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Suitable for single or double doors, the handles are designed ready-to-install for door widths of 36" to 48" (914 mm to 1.22 m) and heights from 90" to 102" (2.29 to 2.59 m) without modification. Dogging (locking the device in the open position) is simple with a slide knob. A door stop/strike must be ordered separately. Threshold strike plate available for PA110 Series. Custom header options available with pre-installed hardware. SKU: 3P110F4RKPS.

SPECIFICATIONS

• Material: 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
• Glass Thickness: 1/2" or 3/4" (12 or 19 mm)
• Glass Fabrication: Varies — please contact CRL Technical Sales for details

ORDERING OPTIONS

When ordering panic handles you must specify:

• PA100 or PA110 Series
• Exterior handle option
• Rail mount (for doors with full-length rails
