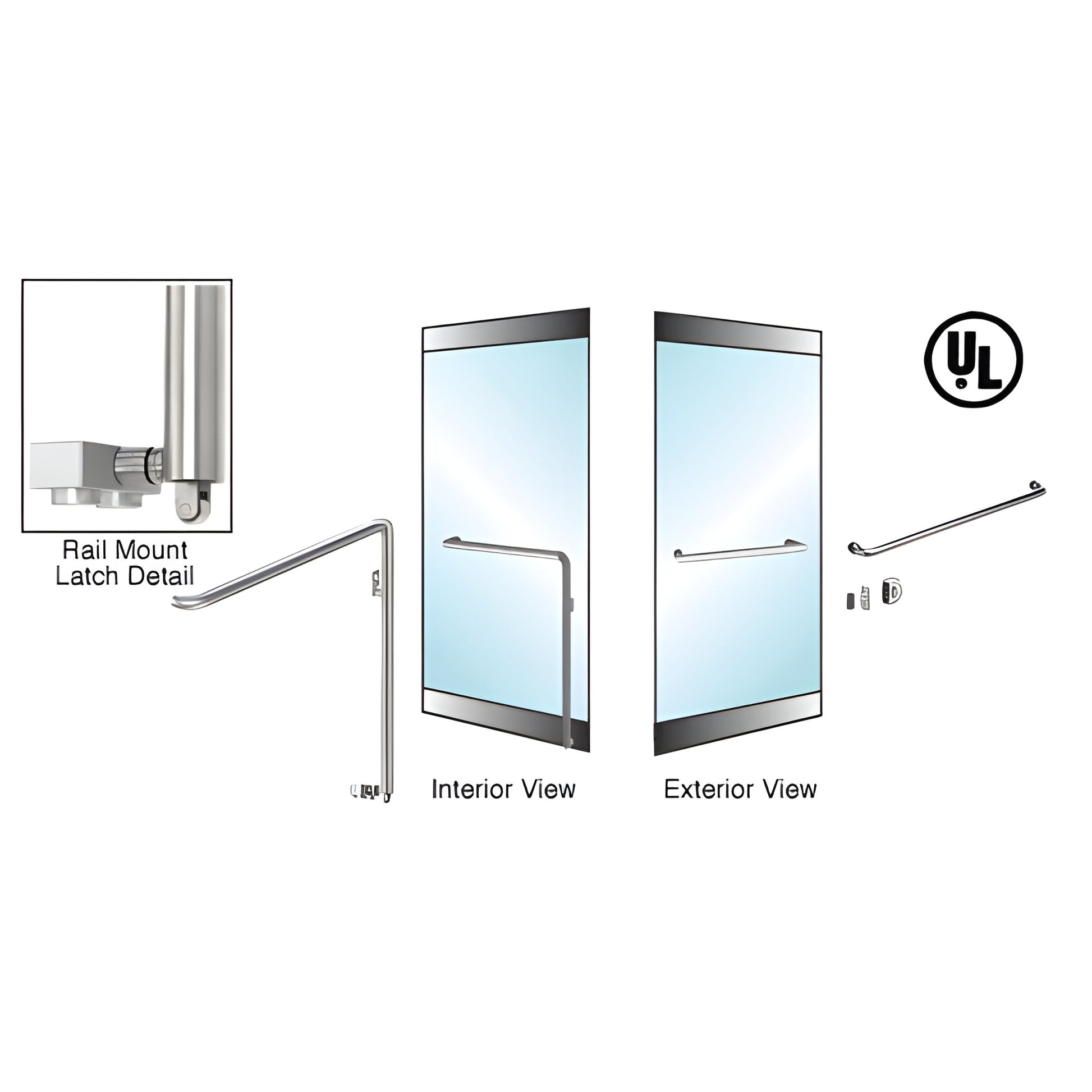

• Polished stainless CRL glass door panic handle (SKU 3P110A3RKPS), 1-1/4" rail mount push bar for 3/4" tempered glass doors.
1 1

CRL

CRL-Blumcraft Right-Hand Rail-Mount Keyed Panic Handle for 3/4" Glass

CRL-Blumcraft Right-Hand Rail-Mount Keyed Panic Handle for 3/4" Glass

$12,877.19 CAD
$12,877.19 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P110A3RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Bottom
Material
Stainless Steel (Alloy 304)

Overview

  • For 3/4" (19 mm) tempered glass doors — compatible with single or double glass door installations
  • Can be used as a replacement for older panic devices
  • Custom sizes ship within one to two weeks
  • Optional keyed access and compatible with electric strike installations
  • Certification: ANSI/BHMA A156.3‑2001 Grade 1

This CRL Glass Door Panic Handle (SKU: 3P110A3RKPS) is engineered to maximize glass visibility while providing a contemporary aesthetic for 3/4" (19 mm) tempered glass doors. Ready-to-install for 36" to 48" (914 mm to 1,220 mm) wide doors with heights from 90" to 102" (2.29 m to 2.59 m) without modification. "Dogging" (locking the device in the open position) is simple with an easy slide knob. A separate door stop/strike must be ordered. Threshold strike plate available for PA110 series. Custom header options available with pre-installed hardware.



SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) diameter 385 bronze or 304 stainless steel tubing (2 mm thick)
Glass Thickness:
  • 3/4" (19 mm)
Glass Fabrication:
ORDERING OPTIONS
When ordering panic handles you must specify:
  • PA100 or PA110 series
  • Right or left hand (as viewed from the outside)
  • Rail mount (for doors with full length rails) or glass mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Brushed or polished stainless, satin or polished brass finish
  • Optional threshold strike plate (PA110 series only)

For more information contact CRL Commercial Products Technical Sales Department.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to maintain the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full details.

Key differentiators: Grade
