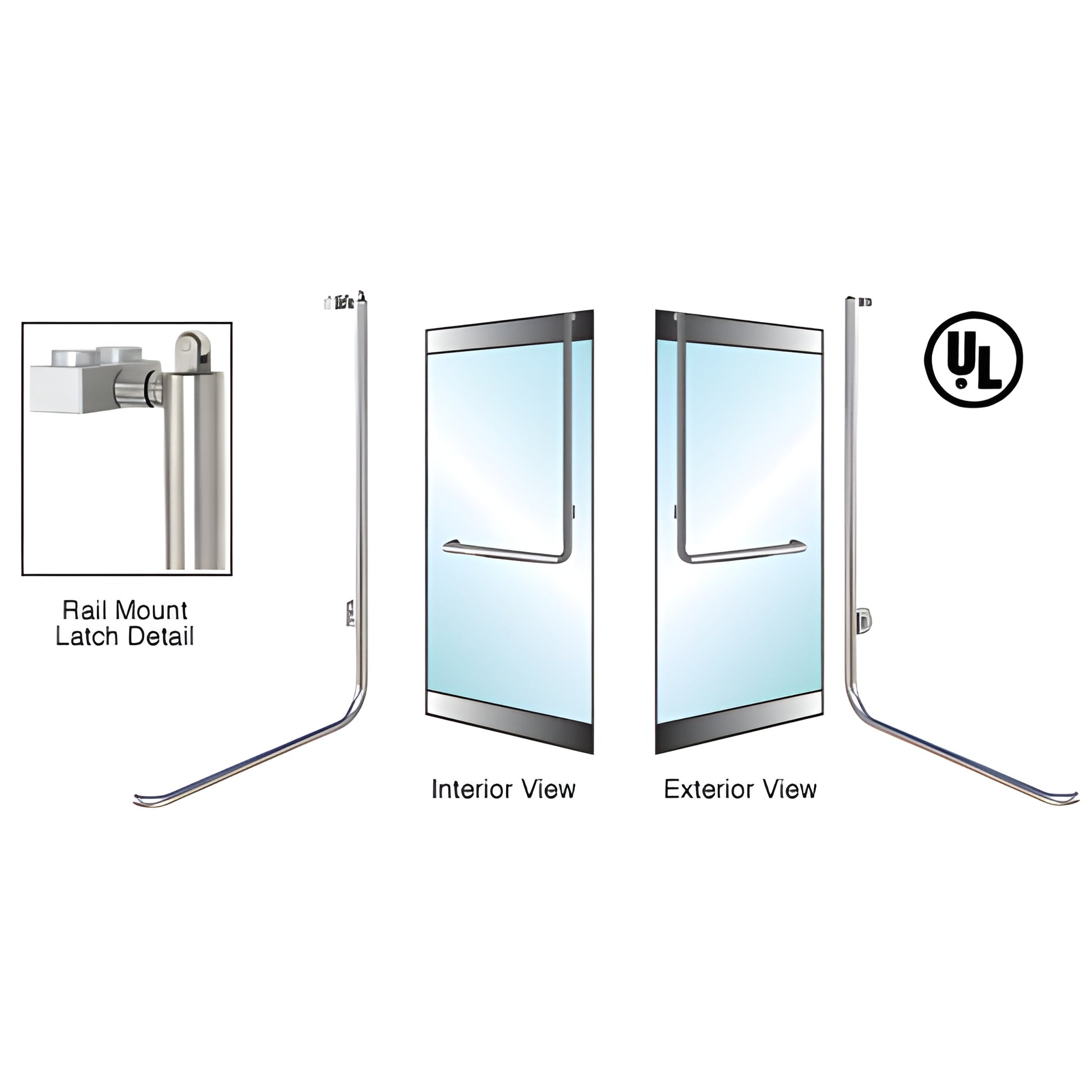

• Polished stainless steel 1-1/4 in rail-mount glass door panic handle (SKU 3P100D3RKPS), interior and exterior views
1 1

CRL

CRL-Blumcraft Stainless RH Rail-Mount Keyed Panic Handle 3/4in Glass

CRL-Blumcraft Stainless RH Rail-Mount Keyed Panic Handle 3/4in Glass

$11,667.79 CAD
$11,667.79 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 3P100D3RKPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Application
DRS Rail Mount
Diameter
1-1/4 in. (32 mm)
Exterior Access
Yes
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Right Hand Reverse
Keying
Cylinder Outside Only
Latching
Top
Material
Stainless Steel (Alloy 304)

Overview

  • SKU: 3P100D3RKPS
  • Fits 3/4" (19 mm) tempered glass doors — ideal as a replacement for older panic devices
  • Custom sizes ship within one to two weeks
  • Optional keyed access and electric strike available
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

CRL-Blumcraft® Glass Door Panic Handle — designed for maximum view and a contemporary look on 3/4" (19 mm) tempered glass doors. Suitable for single or double doors and ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors (90" to 102" / 2.29 to 2.59 m high) without modification. Easy dogging (locking open) with a simple slide knob. A separate Door Stop/Strike is required. Threshold Strike Plate available for PA110 Series. Custom header options available with pre-installed hardware.


SPECIFICATIONS
  • Material: 1-1/4" (32 mm) diameter 385 Bronze or 304 Stainless Steel tubing (2 mm thick)
  • Glass Thickness: 3/4" (19 mm)
  • Glass Fabrication: Varies — please contact CRL Technical Sales

ORDERING OPTIONS

When ordering panic handles specify:

  • PA100 or PA110 Series
  • Right or Left hand (as viewed from the outside)
  • Rail Mount (for doors with full-length rails) or Glass Mount (for doors with patch rails)
  • Standard retainer plate or optional keyed access device
  • Finish: Brushed or Polished Stainless, Satin or Polished Brass
  • Optional Threshold Strike Plate (PA110 Series only)

For technical assistance or to confirm glass fabrication details, contact the CRL Commercial Products Technical Sales Department.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, request this before ordering by contacting CRL Customer Service. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:

Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
