CRL-Blumcraft® SS RH Rail-Mount Keyed D Panic Handle 5/8" Glass

• UL, ULC, and ANSI/BHMA certified
• Elegant tubular design for contemporary all-glass doors
• Fits 1/2" (12 mm) to 3/4" (19 mm) tempered glass doors
• Wide selection of exterior fixed handles
• Finishes: Polished Stainless, Brushed Stainless, Satin Brass, Polished Brass, Oil Rubbed Bronze
• Custom finishes available by special order
• Custom sizes ship within one to two weeks

CRL-Blumcraft® manufactures a complete line of access control handles and panic hardware for all-glass door applications, including panic devices, deadbolt handles, electronic egress control handles, and matching dummy handles to maintain a consistent appearance across projects.

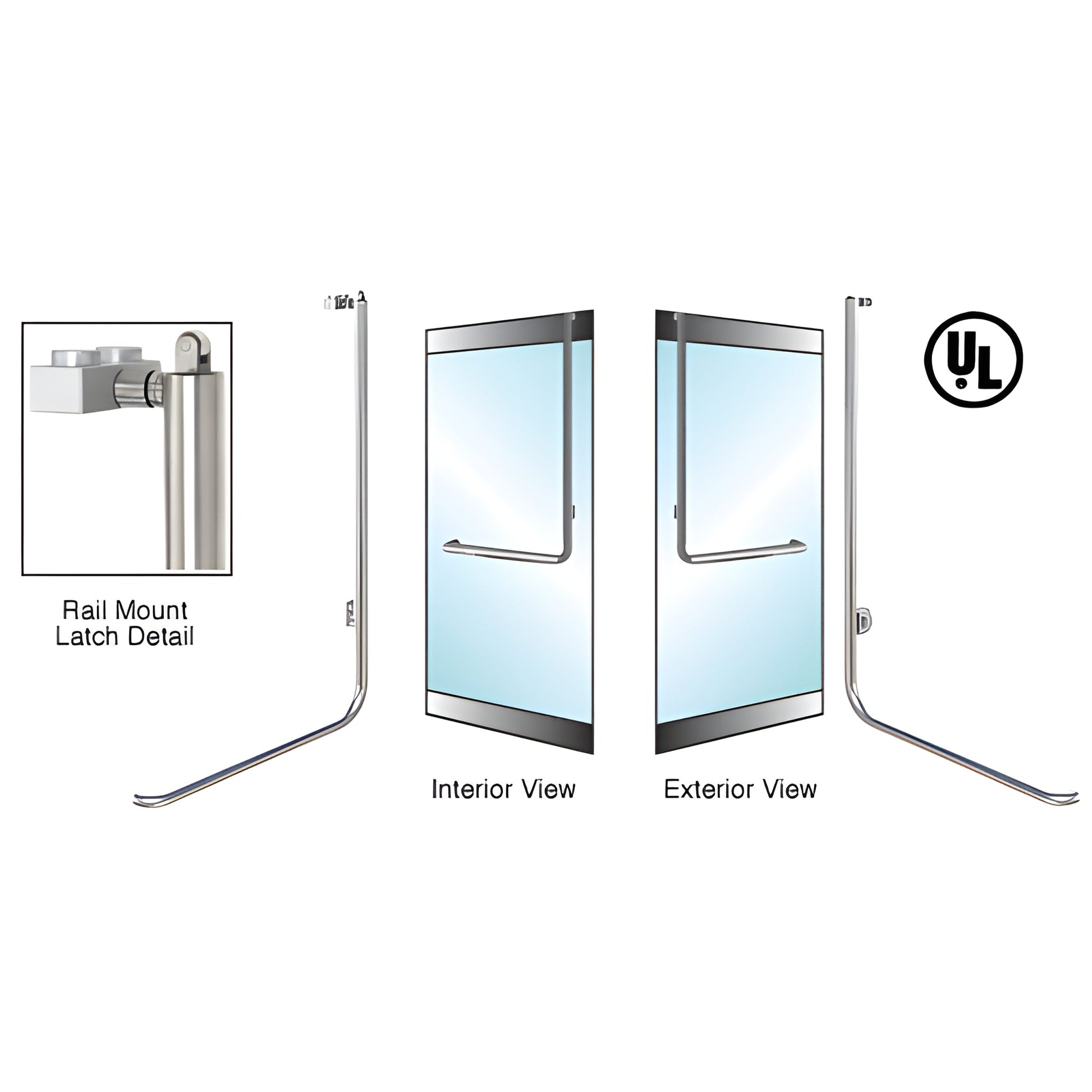

The Tubular PA100 Series panic handles feature an internal operating mechanism concealed within the vertical tubing that retracts the latch bolt when the interior actuation bar is pushed. An optional exterior keyed access device and special dogging feature allow the door to remain unlocked during business hours. Electronic strikes are available for remote keyless entry and secure access control options.

Designed to maximize viewing area and meet accessibility requirements, the slender 1-1/4" (32 mm) interior tube runs across the door and turns upward to clear the lower half of the door—helpful for meeting A.D.A. code constraints on all-glass doors. All PA100 Series models include a dogging lever to lock the device in the open position for daytime use and can be paired with electric strikes; custom headers with strike hardware are available.

SKU: 5P100D3RKPS — PA100 Series panic handle for 1/2" to 3/4" tempered glass doors, available in multiple stainless and brass finishes.

Stainless Steel Advisory:

Contact CRL Technical Sales to order or request custom finishes and sizes.
