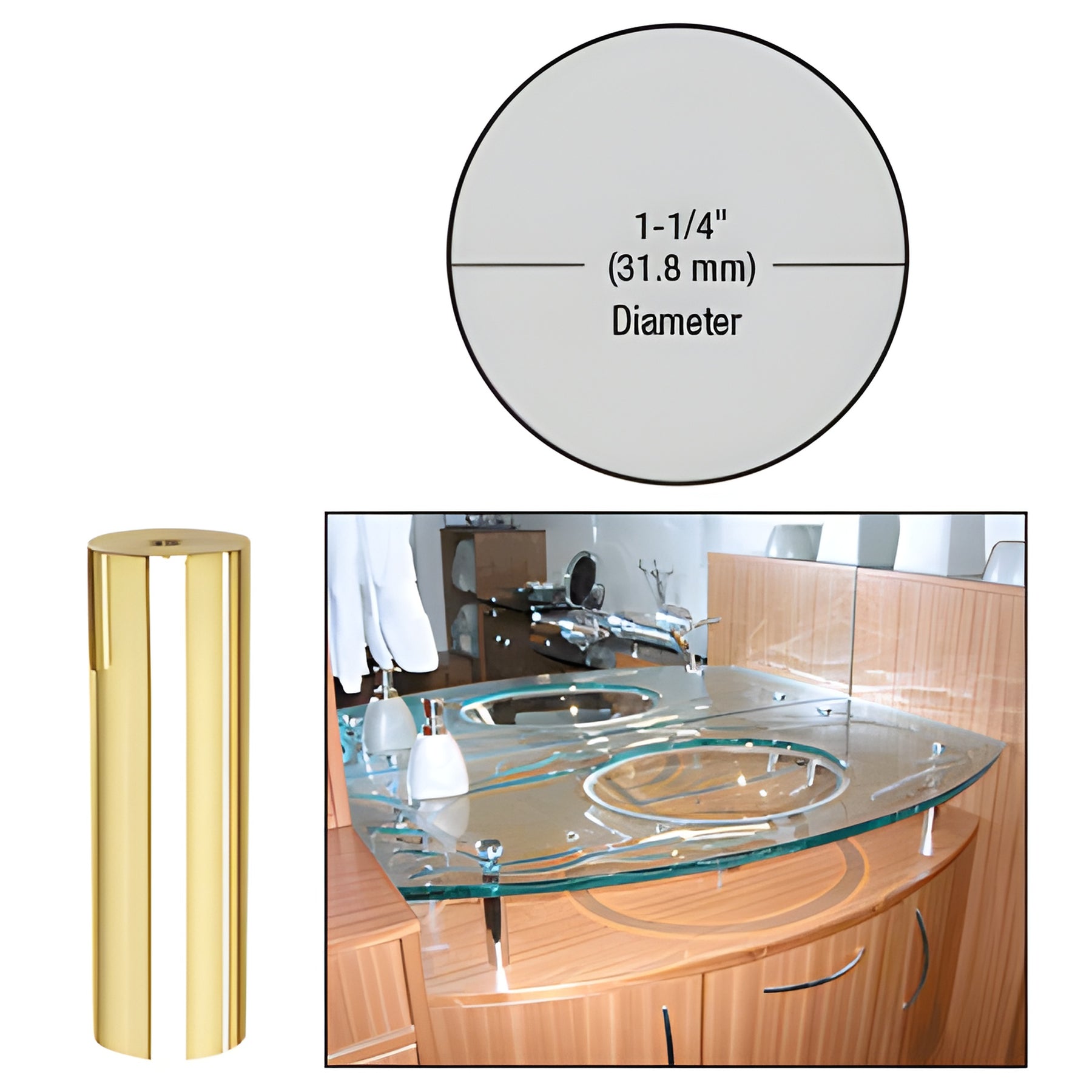

CRL Brass 1-1/4" Dia x 4" Glass Standoff Base

• Available in several lengths
• Custom lengths and finishes available
• Six popular decorator finishes
• Use with monolithic tempered glass

With CRL's 1-1/4" Diameter Standoff System (SKU: S0B1144BR) you can create multiple contemporary looks for retail, commercial, and residential projects. This 1-1/4" (32 mm) standoff system features interchangeable bases and caps to match design intent. By drilling 5/8" (16 mm) holes in glass, plastic, or wood panels and polishing the edges, you achieve a clean, modern display or signage solution. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through its complete length. Custom lengths and finishes are available—request a quote from our Technical Sales Department.

Available in many distinctive finishes, CRL Standoffs combine high-tech design with visual appeal. The system integrates with CRL Edge Grips and Swivel Fittings for maximum versatility. Standoff bases come in eight lengths, from 1/4" to 6" (6 to 152.4 mm). Matching cap assemblies are ordered separately.

The CRL Standoff System includes a complete range of mounting accessories available in any quantity to avoid unused components. For installation techniques or design assistance for standoff mounts and standoff signage systems, contact our Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) for Standard and Low Profile Caps, and 3/8" (10 mm) for Flush Mount Caps.

Product Warning:

Load capacity for standoff systems depends on wall or substrate anchoring and the material strength of the mounted panels. Verify substrate and anchoring before specifying for heavy panels.

Brass Finish Advisory:
