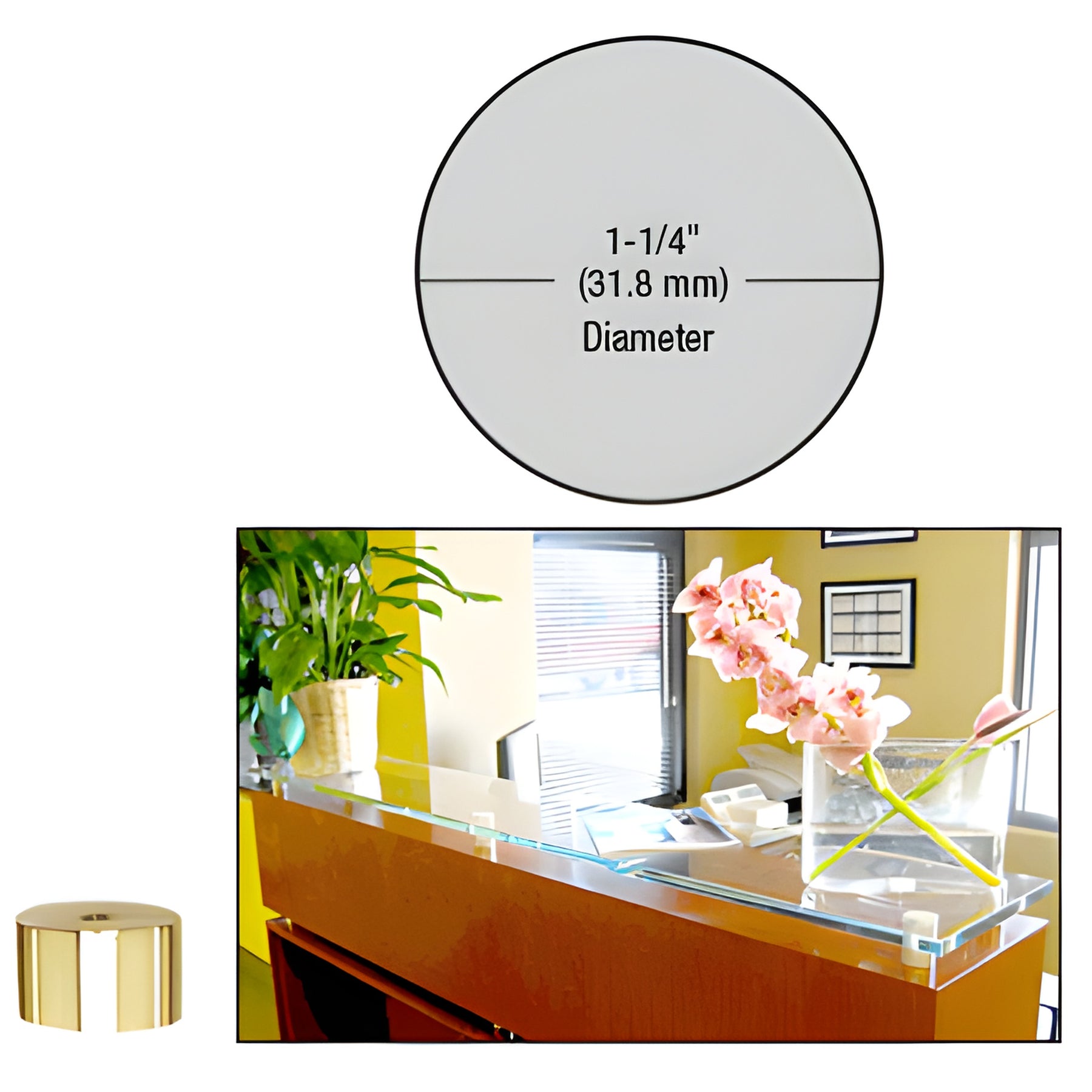

CRL Brass 1-1/4 in x 3/4 in Sign Standoff Base

• Available in Several Different Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can specify a versatile 1-1/4" (32 mm) architectural standoff system for glass panels, plastic or wood substrates. The variety of bases and caps lets designers and contractors create distinct looks for retail, commercial, and residential projects. Installation requires drilling 5/8" (16 mm) holes in panels and polishing or finishing edges for a contemporary finish. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through the complete length. Request a quote from our Technical Sales Department for custom lengths and finishes.

Available in many distinctive and popular finishes, CRL standoffs combine high-tech design with durable appearance. The system integrates with CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) standoff bases are offered in eight lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies are sold separately.

The CRL Standoff System includes a complete range of mounting accessories available in any quantity so you order only what you need—no leftover components. For installation techniques or design assistance with CRL standoffs contact the CRL Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (31.7 mm) diameter standoff bases is 1/4" (6 mm) with Standard and Low Profile Caps, and 3/8" (10 mm) with Flush Mount Cap.

Product Warning:

Due to diverse applications, weight limits for standoff systems depend on wall or substrate anchoring and material strengths. Verify anchoring and load capacity for your installation.

Brass Finish Advisory
