CRL Brass 90 Degree Glass-to-Glass Showcase Hinge for Display Cases
CRL Brass 90 Degree Glass-to-Glass Showcase Hinge for Display Cases
Regular price
$45.59 CAD
Regular price
Sale price
$45.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH138
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
1/4 in. (6 mm)
Height
1-3/16 in. (30.2 mm)
Material
Brass
Width
2 in. (50.8 mm)
Overview
- For 1/4" (6 mm) glass
- Use monolithic tempered glass
- Ideal for small all-glass showcases requiring a hinged front door
- Two 1/2" (12 mm) holes required

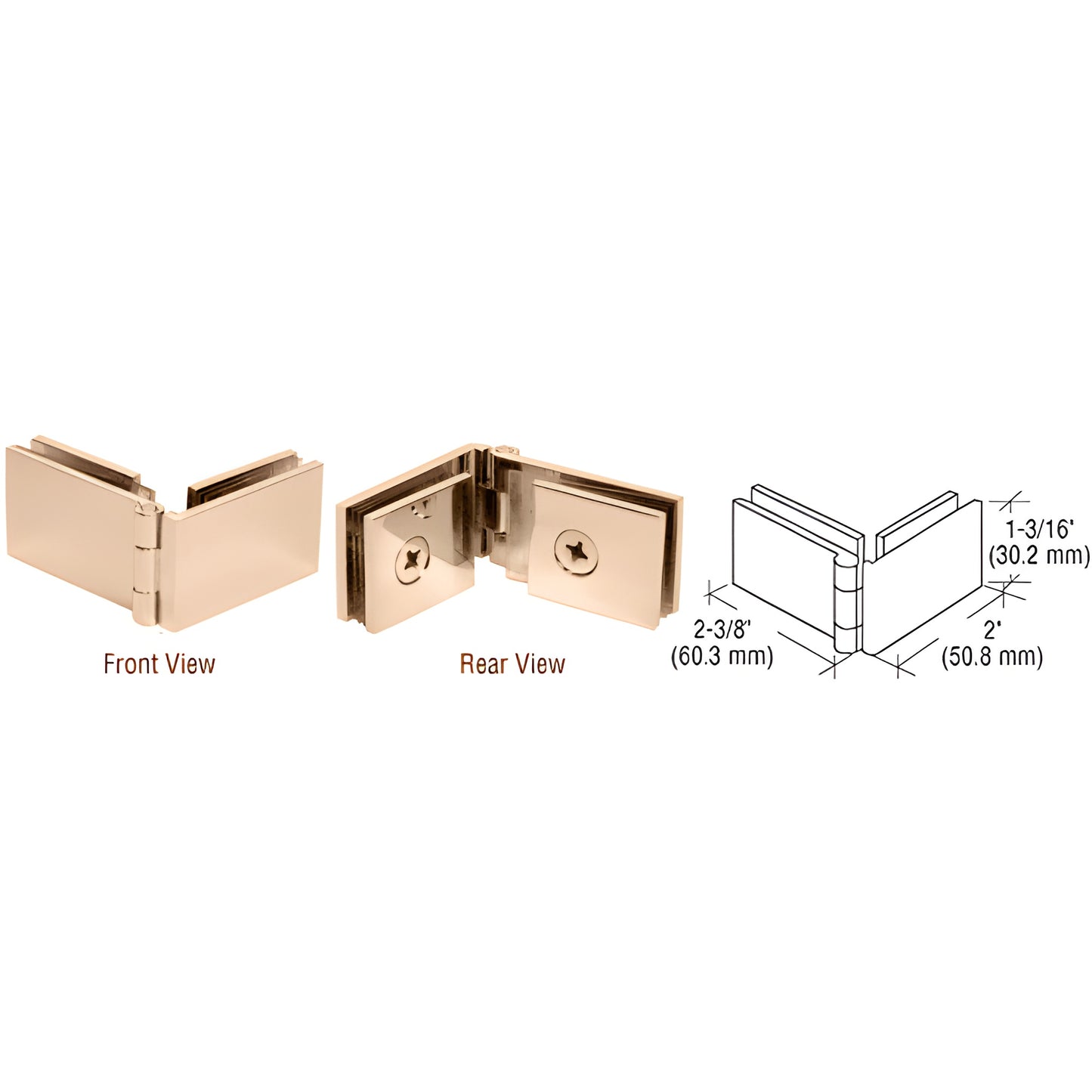

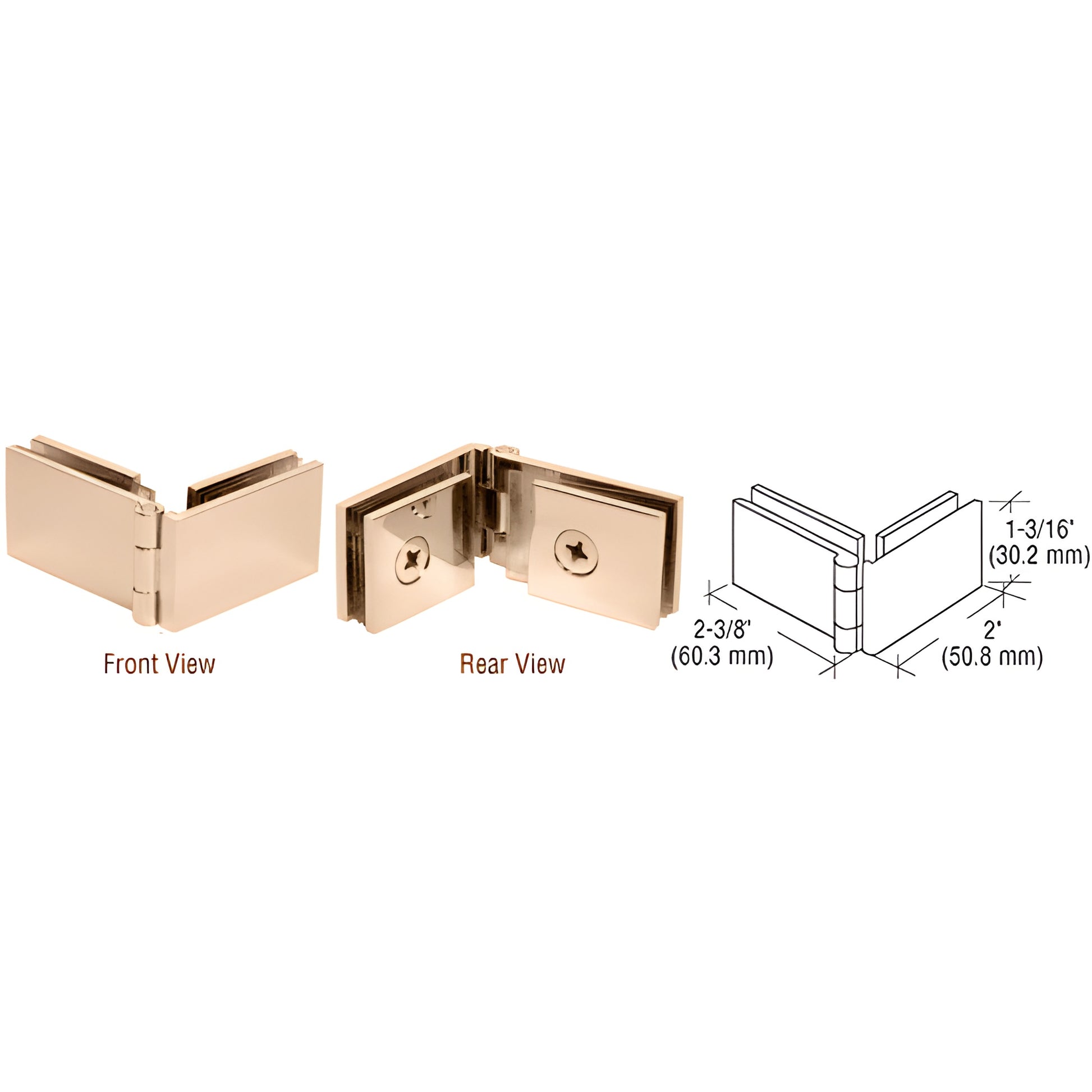

CRL 90 Degree Glass-to-Glass Showcase Hinges (SKU: EH138) are forged brass hinges designed for 90° glass-to-glass connections using 1/4" (6 mm) monolithic tempered glass. The overlapping lip prevents rotation for a secure fit, making these hinges ideal for small display cases and glass showcases with a hinged front door. Hinges are through-bolted and require two 1/2" (12 mm) holes in the glass; gaskets are included. Maximum recommended door width: 18" (457 mm). Maximum weight: 24 lbs. (10.9 kg).
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance information.
Order the EH138 90° glass-to-glass showcase hinge for secure, forged-brass hardware suited to small display cases—contact us to buy or request exact shipping weight.
