CRL Barcelona Brass Free-Swinging Double-Action Interior Door Hinge
Item# PTH350BR
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Brass
Glass Mounting Holes Diameter
5/8 in. (16 mm)
Glass Mounting Holes Required
2
Glazing Thickness
5/16 in. (8 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
- Solid brass construction
- Available in three designer finishes
- Fits 5/16" or 3/8" (8 or 10 mm) tempered glass

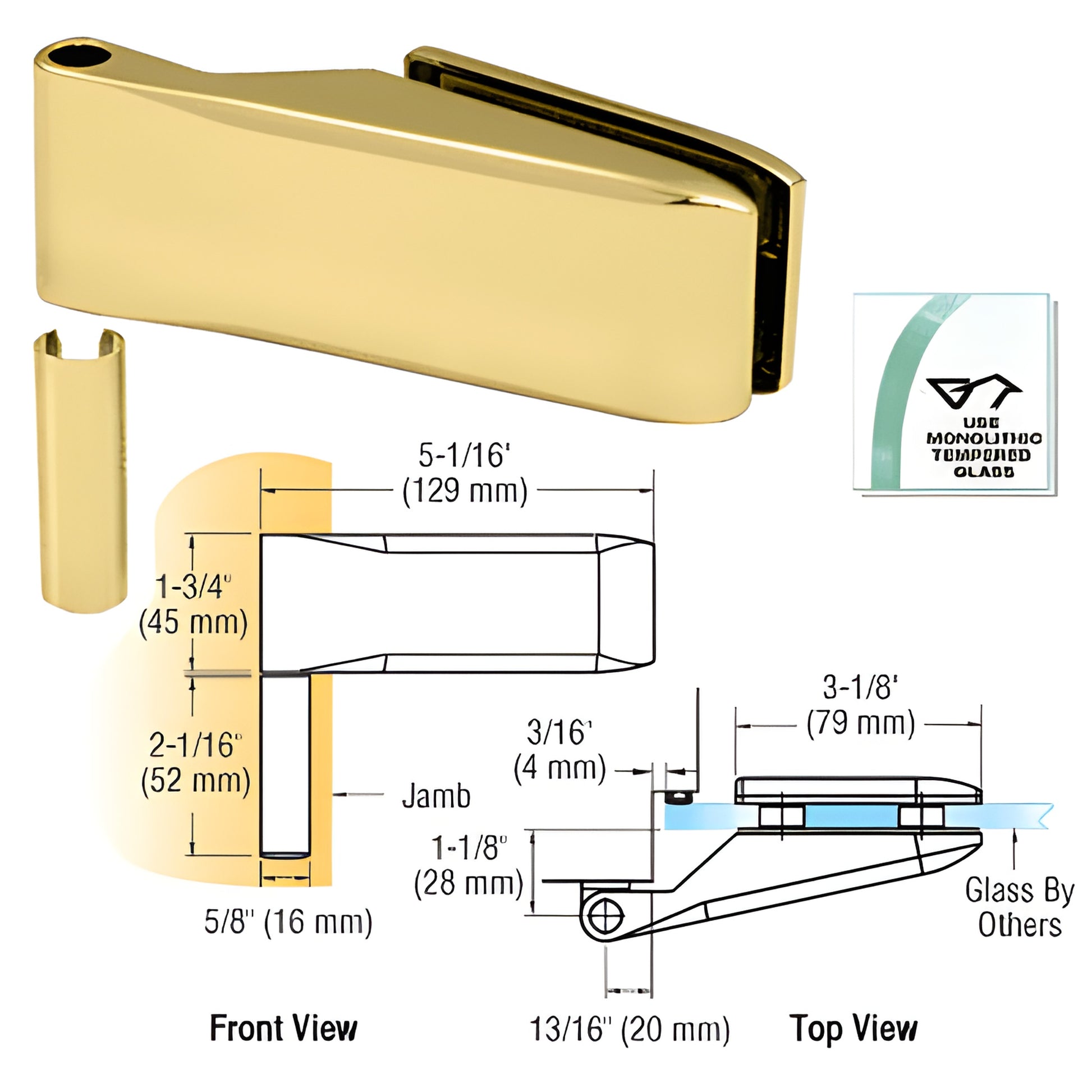

The CRL Barcelona Free-Swinging Interior Door Hinge (SKU: PTH350BR) is a solid brass hinge designed for tempered glass doors and interior applications. It supports a 180° swing and accommodates fully tempered glass panels 5/16" or 3/8" (8 or 10 mm) thick with a maximum weight of 99 lbs (45 kg) per hinge and a maximum door width of 39" (990 mm) per pair of hinges.
Glass fabrication: Two 5/8" (16 mm) holes required per hinge.
Mounting brackets are ordered separately — choose from three bracket models and multiple installation options. For matching hardware, see our PTH Series Latches.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before ordering. Product images show the actual product or a close representation; colors may vary based on monitor settings.
Brass Finish Advisory:
Brass is durable but can oxidize over time, which may cause a tarnished appearance. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Highlights: solid brass glass door hinge, free-swinging interior hinge for tempered glass doors, supports up to 99 lbs — ideal for glass shower doors and frameless interior glass installations.
Order PTH350BR now or contact CRL for technical support and bulk pricing.
