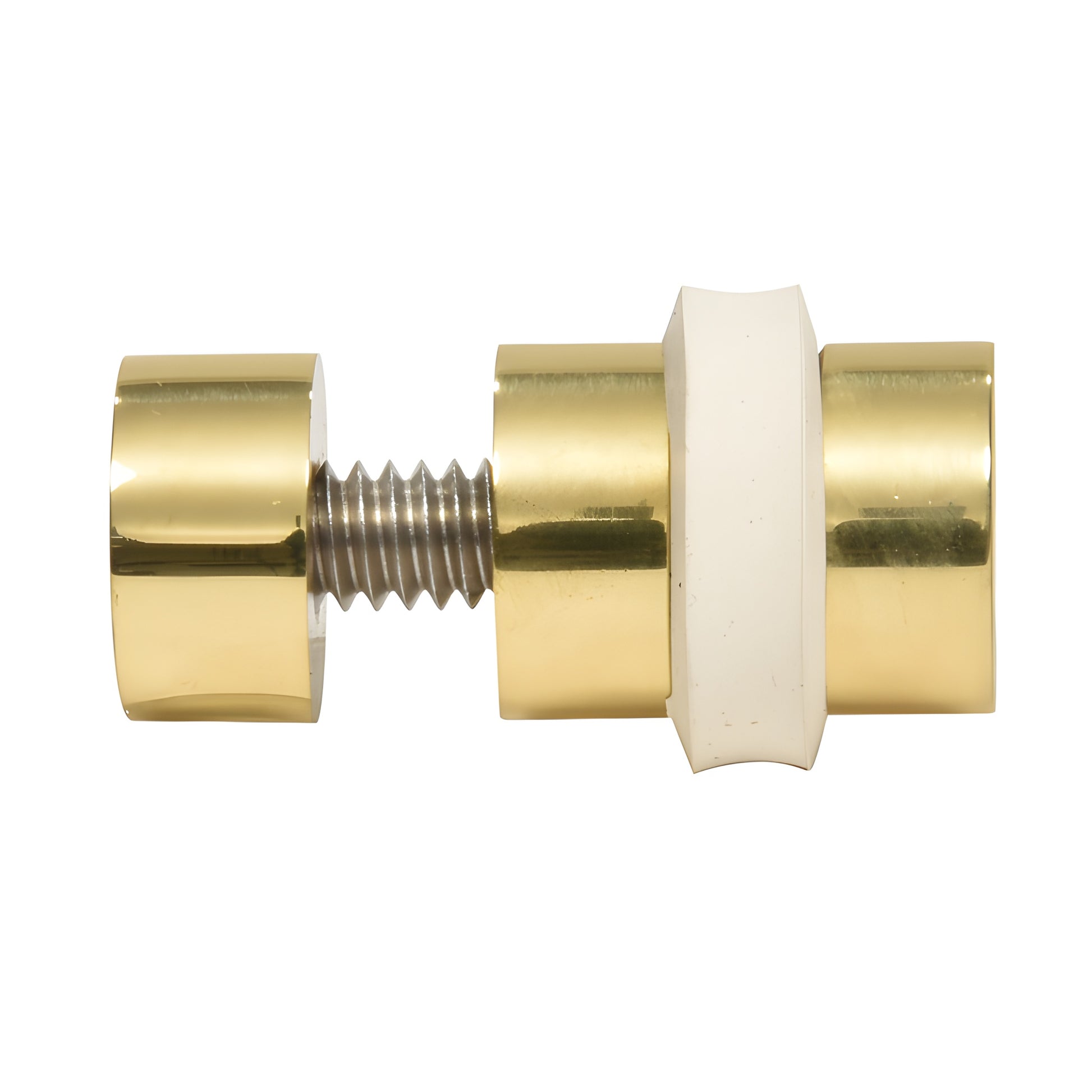

• GSR600BR polished brass through-glass shelf rest with 1/4-20 threaded rod and white spacer, for 1/4" tempered glass.
  • GSR600BR polished brass through-glass shelf rest with 1/4-20 threaded rod and white spacer, for 1/4" tempered glass.
1 2

CRL

CRL Brass-Plated Glass Shelf Support Bracket - Replacement Hardware

CRL Brass-Plated Glass Shelf Support Bracket - Replacement Hardware

$11.04 CAD
$11.04 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GSR600BR
Shipping Weight: 0.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
9/16
Finish/Color
Polished Brass
Material
Brass
Thread Size
1/4-20

Overview

  • Intended for Use with 1/4 in. (6 mm) Thick Tempered Glass Shelves

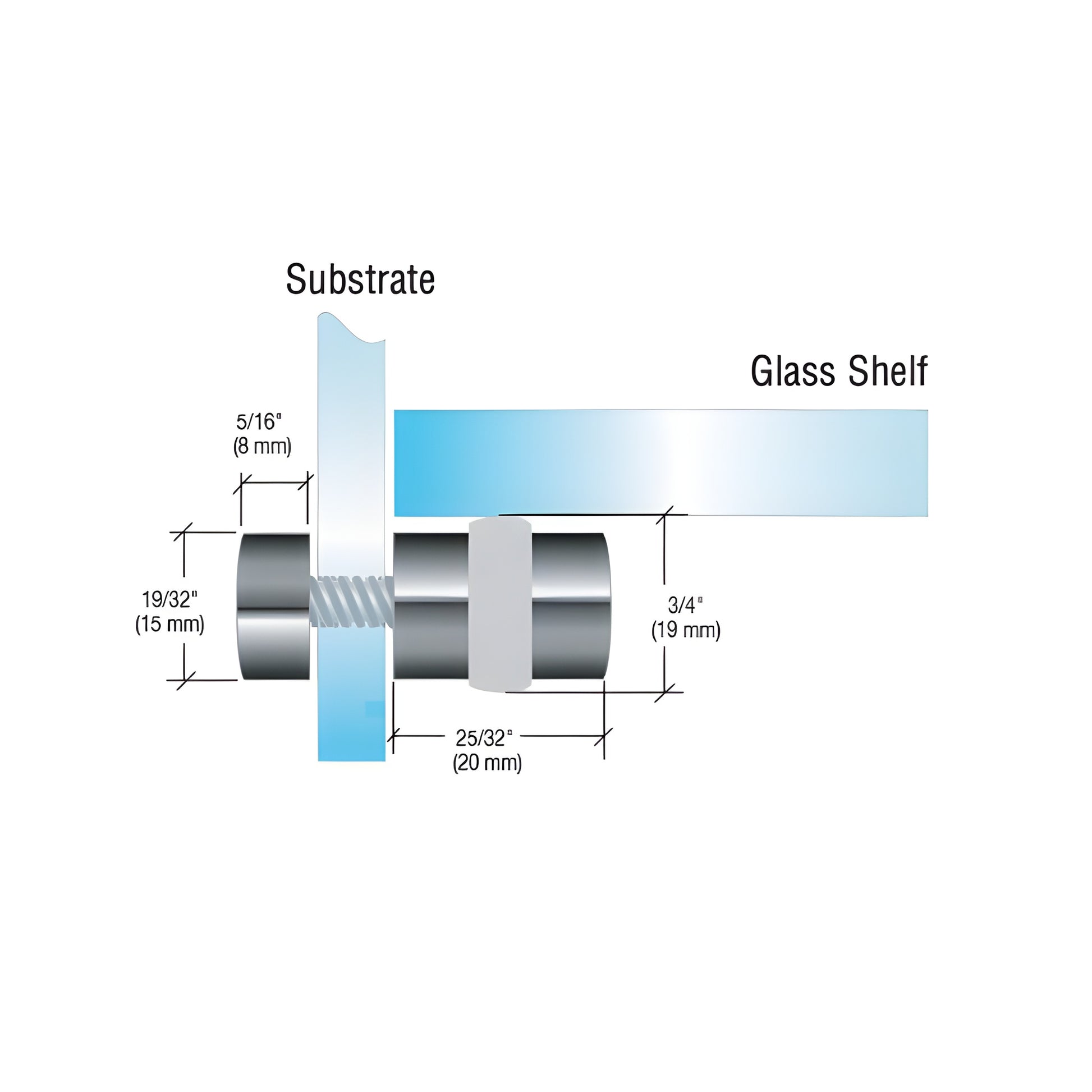

CRL Glass Shelf Rests — SKU GSR600BR are through-panel shelf supports engineered for 1/4" (6 mm) tempered glass and for attachment through wood or metal side panels. These low-profile shelf rests support glass with minimal visible metal, offering a cleaner, more discreet look than traditional shelf brackets. The included 1/4"-20 threaded rod can be replaced with longer AS14 Series rods for thicker non-glass substrates or with an HB14 Series hanger bolt to fasten directly into wood studs.


Installation requirements:

  • Glass panels: 3/8" (10 mm) thru-hole required
  • Wood & metal substrates: 1/4" (6 mm) thru-hole required
The 1/4"-20 threaded rod may be swapped for a hanger bolt for direct wood-stud attachment.


Note: Intended for use on 1/4" (6 mm) tempered glass, or metal or wood side panels.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please request this information from CRL Customer Service. Product images represent the actual product or a close representation; colors may vary by monitor and video card settings.

Brass Finish Advisory:
Brass finishes are durable but can oxidize over time, producing a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References for details.


Shop CRL GSR600BR glass shelf rests for a low-profile, through-glass shelf support—contact CRL Customer Service to confirm fit or place your order.

Specifications

Cleaning & Maintenance
Brass Finish Disclaimer
