Product Details
- Individual Supplementary Extrusions and Hardware Components to Convert Our Frameless Shower Door Kits Into Angled Enclosures or Wider Inline Units
- Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
- Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
- Use Monolithic Tempered Glass

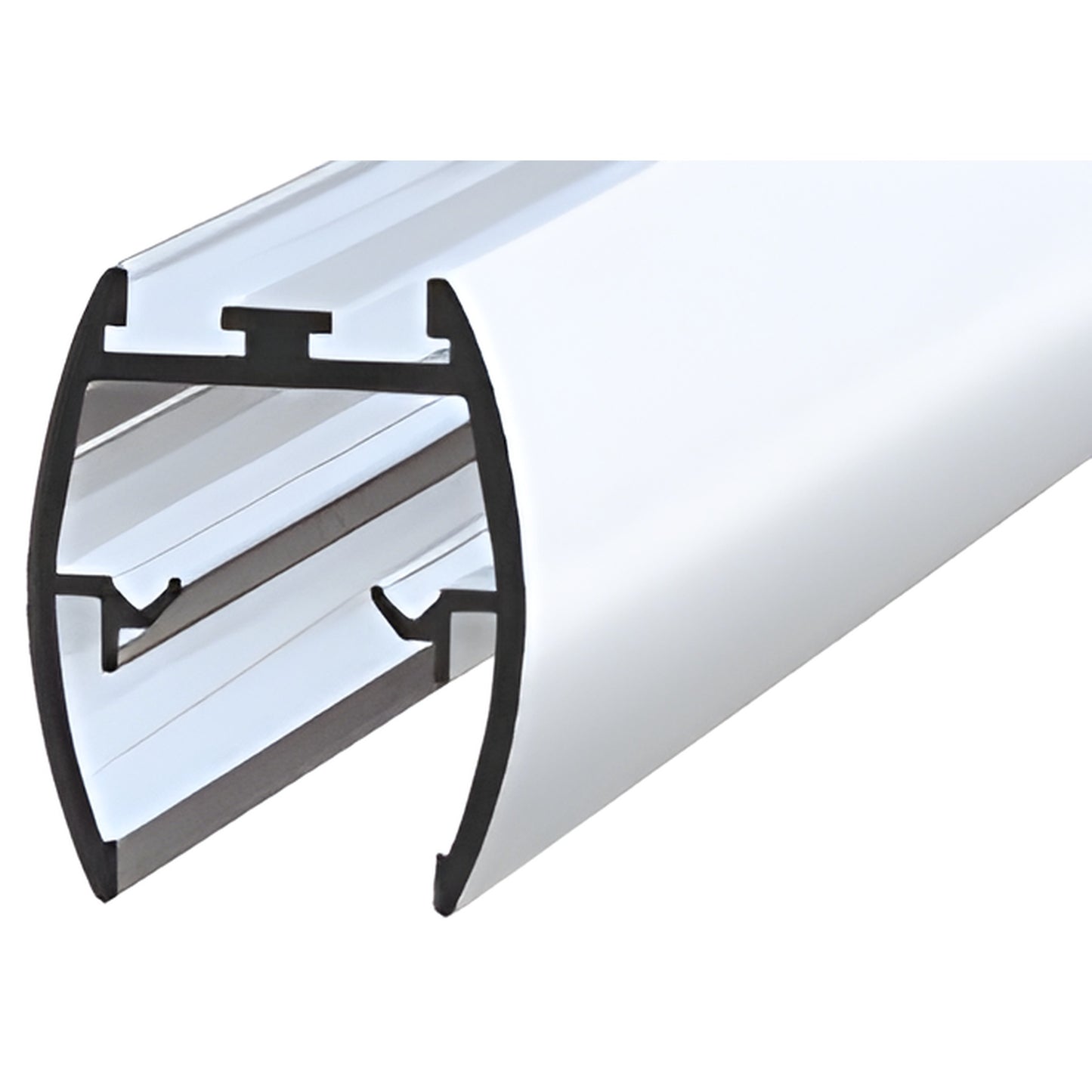

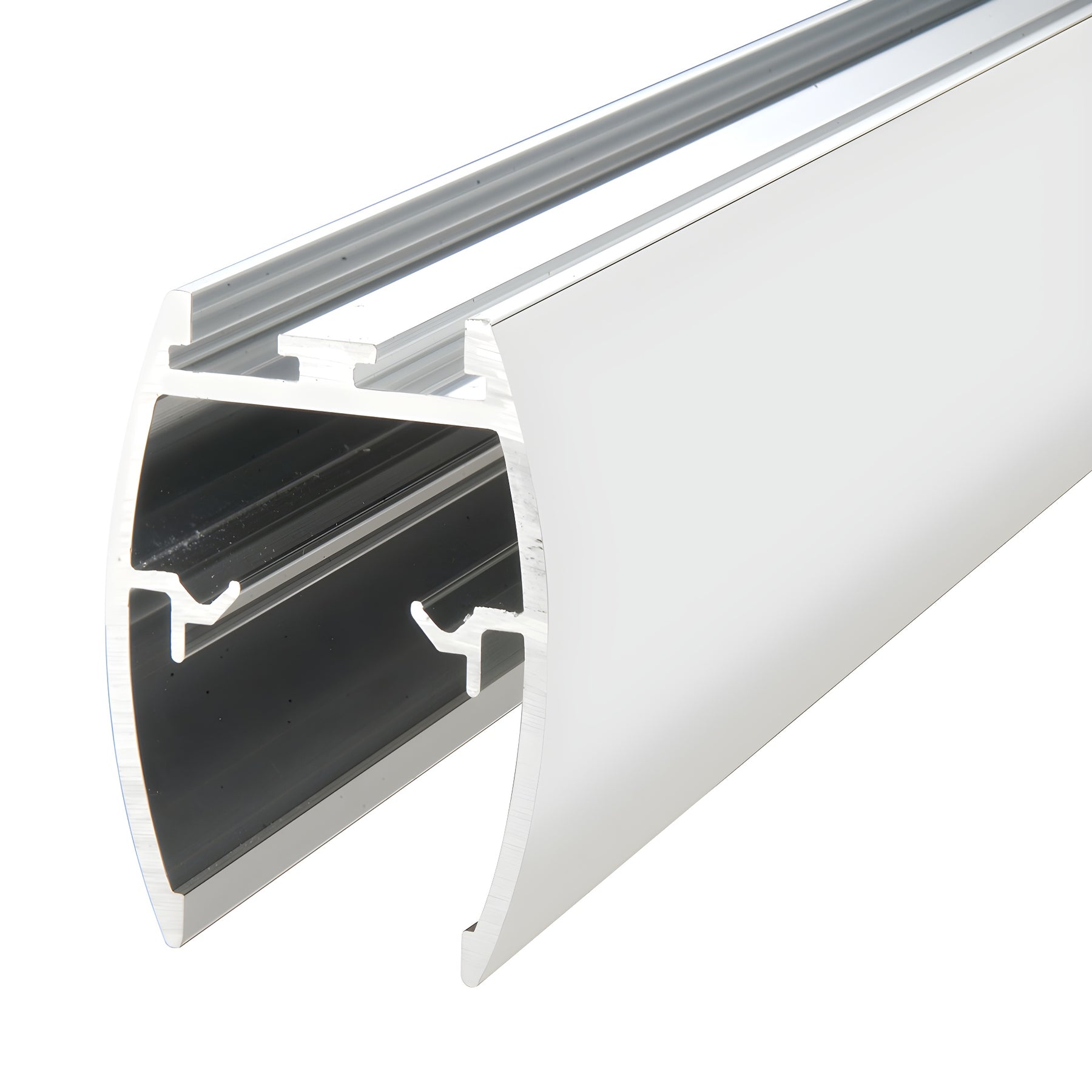

DK Cottage Series components were especially designed by CRL to add versatility to our Frameless Sliding Shower Door Kits. They allow the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Side Jambs, Bottom Sills, Sidelite Sills, and Clear Polycarbonate Vertical Jambs, along with Top Hangers and other accessory items round out the items available. Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.
NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.
SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)
