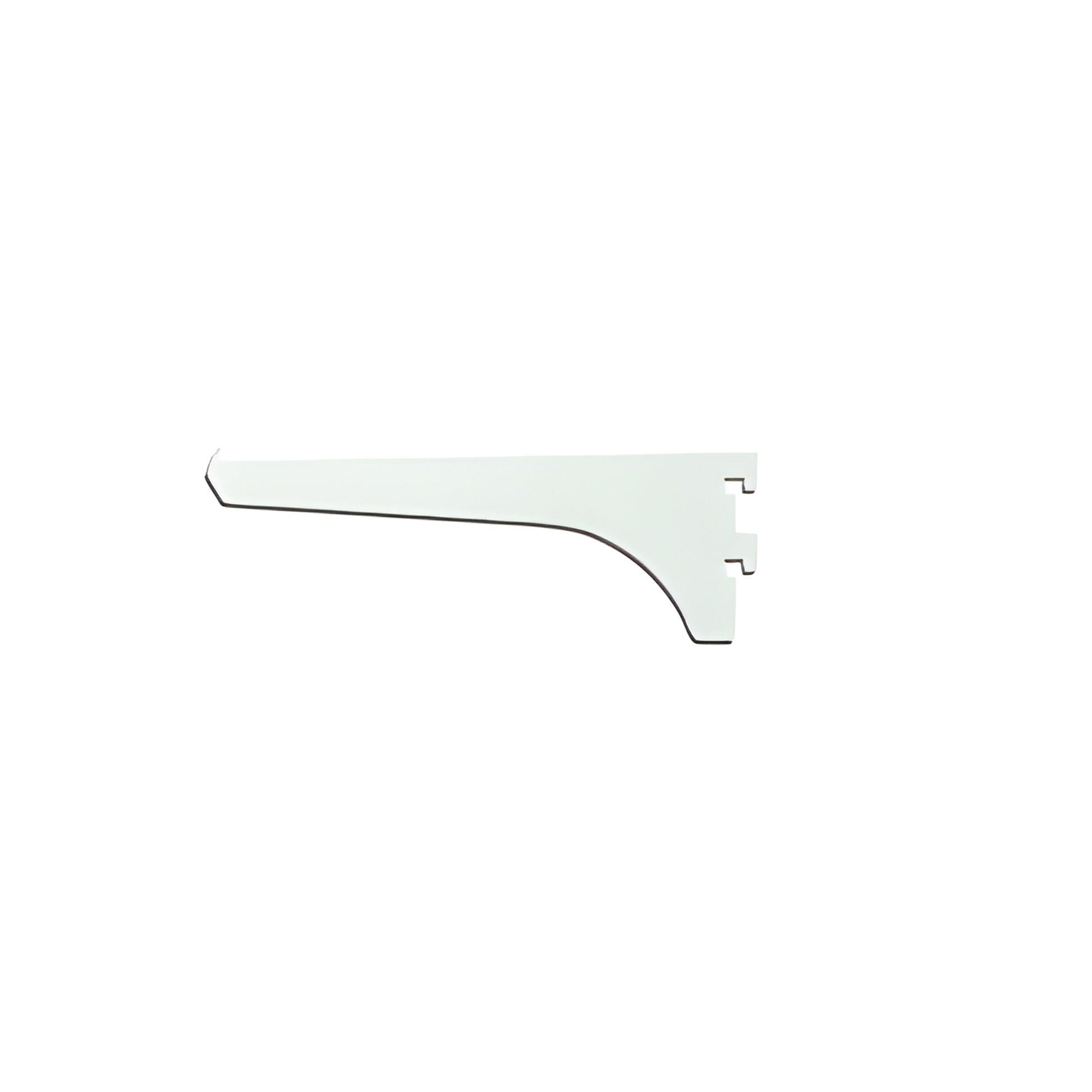

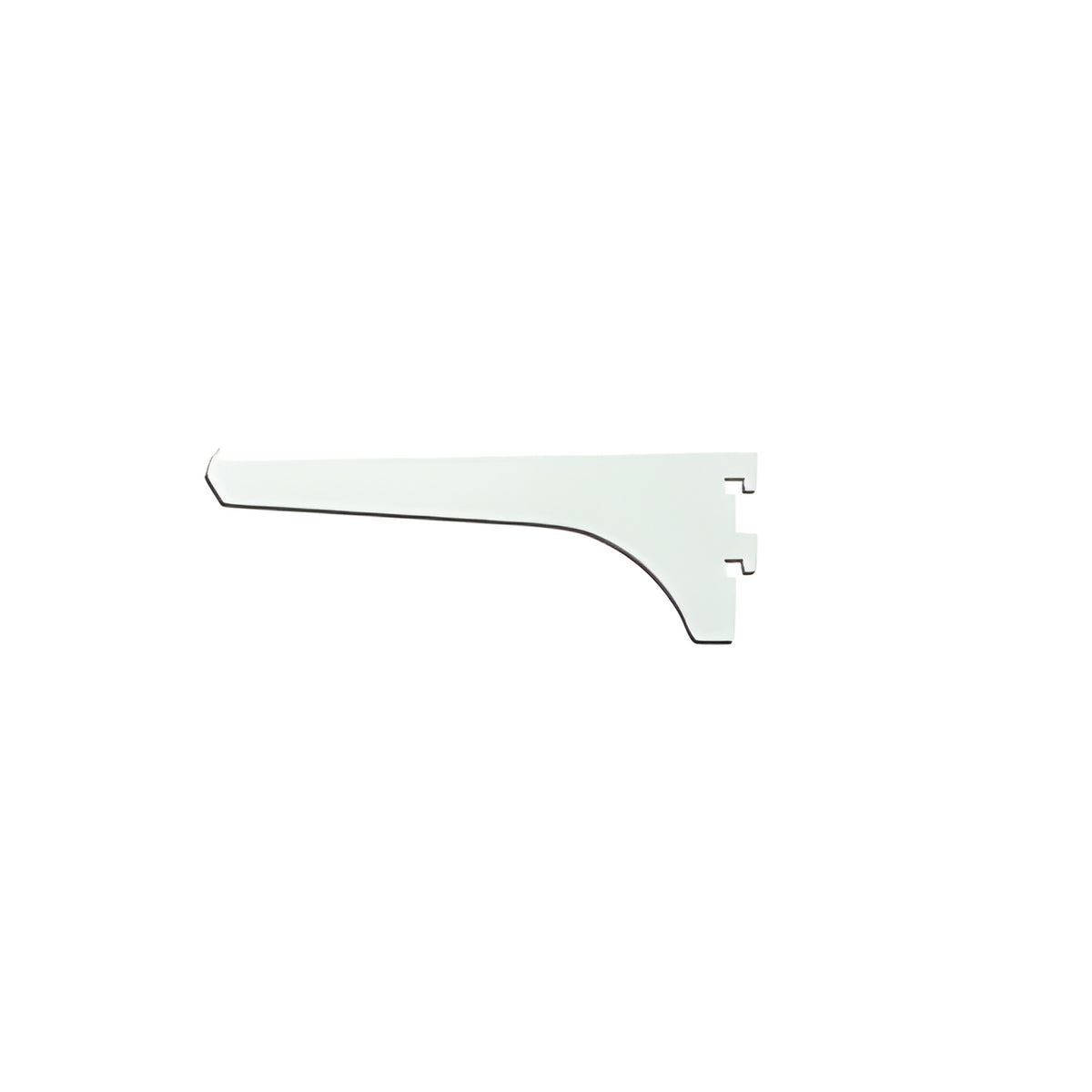

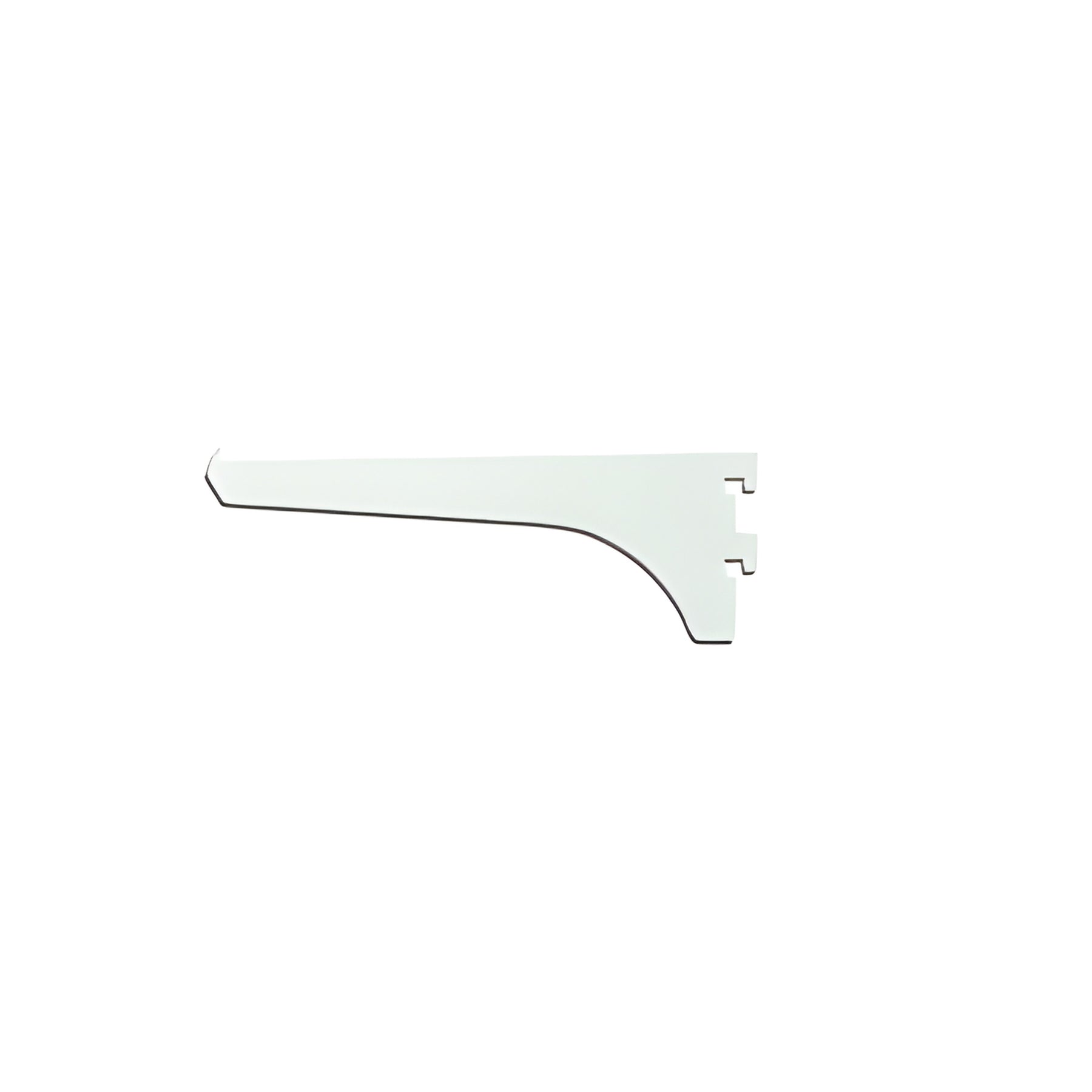

CRL Brite Anodized 6" Aluminum Bracket

• Available in several finishes
• Five finishes and five lengths: 4", 6", 8", 10", 12" (102, 152, 203, 254, 305 mm)
• Fits CRL Series 22 and Series 322 aluminum standards

CRL Aluminum Brackets (SKU: 122BA6) slip into hidden slots in our Series 22 and Series 322 aluminum standards for a clean, floating-shelf appearance. These brackets have no back flange and install quickly by tapping the bracket down into the standard—ideal for contemporary glass or wood shelving where a discreet mount is required.


Aluminum bracket weight capacities — based on two standards mounted 16" (406 mm) apart with screws into wall studs:

4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)


Compatibility & installation notes:

These aluminum brackets are not interchangeable with steel standards or bracket systems from other manufacturers. When installing glass shelves, deduct 1/16" from the shelf depth to accommodate the aluminum bracket.
