CRL Brite Anodized "Standard" Aluminum Upper or Lower Channel

• Used as Side Jamb, Top or Bottom Channel
• Made from Highest Quality No. 6063 Alloy
• Available in Several Finishes

The

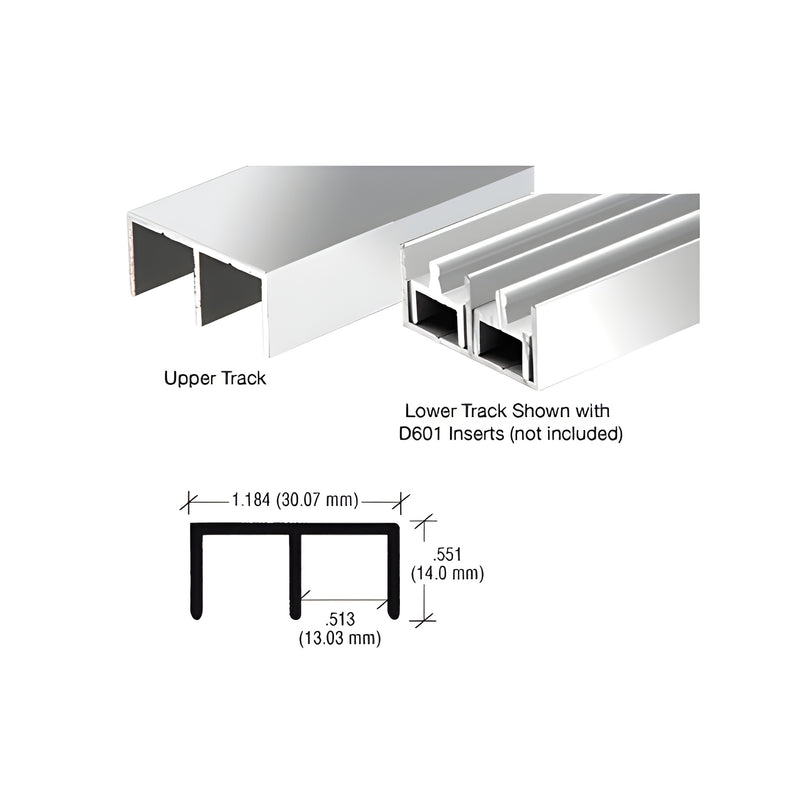

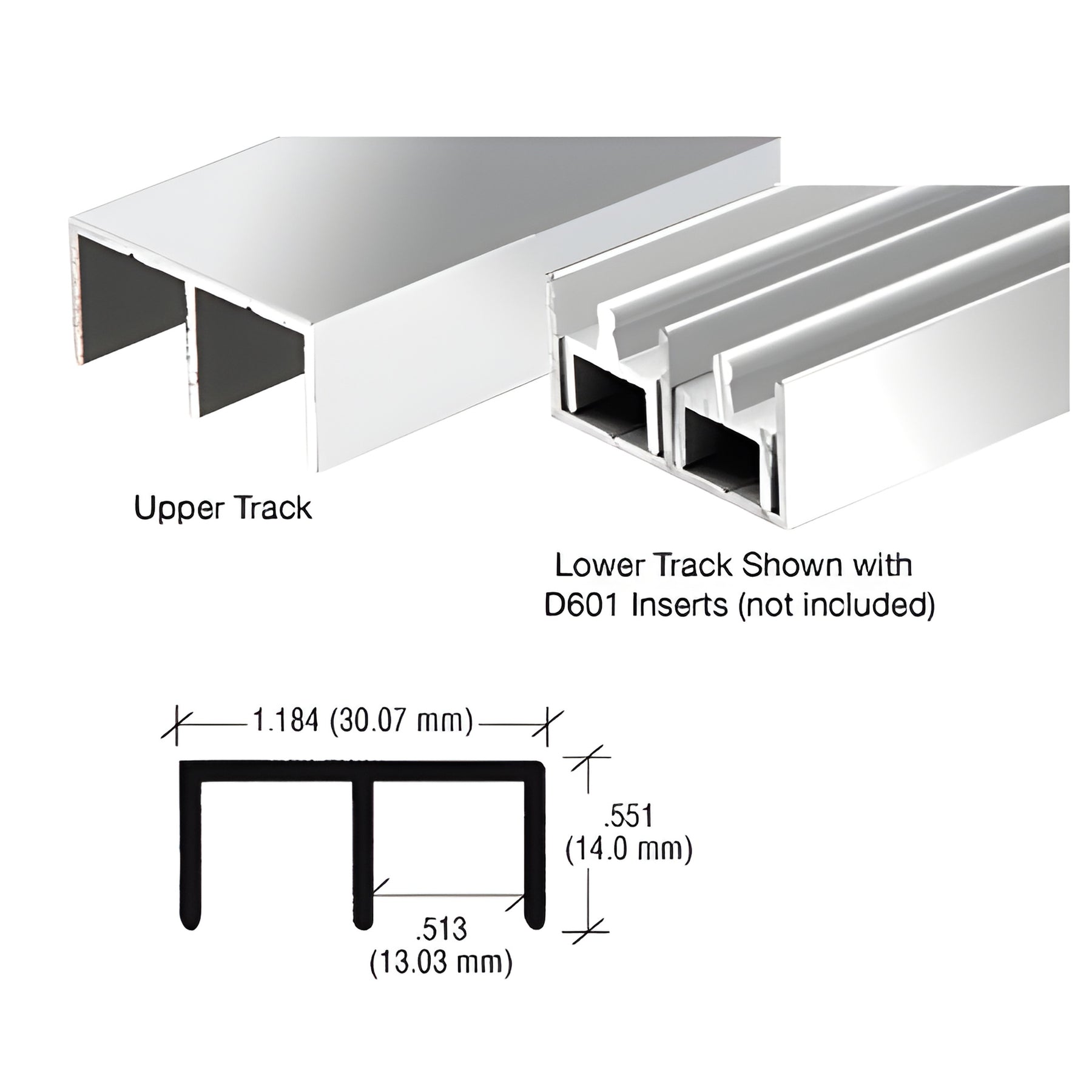

CRL Upper or Lower Channel for Track Assemblies

are among the most popular channels we sell, they are available in several finishes. Universal double track. Interchangeable with most sliding tracks on the market. May be used as a slide jamb, top or bottom channel. One of the most popular channels we sell, it maybe surface or recessed mounted.

CRL Aluminum Extrusions and Accessories

allow you to customize track assemblies to your individual needs. Made from the highest quality, No. 6063 alloy T-5 aluminum, our extrusions are uniformly anodized. Anodizing is the process of electronically adding a thicker coat of oxidizing to aluminum, which protects the metal from scratches, blemishes and atmosphere.

6063-T5 Aluminum Alloy

.053 (1.35 mm)

12' (3.66 m)

Bottom Channel or Side Jamb.

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
