CRL Brite Anodized Sliding Door Track D603/D602 with Ball Bearings

• D2203 Series
• With D649 Ball Bearing Wheels
• An Excellent Choice for Display Cases & Cabinet Doors
• Choose From Two Styles of Upper Channel
• Available in Up to Six Finishes
• 12' (3.66 m) Length

CRL's 12' (3.66 m) Low Profile Rolling Track Assemblies are complete kits that include extrusions, wheels, and guides for fast installation of 1/4" (6 mm) tempered glass sliding doors. Built for retail and display applications—trophy cases, china cabinets, and store showcases—these low-profile rolling track assemblies provide smooth operation and design flexibility. Key differentiators: D649 steel ball bearing wheels for reliable, long-lasting performance and the option of Nylon or Steel Ball Bearing Wheel Assemblies to match load and noise requirements. Optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

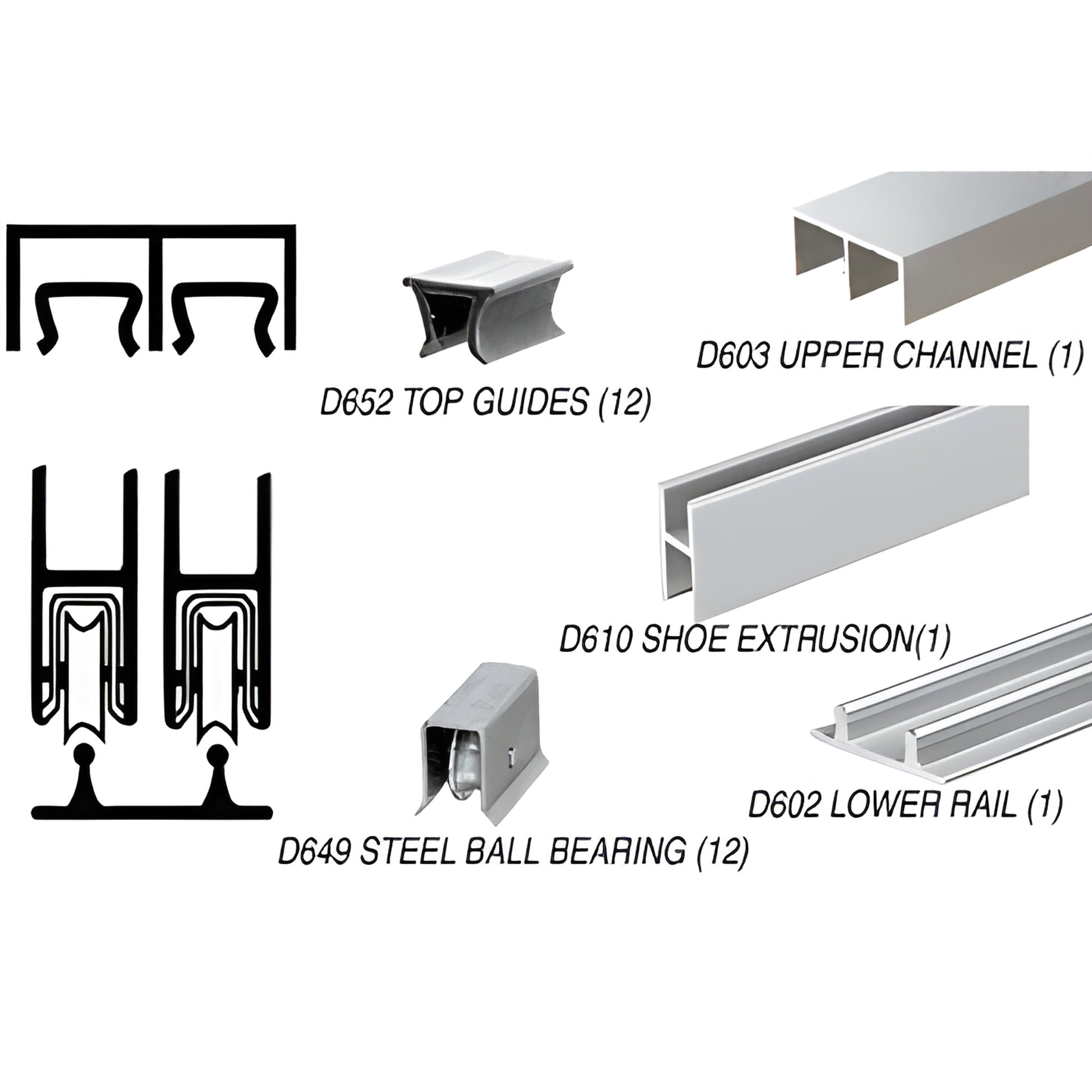

Components for D2203BABB

D602 (x1)
D603 (x1)
D649 (x12)
D610 (x1)
D652 (x12)
D9650 (x1)


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

If you need a very tight fit, calculate your own dimensions. The dimensions shown are guideline dimensions satisfactory to most installers.

D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-5/8"
