Product Details

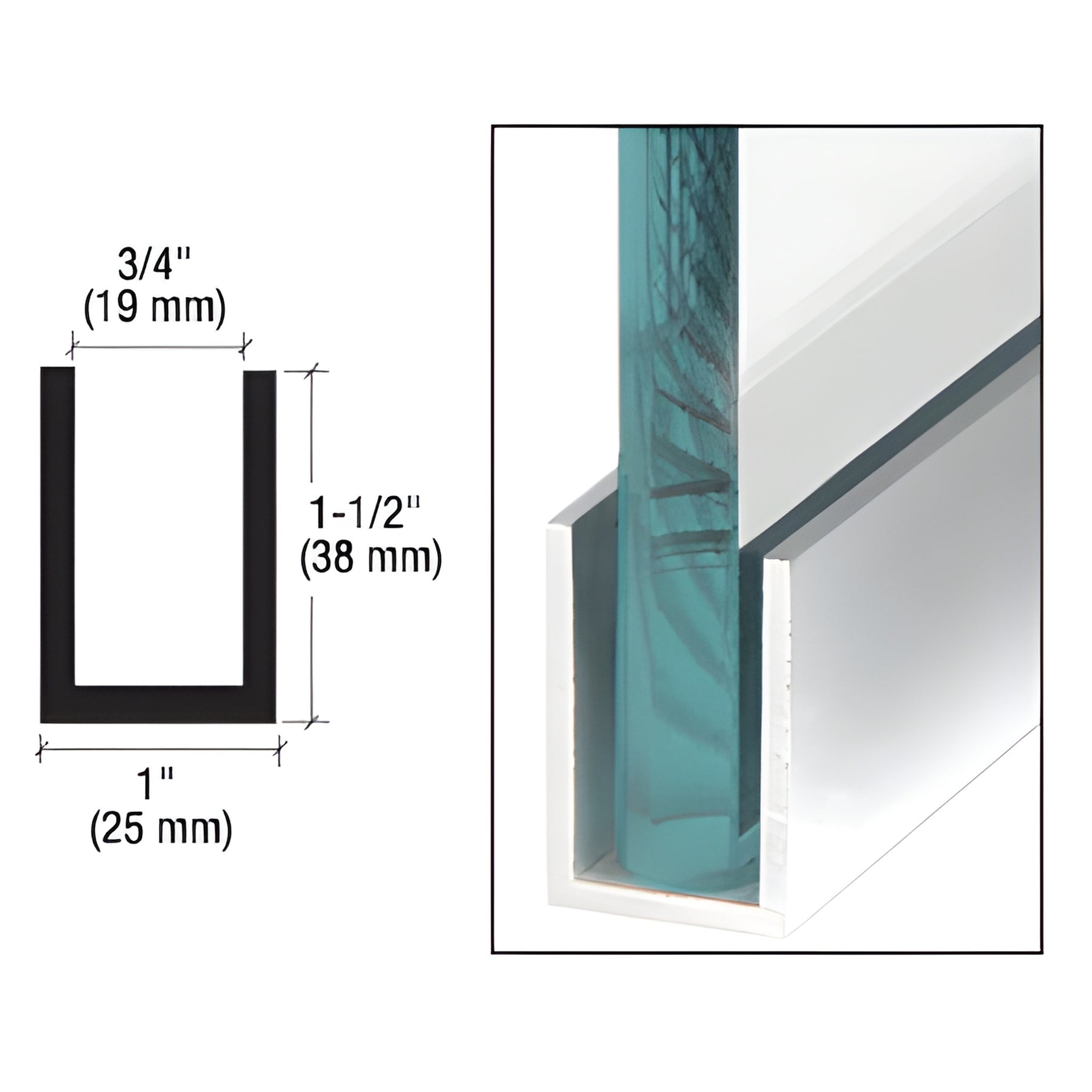

- Deep 1-1/2" (38.1 mm) Height
- Use Monolithic Tempered Glass
- Typically Used at the Bottom of Glass Panels
- Use With Silicone (Wet) or Glazing Gasket (Dry)
- Matching End Caps Sold Separately
CRL Shallow and Deep Wet Glaze U-Channels provide the smallest profile U-Channel for glazing 3/8" or 1/2" (10 or 12 mm) glass. They are available in six standard finishes in both 120" (3.05 m) and 240" (6.10 m) stock lengths. These U-Channels provide the most economical way to glaze heavy glass. Using the Deep U-Channel on the top and Shallow U-Channel on the bottom allows for the 'lift and drop' method of glazing. The glass can be secured with silicone sealant or our Top Load Roll-In Glazing Gasket.
For Cladded U-Channels, custom finishes, powder coating or custom lengths, contact CRL Commercial Products Technical Sales Department.
Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.
You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".
Product Warning:
PS, BS, PB, SB, ORB Finishes are all Cladded.
