CRL Brite Chrome Vernon Oil Dynamic 180° Shower Glass Hold-Open Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body available in multiple finishes
• Hold-open and no-hold-open models available
• Adjustable closing speed via control valve
• Great alternative to floor closers and patch fittings for all-glass doors

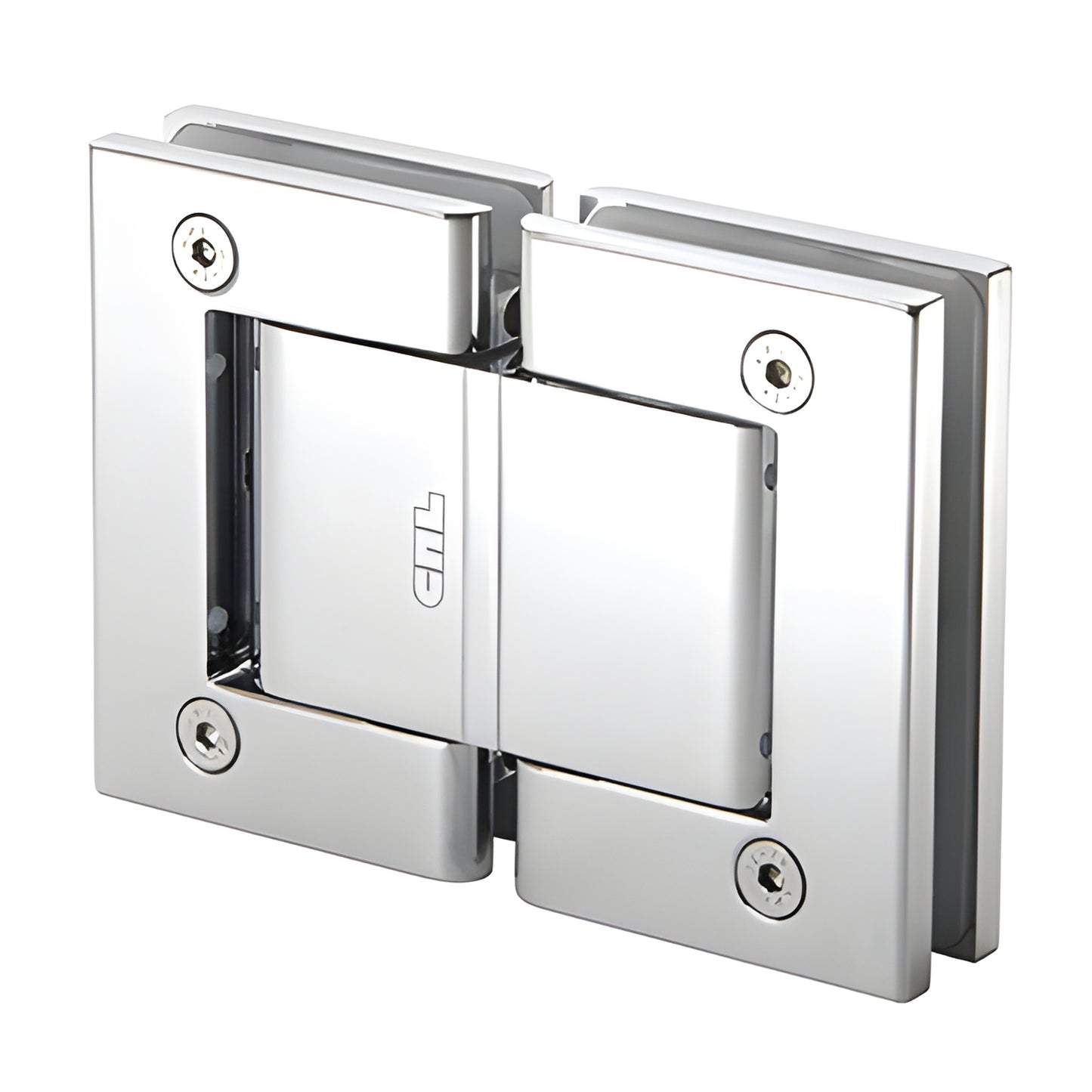

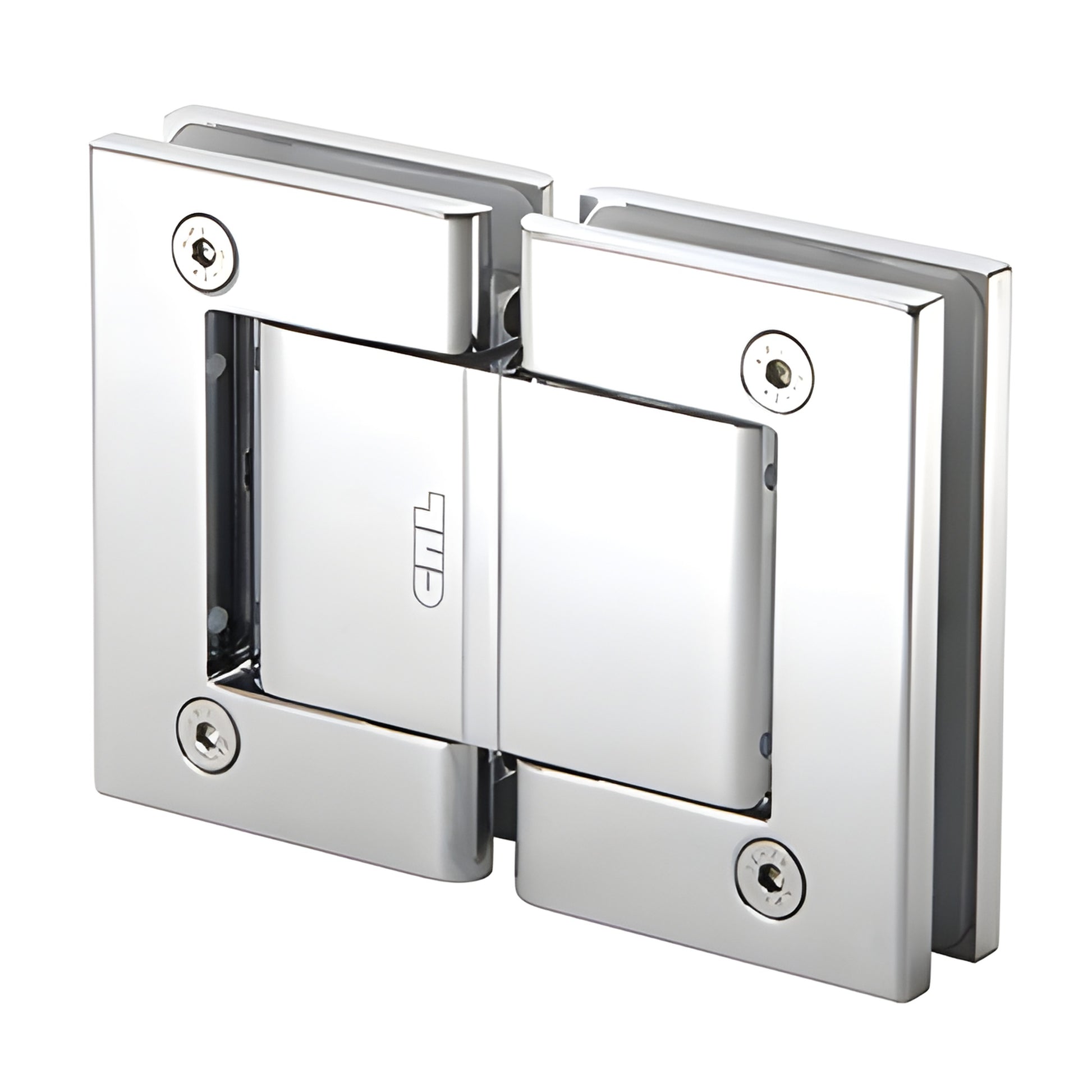

CRL 180º Glass-to-Glass Hinge (Oil Dynamic Hinge) — SKU: H8015CH

This Oil Dynamic Hinge combines automatic mechanical action with hydraulic control to create a compact, self-closing glass door solution ideal for interior commercial and residential applications (not for shower doors). The hinge swings both in and out to 90º with positive stops at 0º and ±90º, and features an adjustable closing speed to fine-tune door operation. Designed to eliminate the need for floor-mounted or overhead closers, it enables retrofit installation of all-glass doors without extensive floor or overhead modifications.

Properly installed (use only two hinges), this hinge supports a glass door up to 39" (1 m) wide and a maximum total weight of 176 lbs. (80 kg). The ambidextrous design and proven oil-damped mechanism deliver smooth, reliable self-closing performance—tested to over 1 million cycles.

SPECIFICATIONS:

• Glass thickness range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge swings: 90º inward and outward (except model 31M8060, which is single-direction)
• Closing type: Automatic closing from 0º to 80º
• Special features: Hold-open at 90º (hold-open optional); adjustable closing speed
• Cut-out required for glass

Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws.

Maximum capacities using two hinges: Door width: 39" (1 m); Door weight: 176 lbs. (80 kg). Do not use more than two hinges per door.

Product warning: Use only the included template for cut-outs. Do not use more than two hinges on one door. For alternate uses, obtain approval from CRL Technical Sales. Cut-out dimensions for CRL hinges may differ from other brands.

Order the CRL Oil Dynamic self-closing glass hinge (SKU H8015CH) today to upgrade to a clean, all-glass door solution with hydraulic closing control.
