- Designed for 3/8" (10 mm) Glass
- Bolt-Through Top Hangers Provide for Immediate Fabrication and Installation
- Available in Brite Anodized, Brite Gold Anodized, Brushed Nickel and Oil Rubbed Bronze
- Utilizes Traditional Metal Side Jambs
- Custom Units Also Available
- Use Monolithic Tempered Glass
- Extrusions (Aluminum)
- Towel Bar (Brass Tubing)
- Knob (Solid Brass) Glass Thickness:
- 3/8" (10 mm) (Glass not included in Kit) Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel) Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

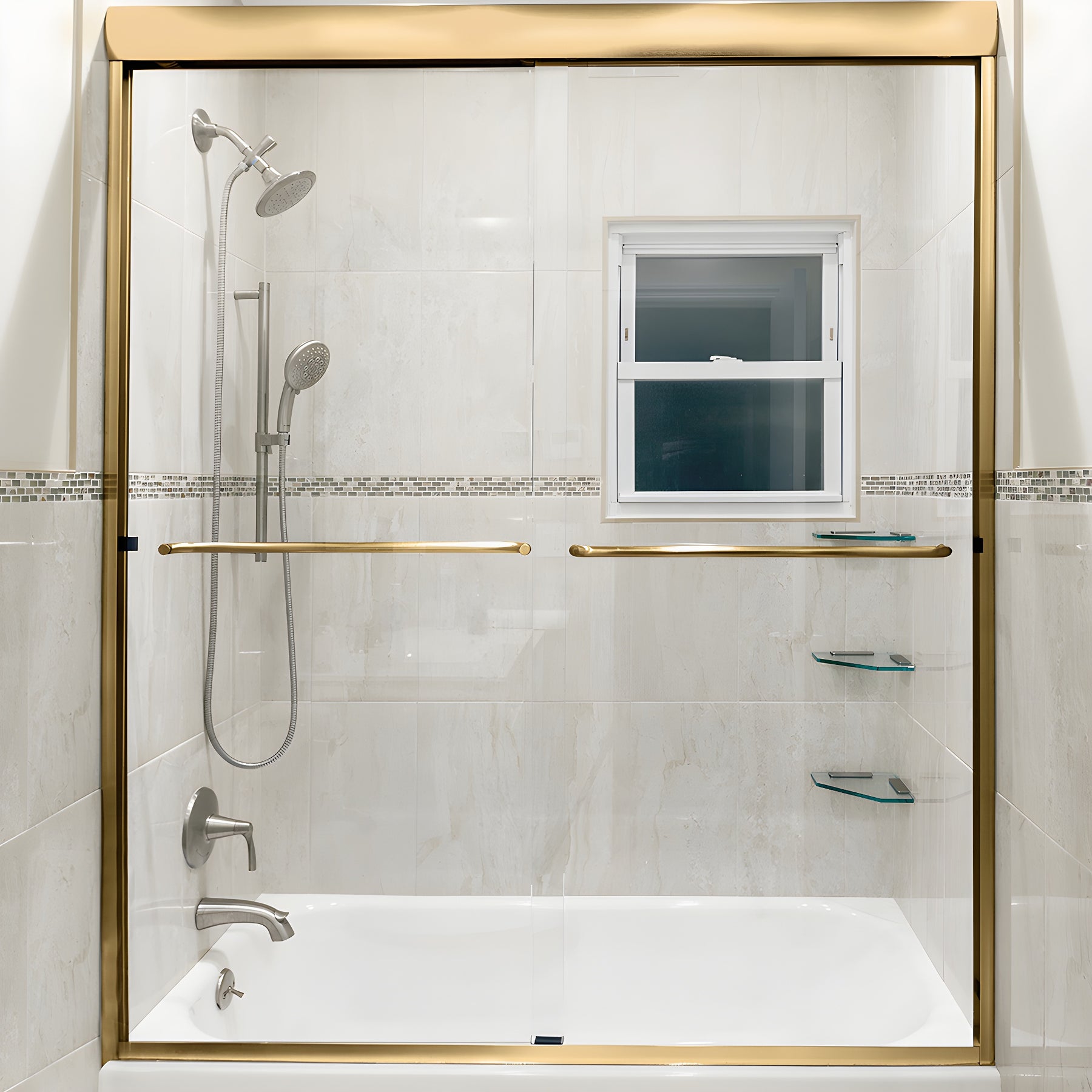

Cottage Series DK Sliders
utilize metal side jambs for a traditional frameless sliding shower door appearance. Bolt-Through Top Hangers allow immediate fabrication and installation, with no waiting for messy adhesive to dry. Our DK Series Kits come in Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes, with other finishes available on special order.
The top hung stock units include: Extruded Aluminum Header, Side Jambs, and Bottom Sill; Top Hangers for 3/8" (10 mm) glass, Back-to-Back Knob, 24" (610 mm) Towel Bar, Nylon Rollers, Bottom Guide, Screws, and Bumpers.
Tempered glass and silicone sealant are supplied by the installer to complete the installation. Since all rollers are overhead, the Bottom Sill and Side Jambs are uncluttered, making cleaning easy. Available in up to six stock sizes. Extrusions, Bottom Guides, Hardware Packages, plus other accessories may be ordered separately. Custom Kits are available in multiple configurations and are cut-to-size for easy field installation,
click here
to inquire about custom sizes.
SPECIFICATIONS
Materials
Extrusions (Aluminum)
Towel Bar (Brass Tubing)
Knob (Solid Brass)
Glass Thickness
3/8" (10 mm) (Glass not included in Kit)
Glass Fabrication
Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
