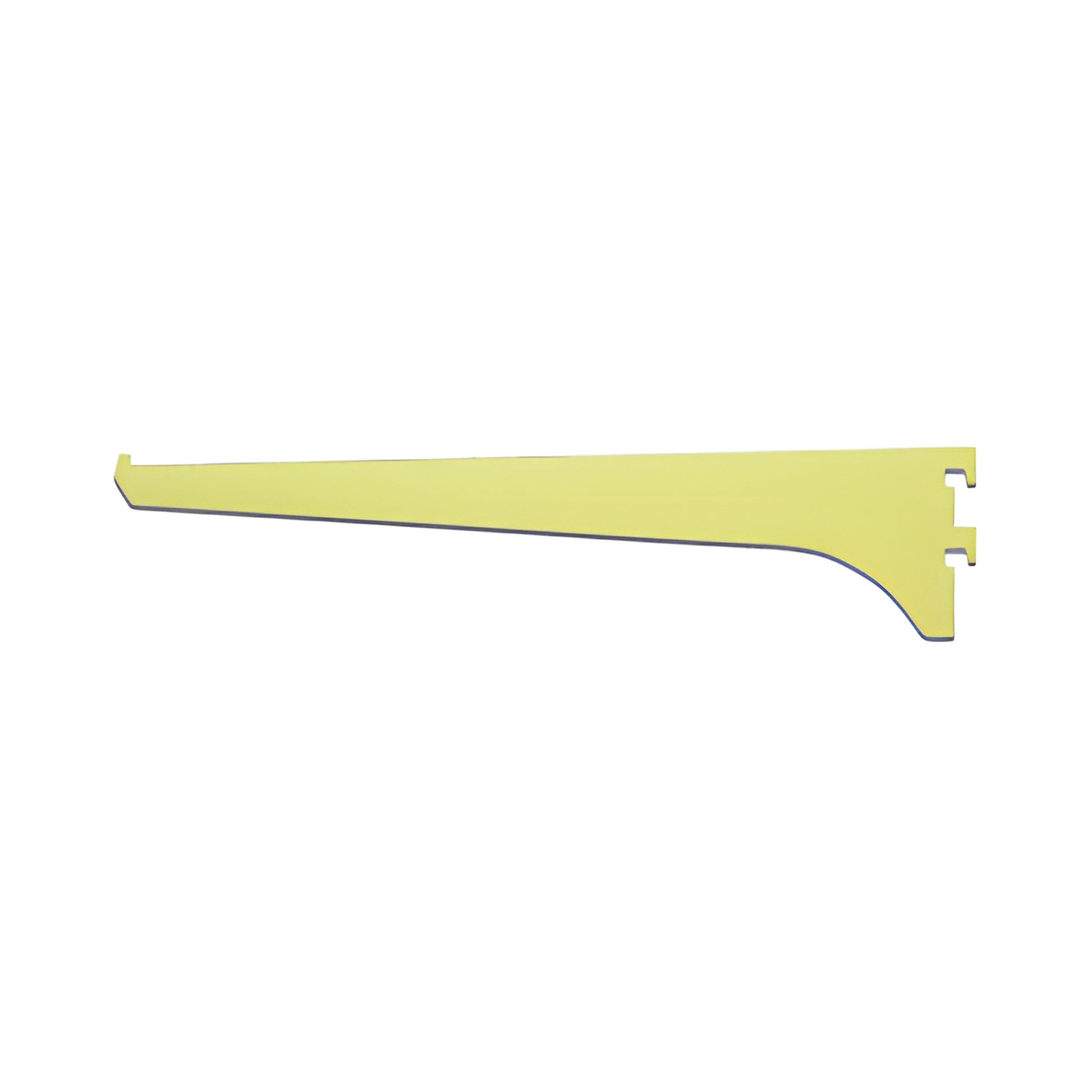

CRL Brite Gold 10 in Anodized Aluminum Mounting Bracket

• CRL Aluminum Brackets (SKU: 122BGA10)
• Five finishes and five shelf-depths: 4", 6", 8", 10", 12" (102, 152, 203, 254, 305 mm)
• Designed for CRL Series 22 and Series 322 aluminum standards — hidden-slot installation (no back flange)

CRL Aluminum Brackets — durable, low-profile shelf supports that slip into the hidden slots of our 22 Series and 322 Series aluminum standards and are secured by lightly tapping the bracket into place. Ideal for glass or wood shelving where a clean, concealed look is required.

Aluminum Bracket Weight Capacities (two standards mounted 16" / 406 mm apart with screws into wall studs):

4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)

Important Product Warning: These Aluminum Brackets are not interchangeable with steel standards or bracket systems from other manufacturers. When installing glass shelves, deduct 1/16" from the glass depth to accommodate the aluminum bracket.

Order SKU 122BGA10 or contact CRL Customer Service for finish availability and lead times.
