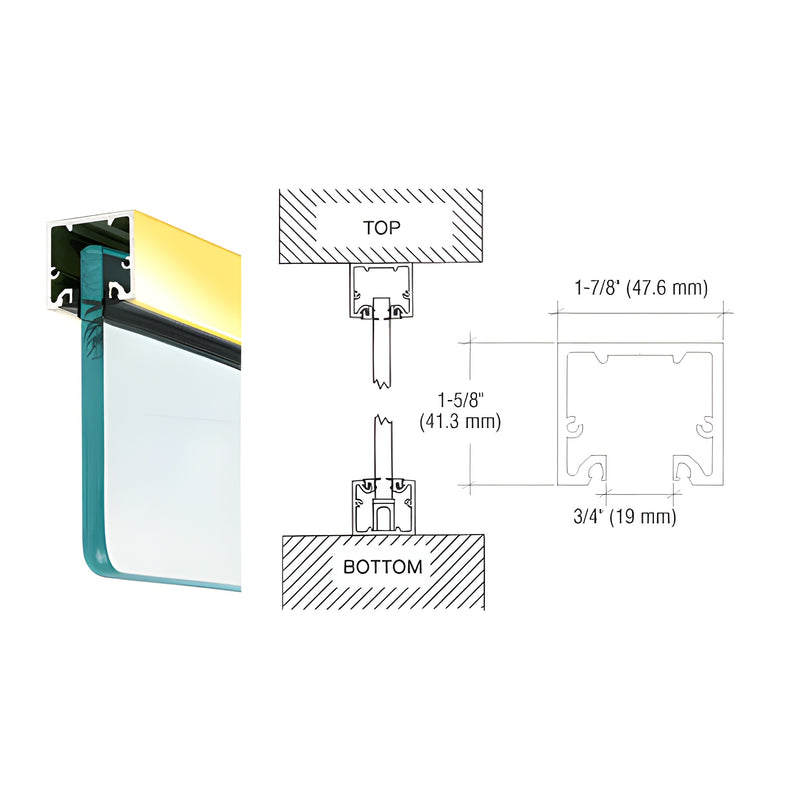

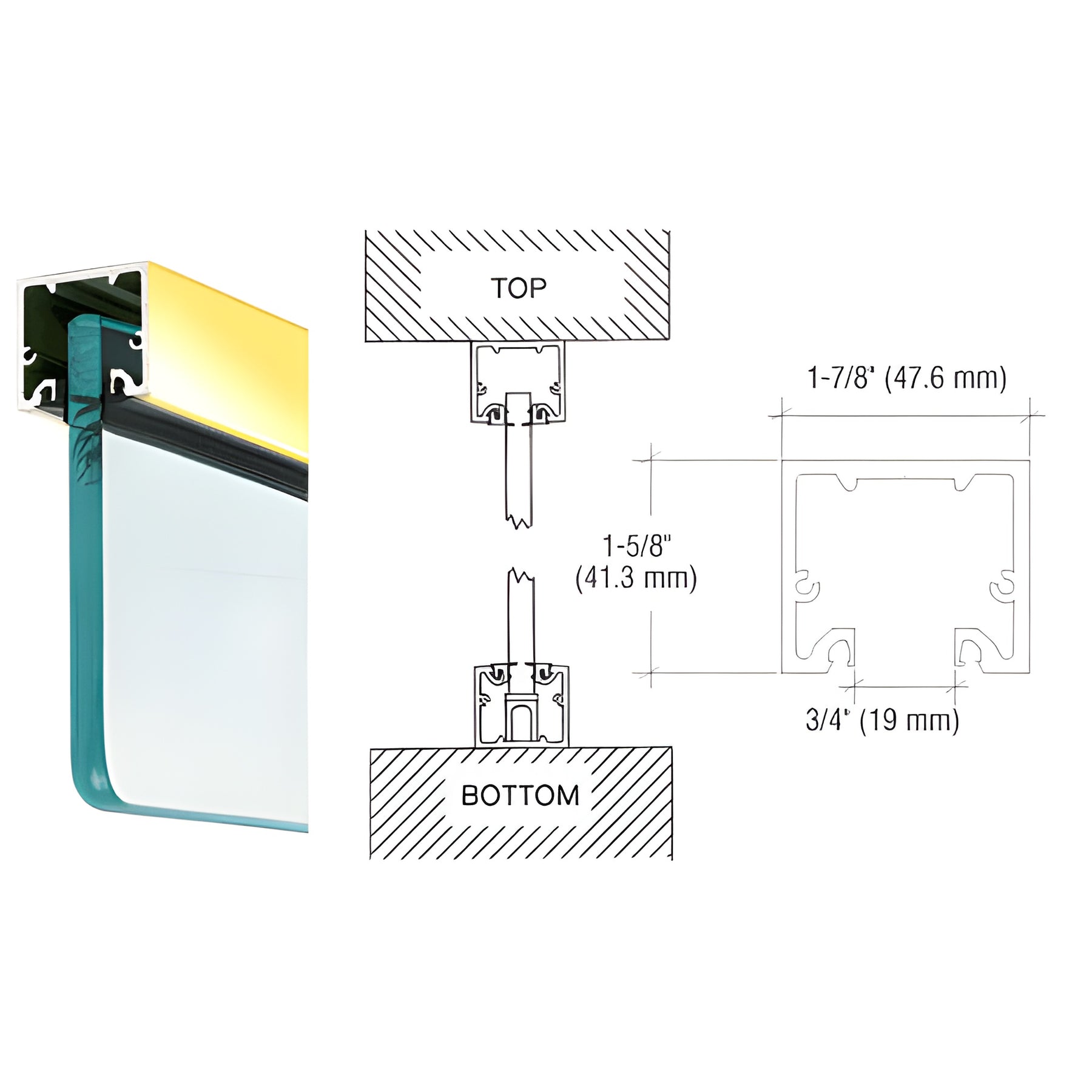

CRL Brite Gold U-Channel for 3/8 & 1/2 Glass - Top-Load Gasket

• Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block, and flush snap-in insert
• Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
• Special sidelite rail adapter enables a continuous sight line when used with the narrow header

This CRL Wide U-Channel and Narrow Header (SKU: NH2BGACL) is designed for storefront and glass door systems where a matching rail width and clean sight line matter. Use as:

• a U-channel that matches our Sidelite and Door Rails for consistent aesthetics;
• a narrow header that accepts a top free-swinging pivot to secure the top of doors;
• an even sight line system by fastening the fabricated narrow header to the opening, then attaching the sidelite rail with the 1/4" (6.4 mm) header saddle.

All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate field fabrication. For technical assistance or questions about narrow headers, U-channels for glass doors, or continuous sight line solutions, contact CRL Technical Sales Department.

Need help specifying NH2BGACL for your project? Contact CRL for quotes and technical support.
