CRL Bronze Anodized 90º Corner Division Bar with Vinyl- 24'

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	CB09022
Pack Size	1
Shipping Limitations	Shipping Quote Required
Finish/Color:	Dark Bronze Anodized
Height	2-1/4 in. (57 mm)
Includes	Vinyl and Screws
Length	24 ft. (7.3 m)
Material	Extruded Aluminum
Screw Size	1/4-20 x 1"
Width	1-3/4 in. (44 mm)

Description

Product Details

Available in Clear Anodized and Bronze Anodized Finishes
Supplied with Vinyl and Screws
Back Bar is Punched 12" (305 mm) on Center

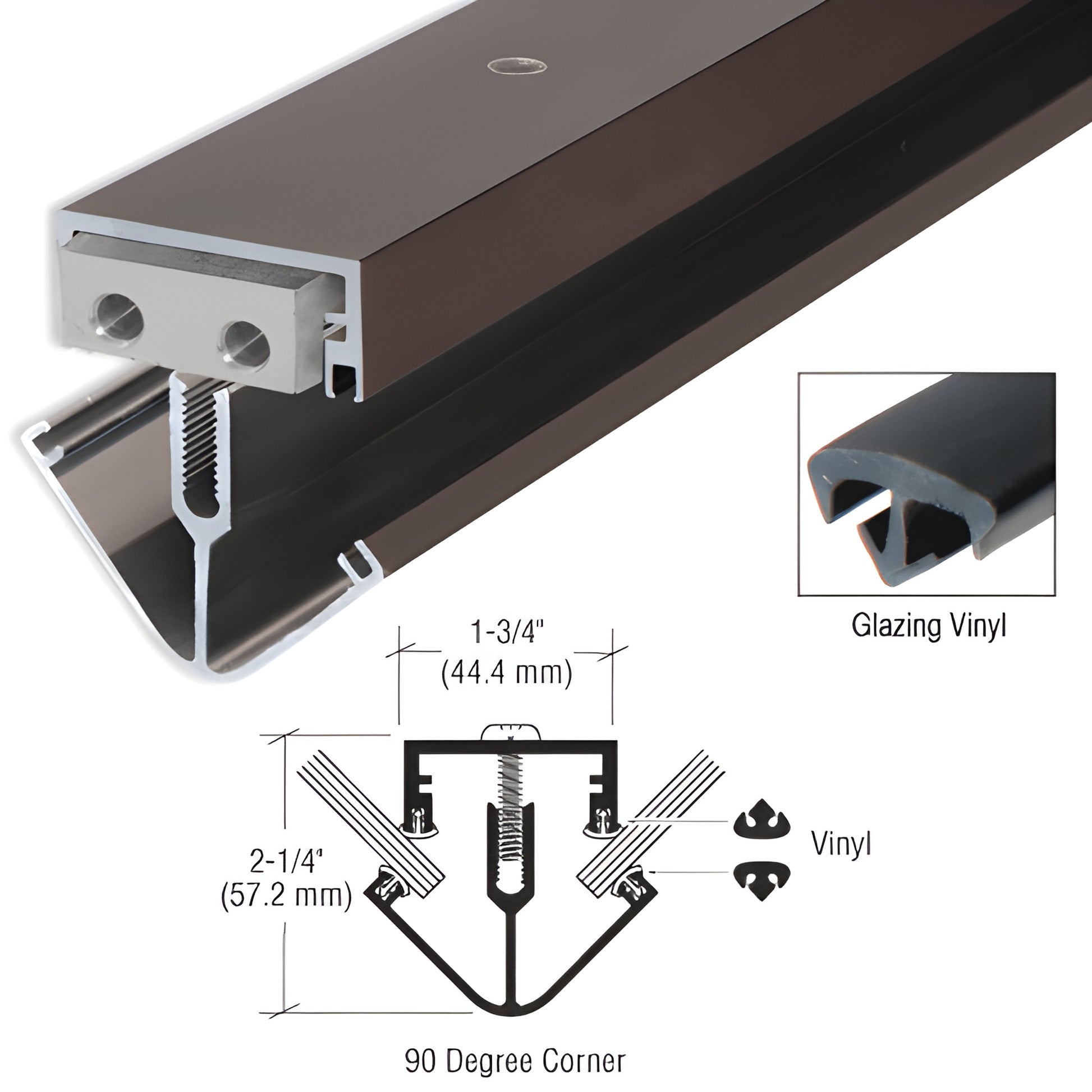

CRL 90º Corner Division Bar is used at corner conditions allowing for the use of two pieces of glass in the opening. This lightweight extruded aluminum division bar consists of a face member which has an extruded spline with threads for receiving exposed fasteners inserted through the back member which has holes drilled in it. The back and face members are screwed together after the glazing infill is installed to form the window. Each piece of CRL 90º Corner Division Bar includes 100' (30.5m) of vinyl and 20 each 1/4-20 x 1" (25.4 mm) Pan Head Phillips Machine Screws.
