CRL S55 Monterey Bronze 4+1 LH Exterior Bi-Fold/Pivot w/ Lever Lock
CRL S55 Monterey Bronze 4+1 LH Exterior Bi-Fold/Pivot w/ Lever Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M5C41F0DUL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
3 Point Keyed Lock
Yes
Door Configuration

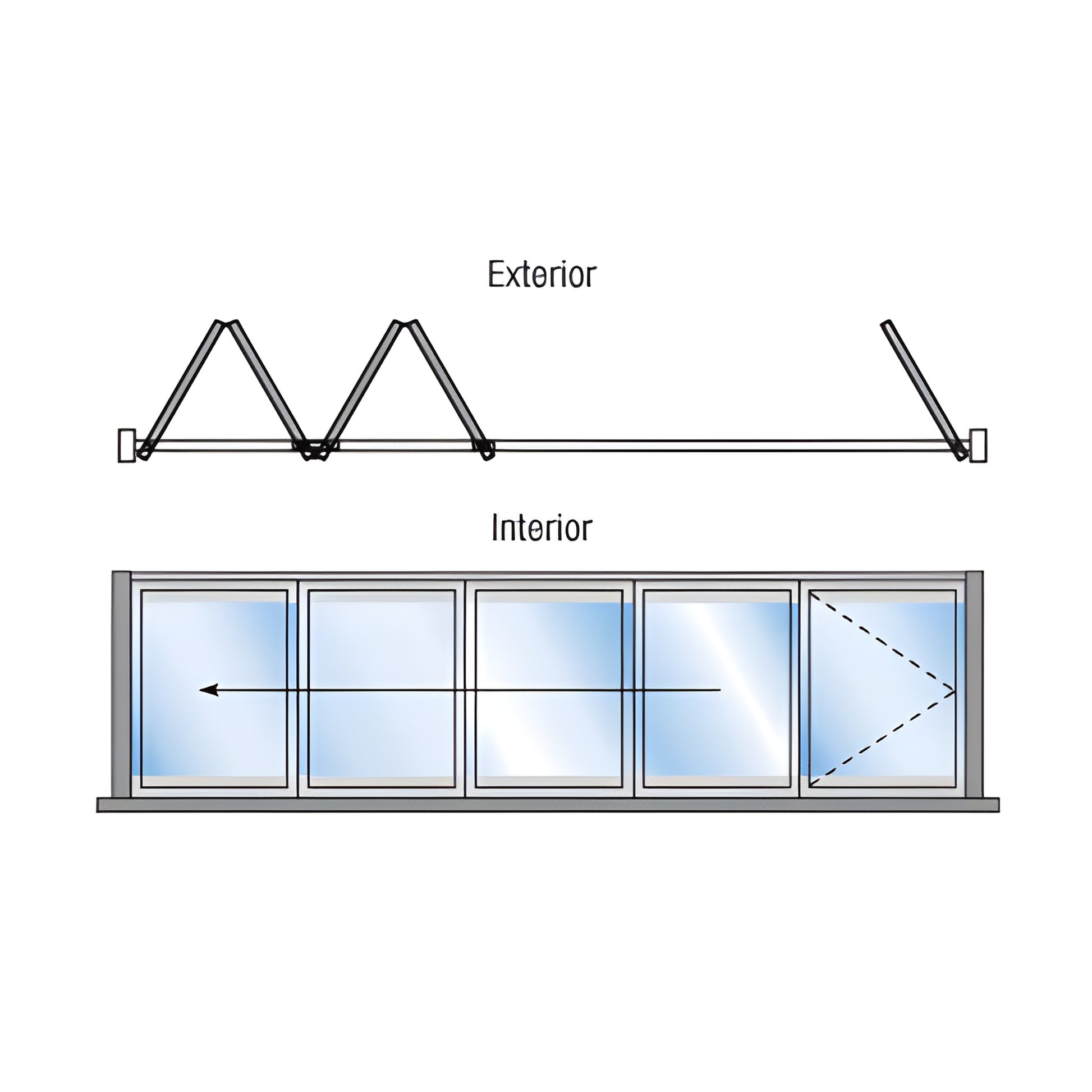

Bi-Fold And Pivot 4+1 Left Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Black Bronze Anodized
Flush Sill
Yes
Glazing Thickness
1/4 in. To 1-1/4 in. (6 mm To 32 mm)
Material
Aluminum
Panel Count
5
Swing
Exterior
Overview
- Weather resistant for exterior use
- Thermally broken option available for improved energy performance
- Suitable for new construction or retrofit — commercial and residential
- Fully assembled and ready for glazing
- Easy-to-operate panels open and close effortlessly
- Standard finishes: White, Black, Wood Grain powder coat; Satin and Black Bronze anodized. Custom colors available
Monterey Bi-Folding Glass Wall System — a precision-engineered bi-folding glass wall that brings the outdoors in while resisting adverse weather. Designed to support multiple panels in a single opening, the system slides smoothly with minimal effort and stacks to one or both sides to create expansive, unobstructed openings. Security features include a two-point interior lever latch as standard, with three-point keyed locks available on select configurations.
Configurations accommodate from 2 to 26 panels and accept glazing thicknesses from 1/4" to 1-1/4" (6 to 32 mm). The slim, sturdy frame maximizes glass area for increased transparency. A pivoting door that folds with the system can be incorporated in many layouts. With a wide range of finish options and custom color availability, the Monterey Series adapts to both residential and commercial applications.
SKU: M5C41F0DUL
Contact us to configure your Monterey bi-folding glass wall system and request pricing or technical details.
Specifications
BIM Objects - rvt
