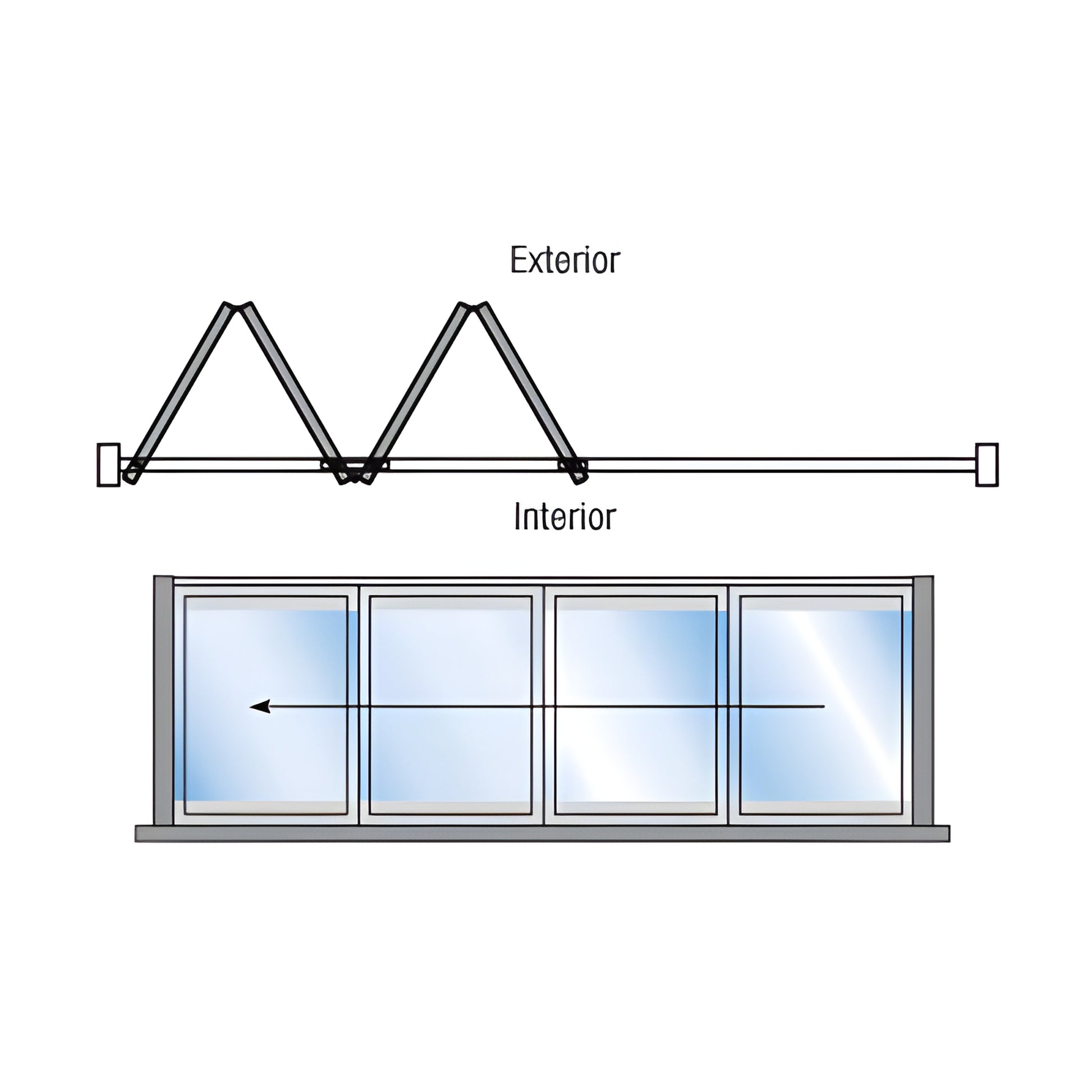

CRL Monterey S55R 4-Panel Bronze Bi-Fold Exterior Door LH Flush Sill
CRL Monterey S55R 4-Panel Bronze Bi-Fold Exterior Door LH Flush Sill
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M6A40F0DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
2 Point Lever Latch
Yes
Configuration
4 Panel Left Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Black Bronze Anodized
Flush Sill
Yes
Frame Depth
2-5/16 in. (59 mm)
Glazing Thickness
3/4 in. (19 mm)
Glazing Type
Tempered Insulated,Tempered Monolithic,Tempered Laminated
Maximum Height Interior Application
120 in. (3048 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Overall Opening Width
77 in. (1956 mm)
Panel Stile Width
2-3/8 in. (60 mm)
Panel Thickness
2-1/8 in. (54 mm)
Series
S55
Swing
Outswing
Top Hung
Yes
Overview
- Weather resistant bi-folding glass wall — designed for interior and exterior use
- Thermally broken option available for improved energy performance
- Suitable for new construction or retrofit in commercial and residential projects
- Fully assembled, ready for glazing
- Easy-to-operate panels with smooth multi-panel support
Monterey Bi-Folding Glass Wall System (SKU: M6A40F0DU) creates expansive indoor-outdoor living with a weather-resistant, precision-engineered bi-folding glass wall. Engineered for smooth operation, the system supports multiple panels in a single opening and stacks to one or both sides to create wide open spans. Standard two-point interior lever latch provides security; three-point keyed locks are available on select configurations. Ideal as a commercial bi-fold sliding door or residential folding glass wall, the Monterey Series delivers more glass and less frame for maximum transparency and contemporary style.
The Monterey Series accommodates 2 to 26 panels and accepts glazing from 1/4" to 1-1/4" (6 to 32 mm). A pivoting door option can be integrated to fold with the system. Standard finishes include white, black, and wood grain powder coat, plus satin and black bronze anodized; custom finishes are available. With slim frame construction and numerous configuration options, the Monterey Bi-Folding Glass Wall is a versatile solution for storefronts, patios, restaurants, and modern homes.
Contact CRL to configure your Monterey Bi-Folding Glass Wall or request a quote today.
Specifications
BIM Objects - rvt
