CRL Bronze Anodized S80R Monterey Thermally Broken Bi-Fold & Pivot 4+1 Left Hand Interior Swing with Raised Sill

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUM8C41R1DU
Pack Size1
2 Point Lever LatchYes

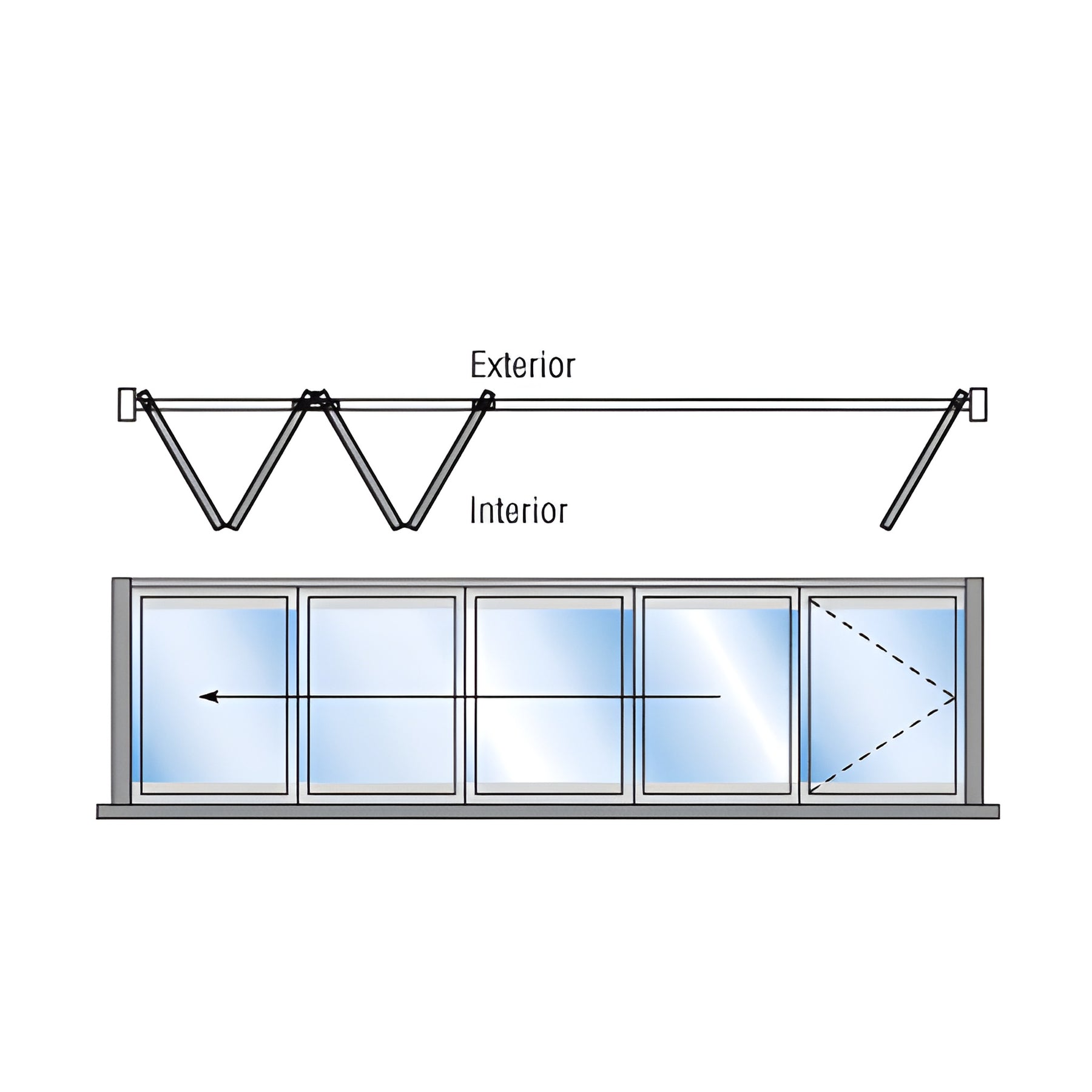

ConfigurationBi-Fold And Pivot 4+1 Left Hand
Door TypeFramed Bi-Folding Doors
Finish/Color:Black Bronze Anodized
Frame Depth2-5/16 in. (59 mm)
Glazing Thickness1-1/4 in. (32 mm)
Glazing TypeTempered Monolithic
Maximum Height Exterior Application108 in. (2743 mm)
Maximum Panel Weight100 lbs. (45.4 kg)
Minimum Overall Opening Width96 in. (2438 mm)
Panel Stile Width2-3/8 in. (60 mm)
Panel Thickness2-7/8 in. (73 mm)
Raised SillYes
SeriesS80
SwingInswing
Thermally BrokenYes
Top HungYes

Description

Product Details

  • Weather Resistant, Designed for Interior Use
  • Thermally Broken Option Available
  • New Construction or Retrofit, Commercial and Residential
  • Fully Assembled, Ready for Glazing
  • Easy to Operate Panels Open and Close Effortlessly
  • White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available

The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.

Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
