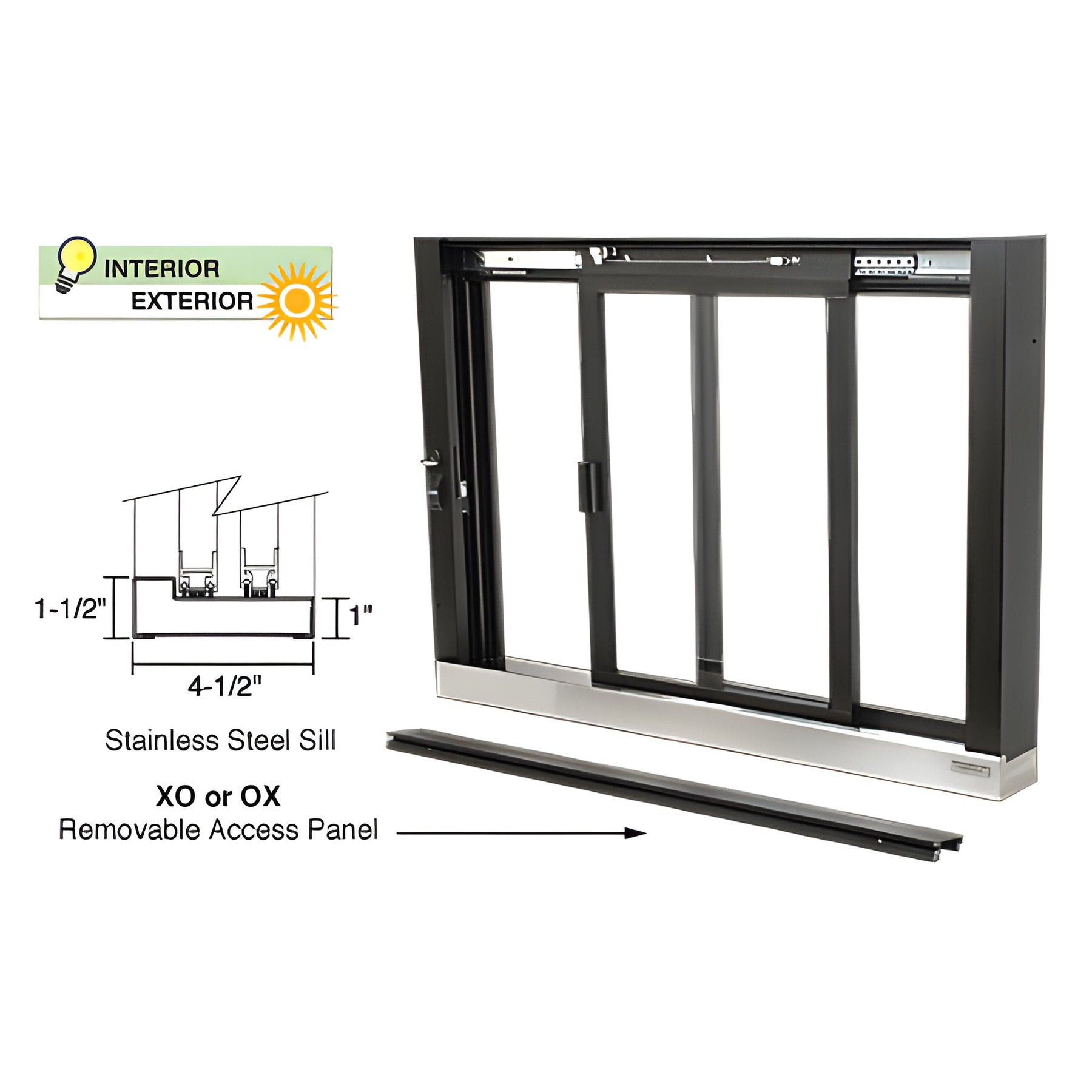

CRL Bronze Deluxe Self-Closing Sliding Service Window w/ SS Sill

• Each unit is custom fabricated to fit the opening
• One fixed and one sliding panel configuration
• Self-closing mechanism and self-latching handle included
• Removable header access panel for easy servicing
• Drawings and specifications are available
• Available in stock and custom finishes

CRL "SCDW" Series Service Windows are heavy-duty, self-closing service windows designed for fast food, retail transaction windows, and other interior or exterior transaction-counter applications. Engineered for high- and low-usage locations, the SCDW series uses quality components for reliable, trouble-free self-closing operation and smooth sliding action.

Since each SCDW unit is custom built to your project specifications, we collaborate with you to determine glazing, sill, and frame requirements. Our transaction hardware specialists help select options and finishes to meet performance needs and aesthetic preferences.

For additional information or to request drawings and lead times, contact the CRL Technical Sales Department.

SPECIFICATIONS:
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf or sill
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or Kynar paint
Glazing Options: 1/4" to 1/2" (6 to 12 mm) tempered, laminated, or tinted glass; 1/2" (12 mm) insulating glass unit
Option: Fly fan switch
To determine rough opening: Add 1/2" (12 mm) to width; add 1/4" (6 mm) to frame height, including track, sill or shelf.

NOTE: 26" (660 mm) is the minimum frame width for SCDW Series windows.


SKU: SCDW1803DU
Call CRL Technical Sales to specify a custom SCDW service window for your project today.
