CRL Brushed Bronze 90° Glass-to-Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Secures fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Provides an all-glass look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

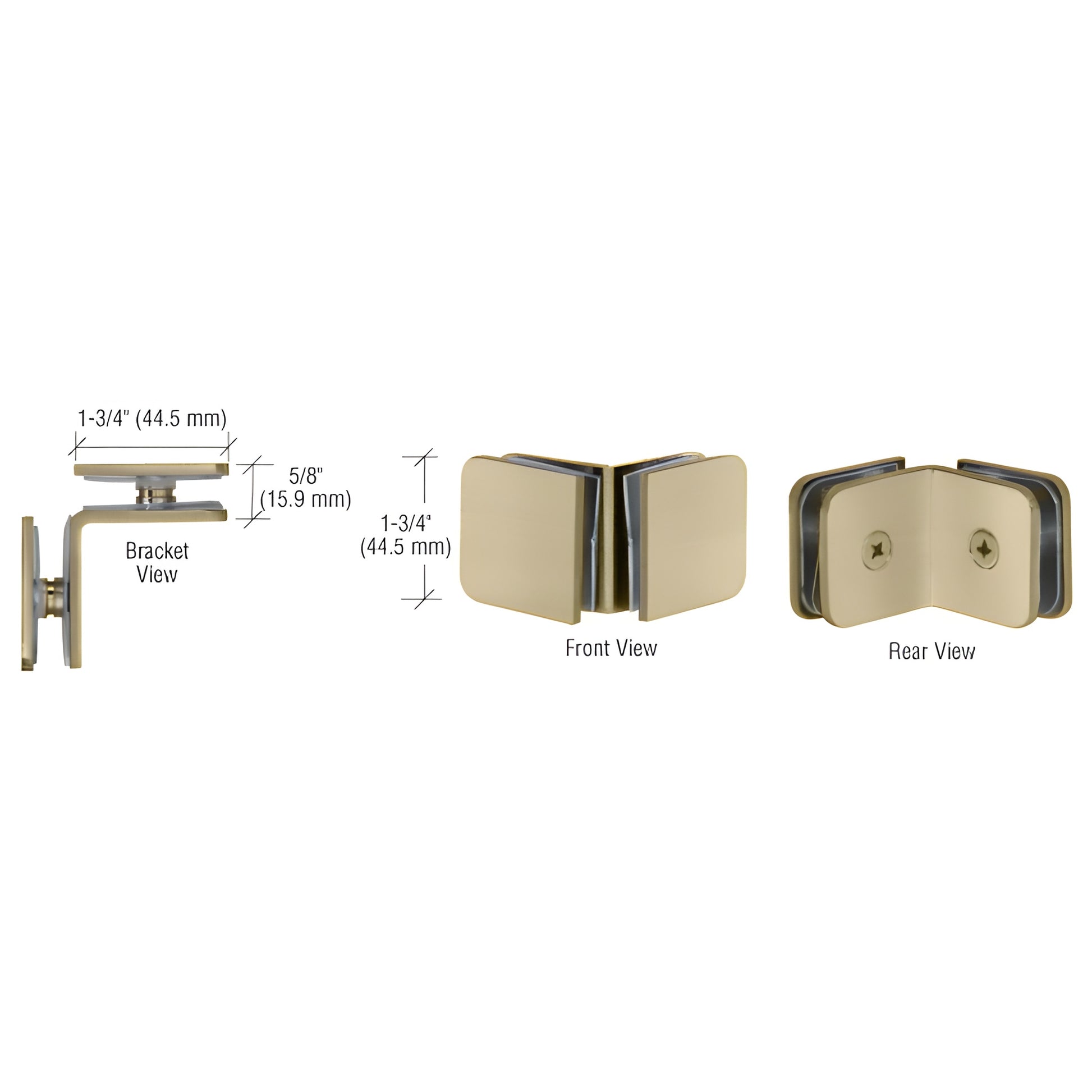

A versatile CRL Standard 90 Degree Glass Clamp (SKU: GCB90BBRZ) with two primary uses: as a 90° clamp for vertical fixed panels in frameless shower enclosures and as a bracket for horizontal glass shelves. The clamp design allows flush mounting of shelves to the wall or adjoining panels to meet with a minimal gap, supporting a clean, contemporary shower appearance.


Our solid brass Traditional Glass Clamps secure glass panels in contemporary and custom frameless shower systems. They maintain the frameless aesthetic better than U-channel and are available in finishes that coordinate with our shower door hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra Cat. No. UCG77 clear gaskets are available separately.

SPECIFICATIONS:
Materials: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Gaskets and wood screw for wall-mount application
Replacement Hardware: CRL P612 for replacement screws
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).


Order the GCB90BBRZ solid brass frameless shower glass clamp today to complete your custom enclosure or glass shelving project.
