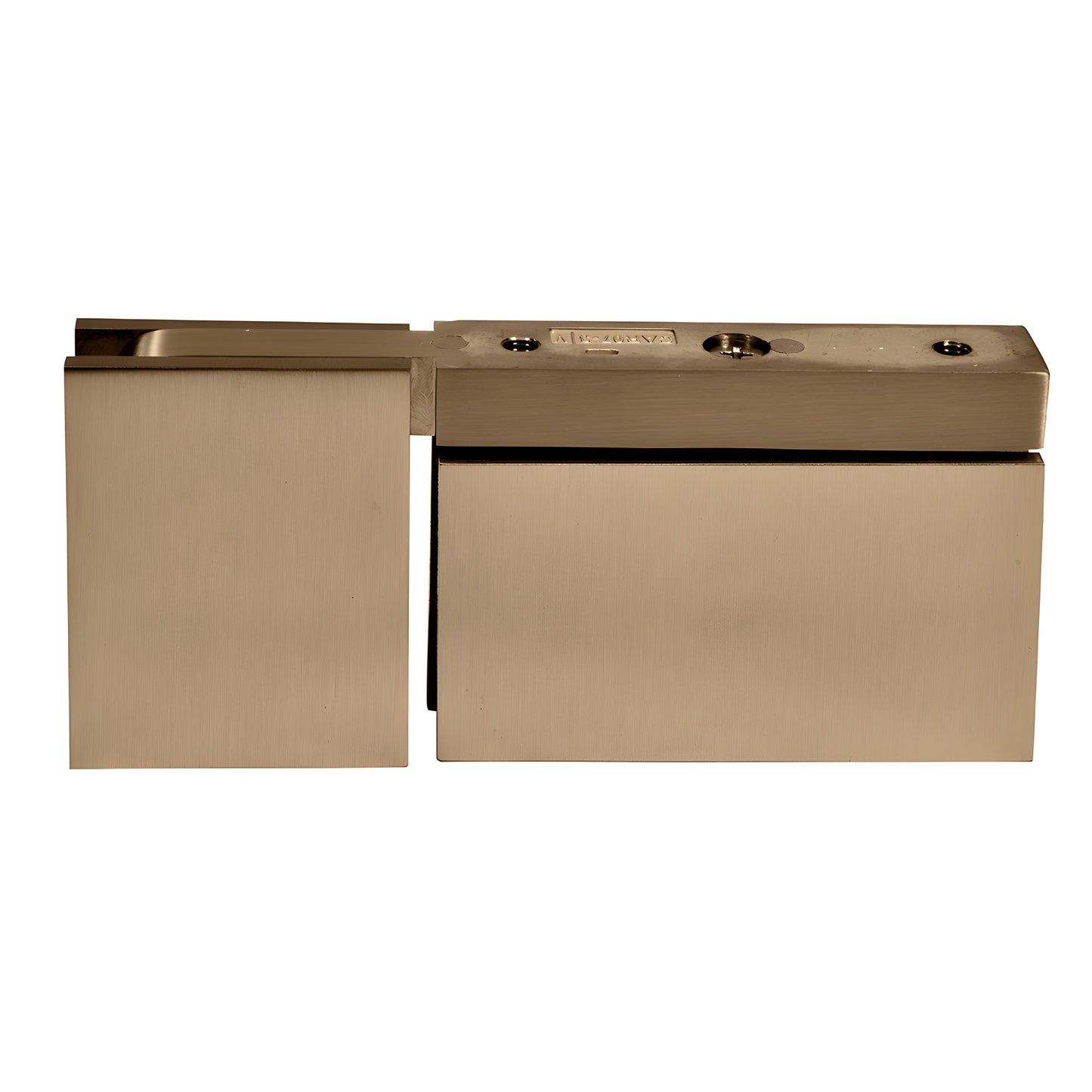

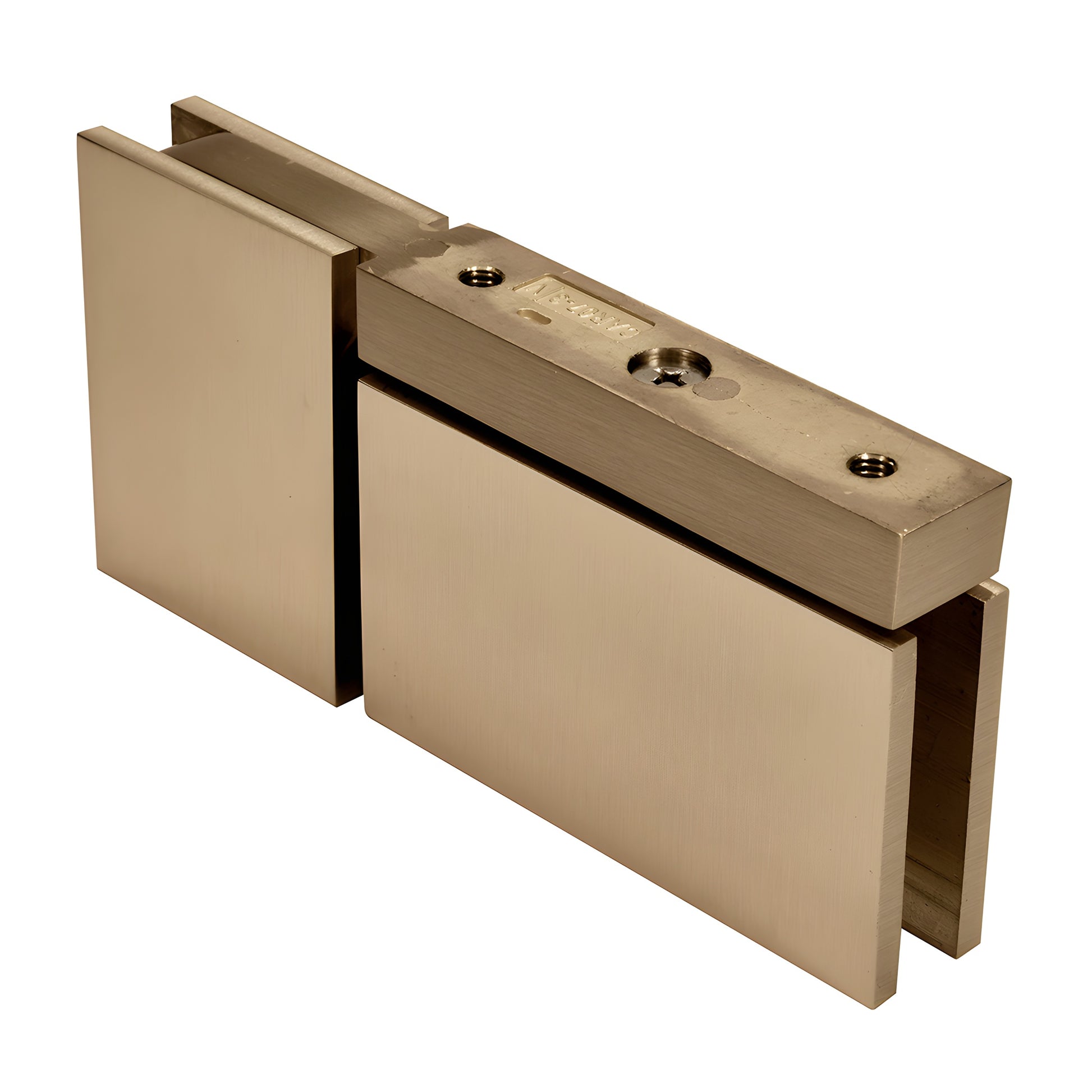

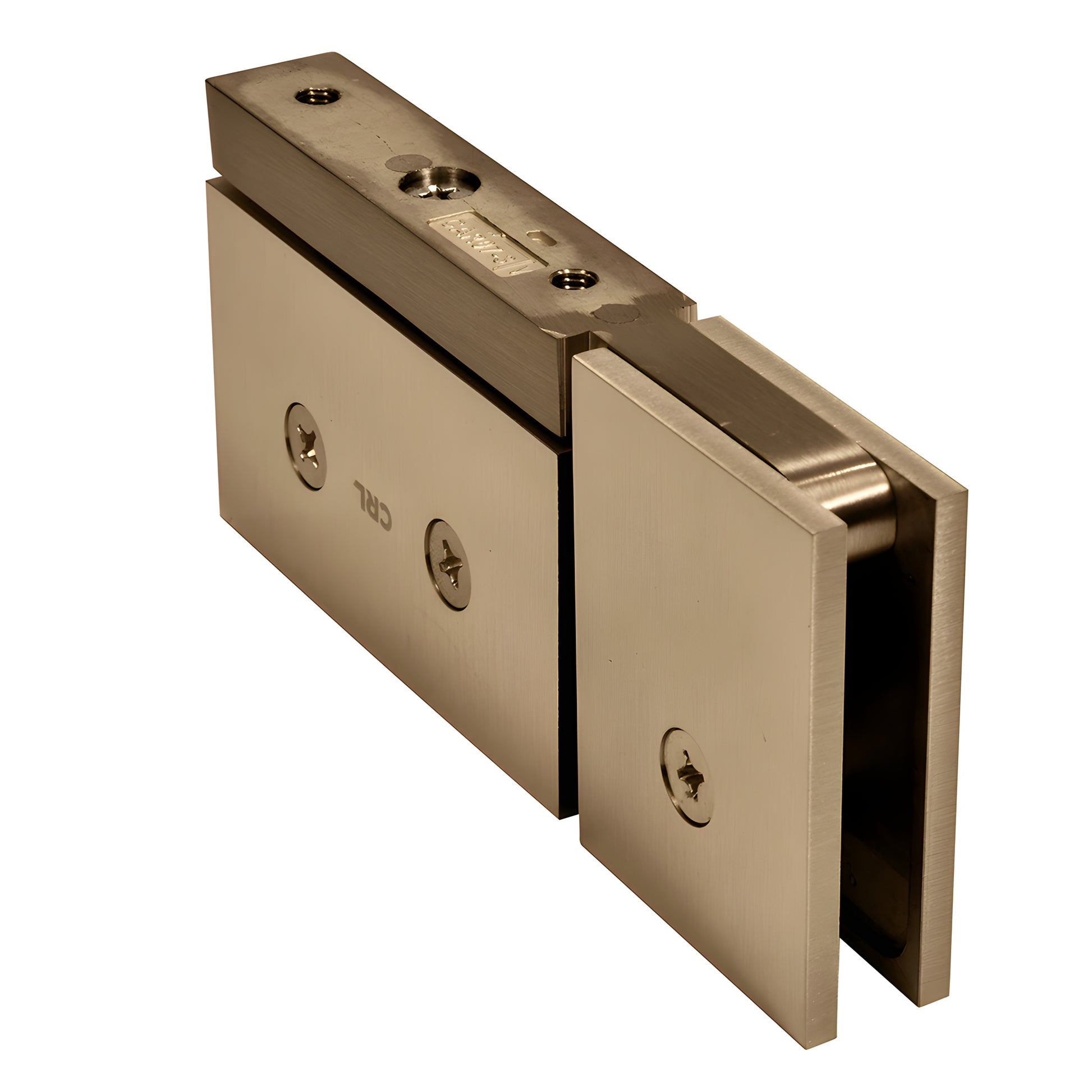

CRL Cardiff Brushed Bronze Glass Door Pivot Hinge U-Clamp Top/Bottom

• Top or bottom mount pivot hinge with attached U-clamp
• Alternative to traditional horizontal metal header systems across the enclosure
• 3 Year Warranty
• U.S. Patent 5,297,313
• Can be mounted at bottom of door and adjacent panel for symmetry
• Fits 5/16" and 3/8" (8 and 10 mm) thick tempered safety glass
• Stocked in seven popular finishes; custom finishes available
• Design and installation criteria available; use with monolithic tempered glass

CRL Cardiff Series Pivot Hinges (SKU: CAR07BBRZ) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and offer versatile mounting options for frameless shower doors and glass enclosures. Unlike standard side-mount hinges, the top-and-bottom mount and U-clamp design shows more glass, reduces required cut-outs, and provides clearance for towel bars and wall projections. These solid-brass, self-centering hinges use four springs for maximum retention strength and carry the bulk of the weight at the bottom for stable operation. Optional 5º pre-set pivot pin sets (sold separately) let you adjust the closing position by 5º. The Cardiff Series is compatible with our Deluxe Header System for enclosures that don’t extend to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) — sold as a set of two (top and bottom). May be installed prior to or retrofitted after hinge installation. Not included with hinge purchase.

Using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), each hinge set will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass

Special Features: Top-and-bottom mount shows more glass and reduces cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor & ceiling or floor & header.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering when within 15º of closed position

Includes: Gaskets, screws, and glass fabrication dimensions

Patented: U.S. Patent No. 5,297,313
