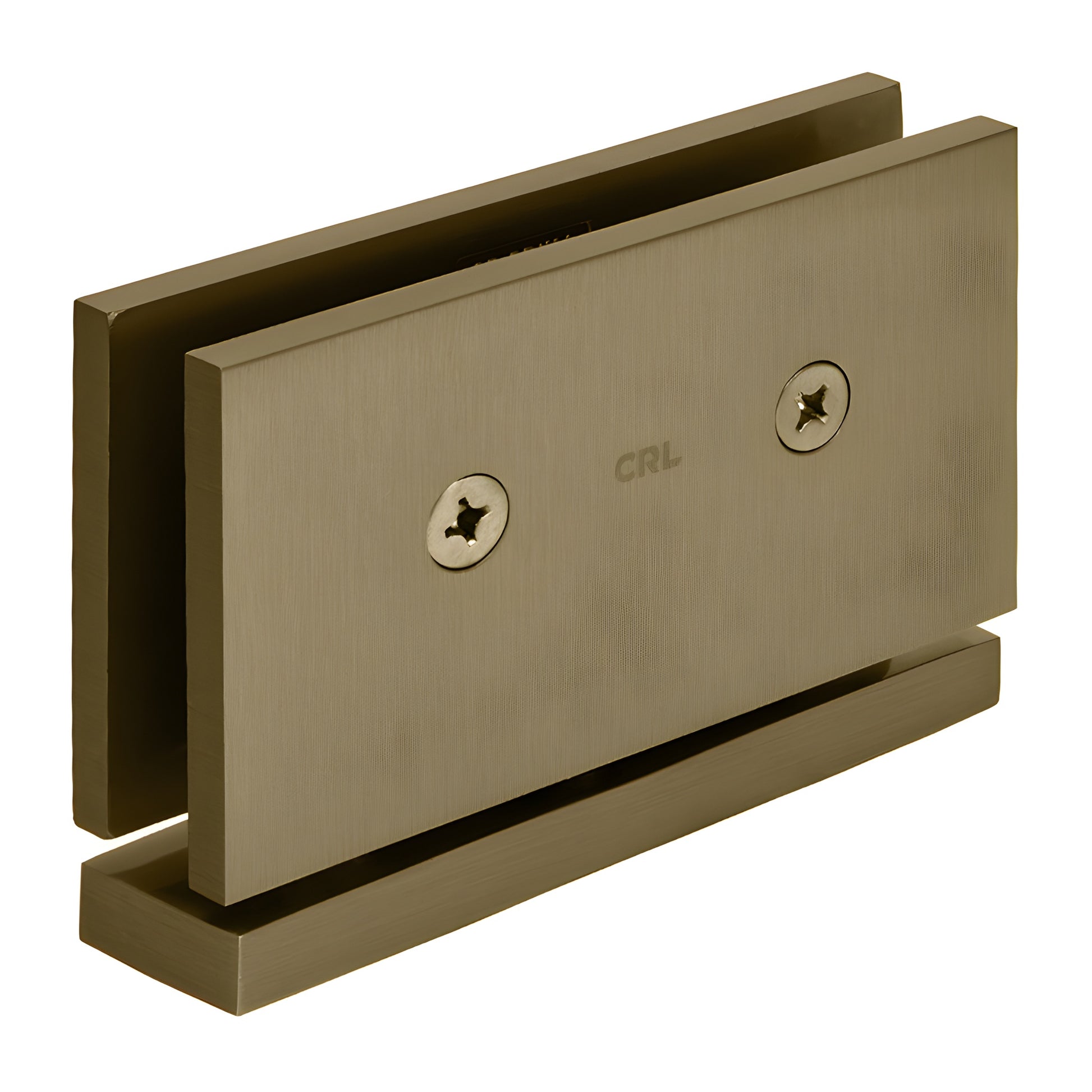

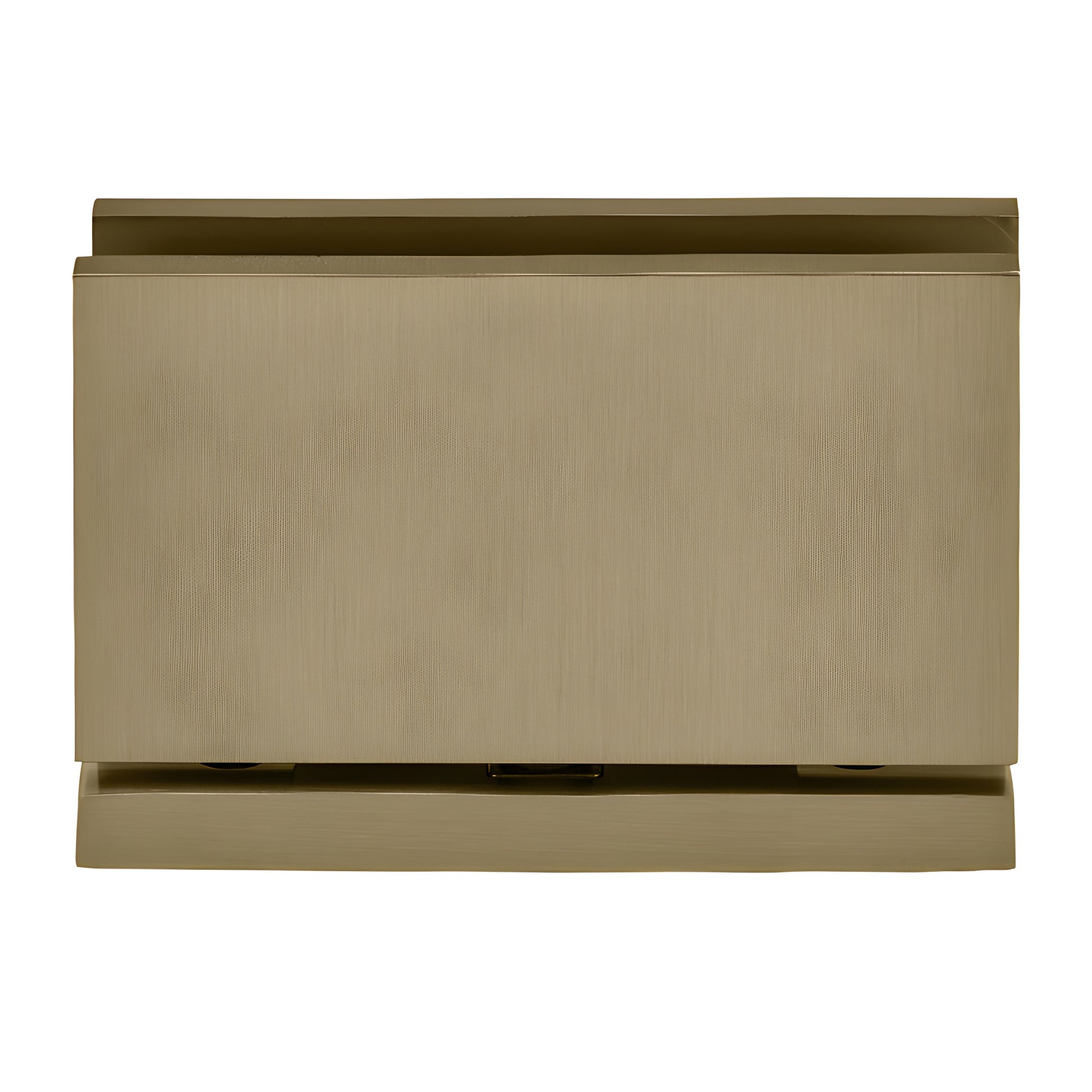

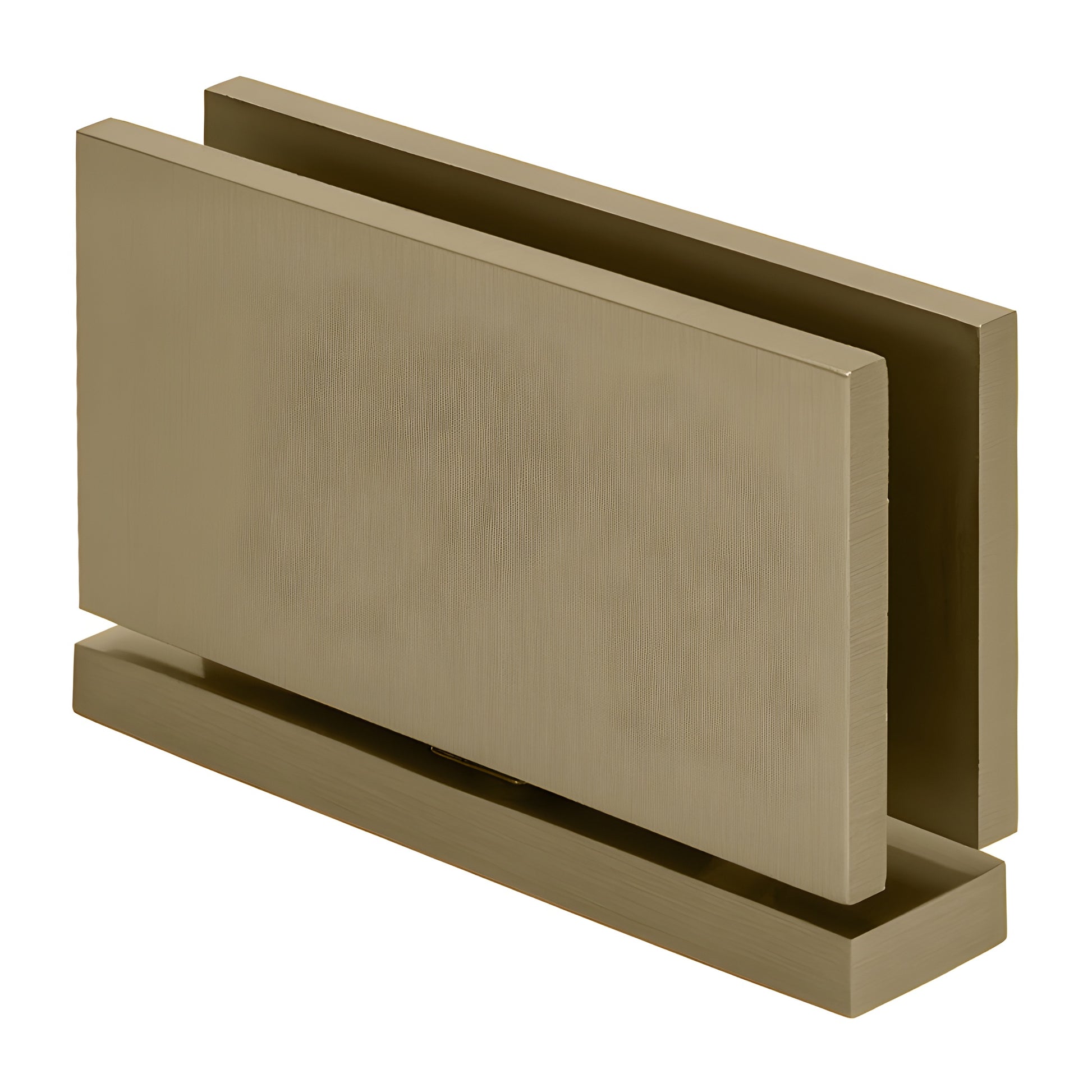

CRL Cardiff Series Brushed Bronze Senior Door Hinge

• Top or Bottom Mount — adapts to CRL Deluxe Header Kit
• Larger version of the Cardiff Series to accommodate 1/2" (12 mm) tempered safety glass
• Square corners for a sharp, traditional look
• Designed for monolithic tempered glass installations
• Adaptable to CRL Deluxe Header System with Senior Adapter Block (SRHAB01 sold separately)
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges (SKU: SRCAR01BBRZ) are precision-engineered pivot hinges for 1/2" (12 mm) tempered safety glass shower doors. These solid brass hinges are top-and-bottom mounted to concentrate the majority of door weight on the bottom hinge and can be inset from the door edge to allow clearance for towel bars and other projections — a practical long-tail solution for frameless shower door installations that reduces glass cut-outs and fabrication costs compared with side-mount glass-to-glass hinges.

Senior Cardiff hinges are self-centering with four strong internal springs for maximum retention strength and reliable closing performance. They are adaptable to CRL’s Deluxe Header System using the Senior Adapter Block (SRHAB01) and can alternatively be floor-and-ceiling mounted for full-height doors.

Performance: Using two hinges with 1/2" (12 mm) glass, the assembly will support up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

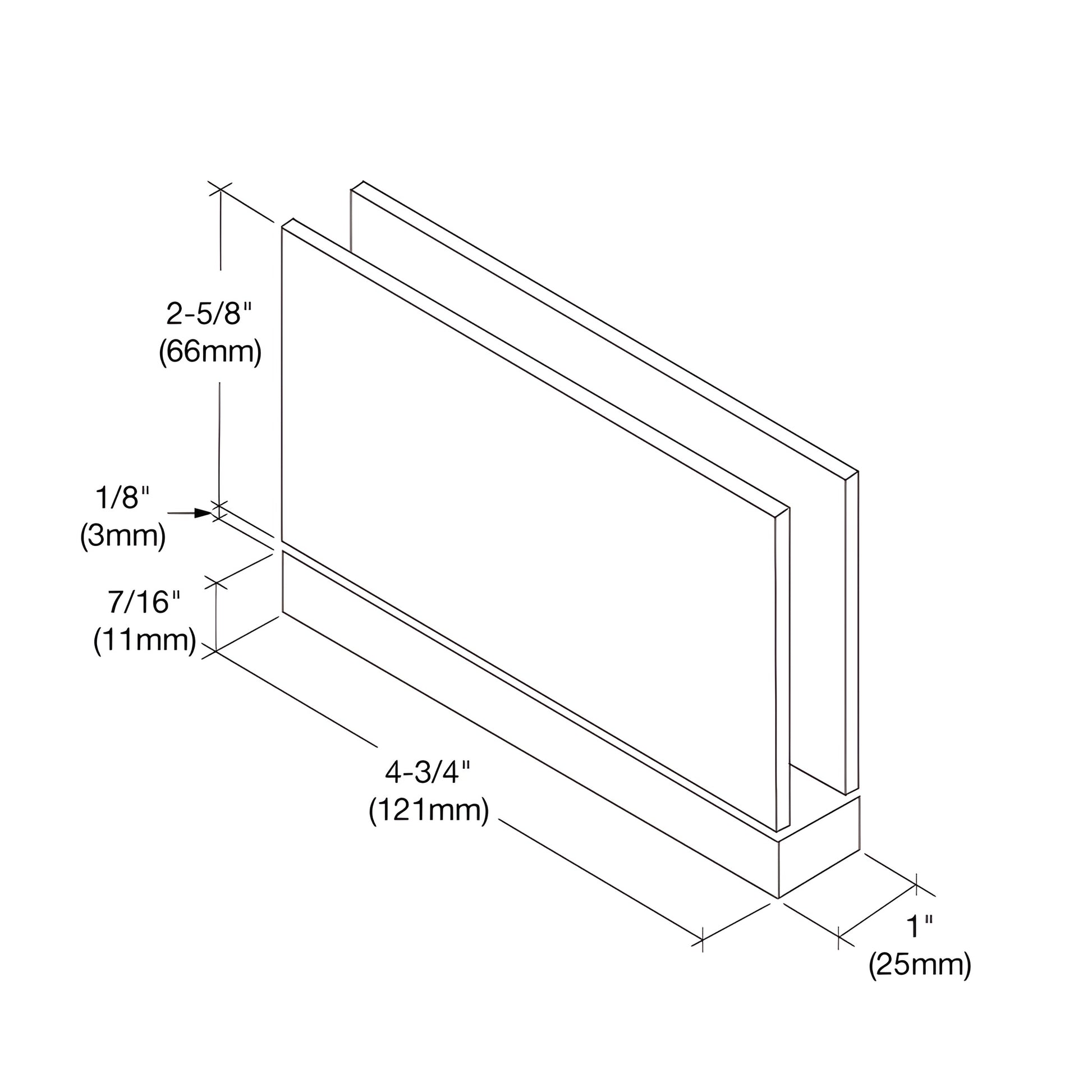

SPECIFICATIONS:

• Glass Thickness: 1/2" (12 mm) tempered safety glass
• Special Features: Top and bottom mount increases visible glass area and can lower glass fabrication costs versus side-mount hinges
• Construction: Solid brass
• Hinge Swings: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Cut-Out: Required — use the included template (cut-outs may differ from other brands)
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: Patented (Patent No. 5,297,313)

Optional: For a tighter 5° closer, use SRP1VP1N 5° pivot pins (sold separately) — one for the top hinge and one for the bottom hinge.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For use outside these applications, obtain approval from the CRL Shower Door Technical Sales Department. Always use the supplied template when fabric
