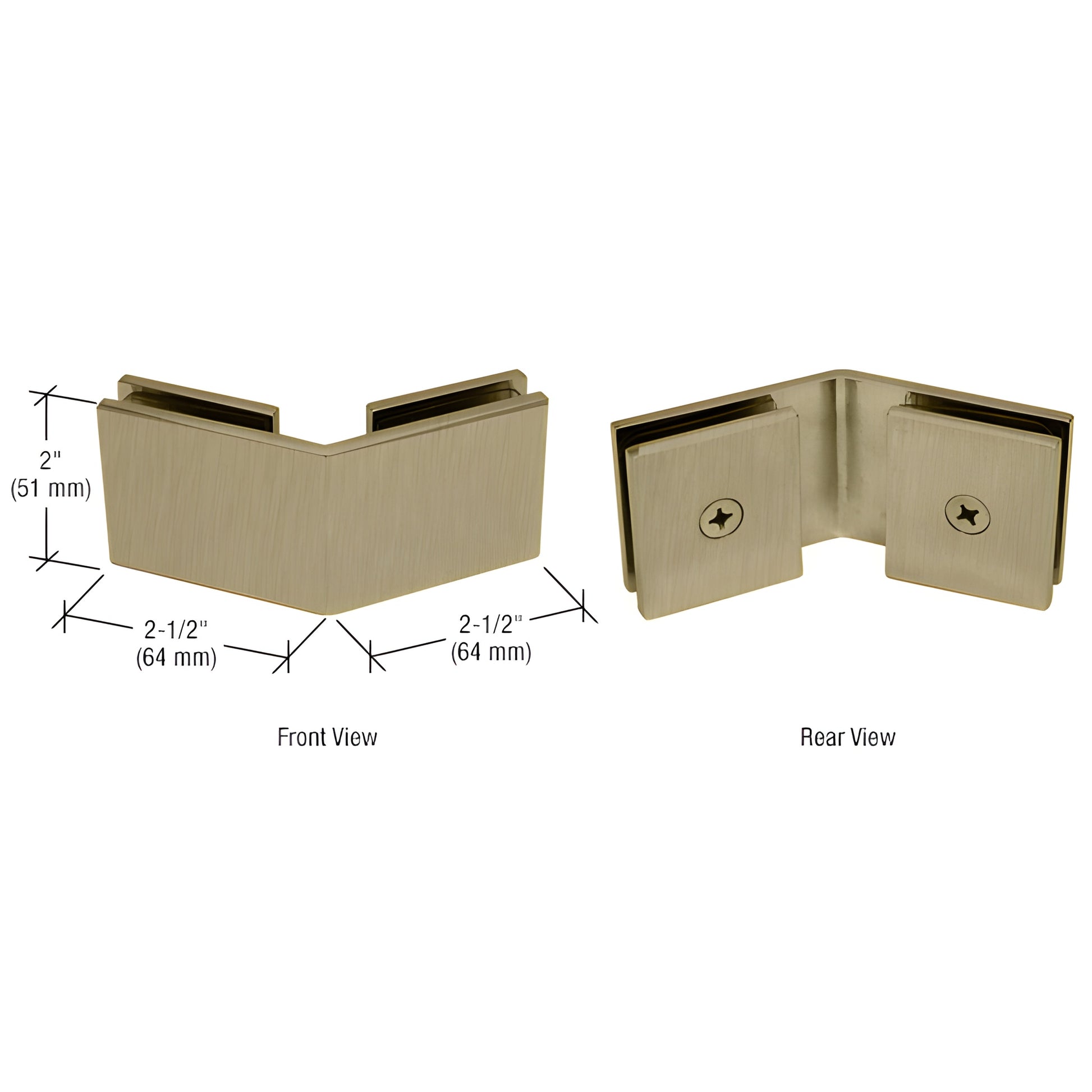

CRL Brushed Bronze Square 135° Glass-to-Glass Clamp for Shower Doors

• For 5/16" to 1/2" (8 to 12 mm) glass
• Used to secure fixed panels of glass for frameless shower enclosures and all-glass partitions
• Solid brass construction
• A sleek alternative to U-channel—clamps preserve an "all-glass" appearance
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

CRL Square 135 Degree Glass-to-Glass Clamps (SKU: SGC135BBRZ) feature sharp corners and are designed to join two panels at 135 degrees. The glass can be mitered or flat-edged. Ideal for frameless shower enclosures, custom showcase displays, trophy cases, and storefront or office glass partitions, these solid brass 135° glass-to-glass clamps provide an elegant, durable solution for all-glass designs. Available in multiple finishes to match designer hardware. Drawings and templates available. Made of solid brass and engineered to remain beautiful for years with proper care and cleaning.

NOTE: Replacement gasket is Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
